146 electrical system diagnosisComponents and Connectors (cont.d)

Components and Connectors (cont.d)

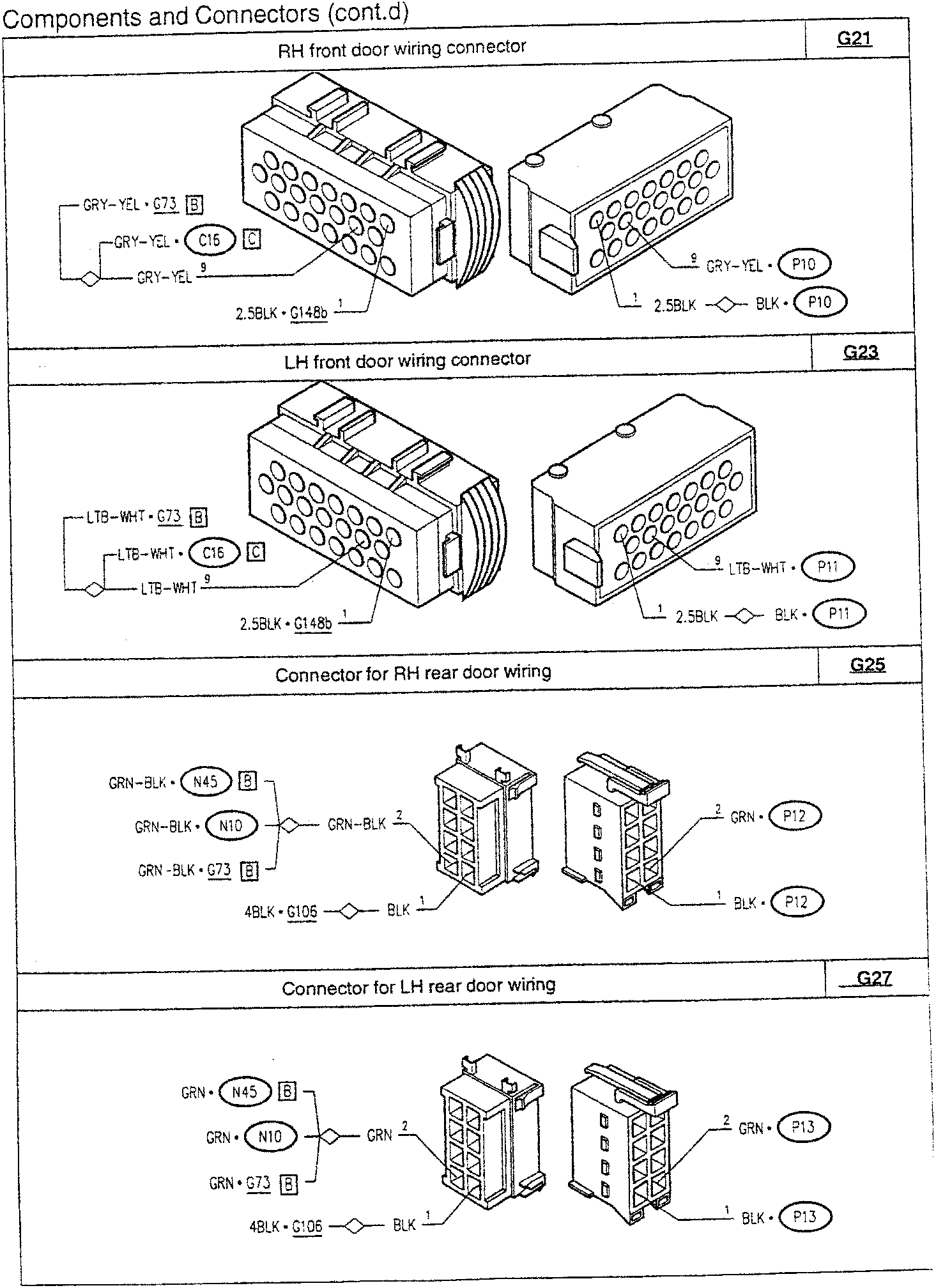

RH front door wiring connector G21
RH front door wiring connector diagram showing G21, C16, P10, and wire colors GRY-YEL, 2.5BLK, BLK
LH front door wiring connector G23
LH front door wiring connector diagram showing G23, C16, P11, and wire colors LTB-WHT, 2.5BLK, BLK
Connector for RH rear door wiring G25
Connector for RH rear door wiring diagram showing G25, N45, N10, G73, P12, and wire colors GRN-BLK, 4BLK, BLK
Connector for LH rear door wiring G27
Connector for LH rear door wiring diagram showing G27, N45, N10, G73, P13, and wire colors GRN, 4BLK, BLK
