COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Sidelights › COMPONENTS AND CONNECTORS (cont.d)

146 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

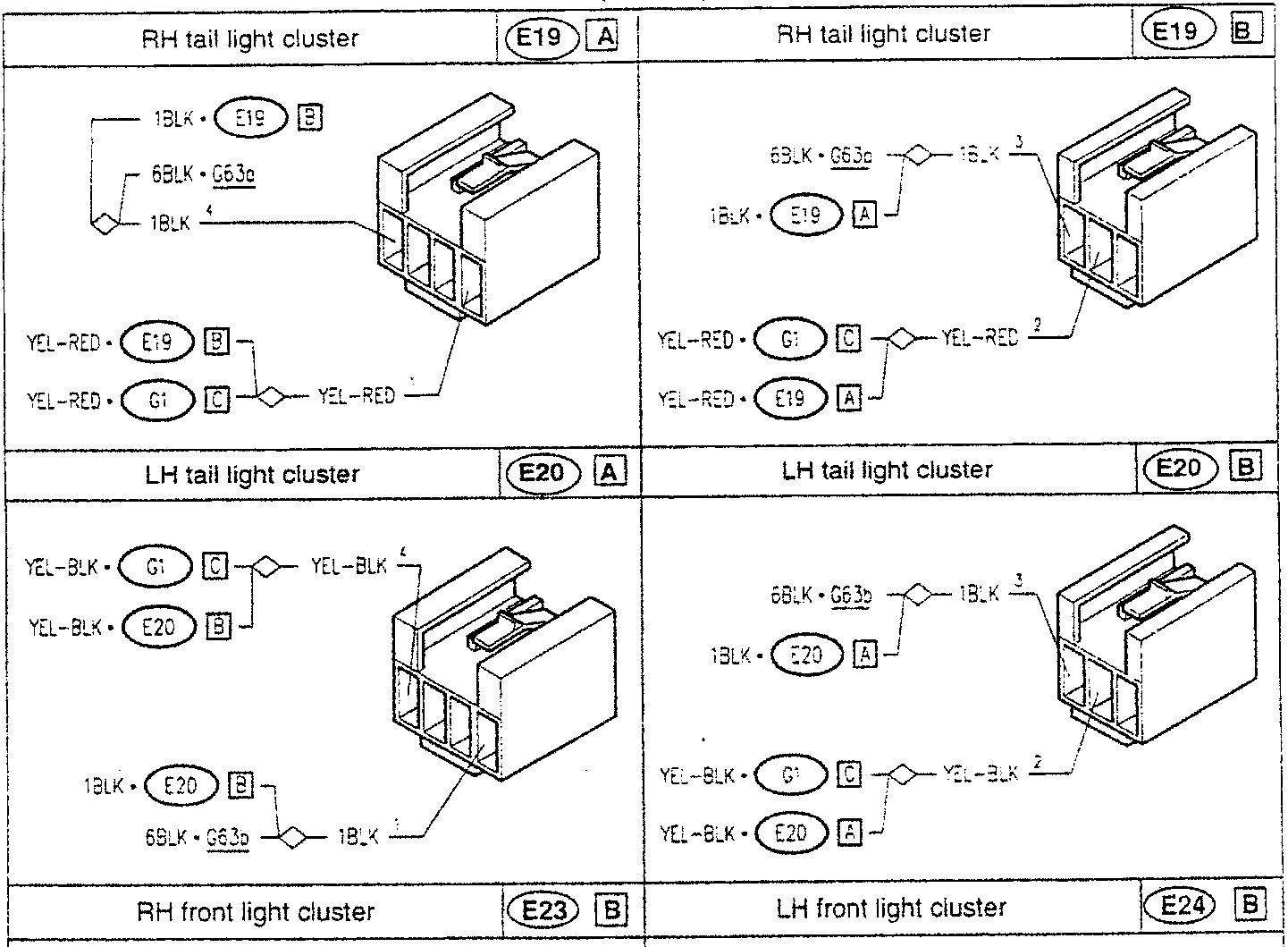

F1	RH tail light cluster [E19 A]	RH tail light cluster [E19 B]
			YEL-RED • E19 B	YEL-RED • G1 C	YEL-RED • E19 A
			YEL-RED • G1 C	YEL-RED • E19 A
			YEL-BLK • G1 C	YEL-BLK • E20 B	YEL-BLK • E20 A
			YEL-BLK • G1 C	YEL-BLK • E20 A
			YEL-RED • G1	1BLK • G53c
			YEL-BLK • G1	1BLK • G53c

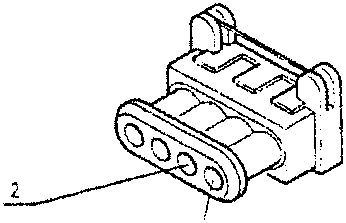

F2	Front light cluster connector diagram with wire connections labeled 1YEL-BLK, 1YEL-BLK, and 1BLK-G53c.
			1YEL-BLK • G1	1BLK • G53c

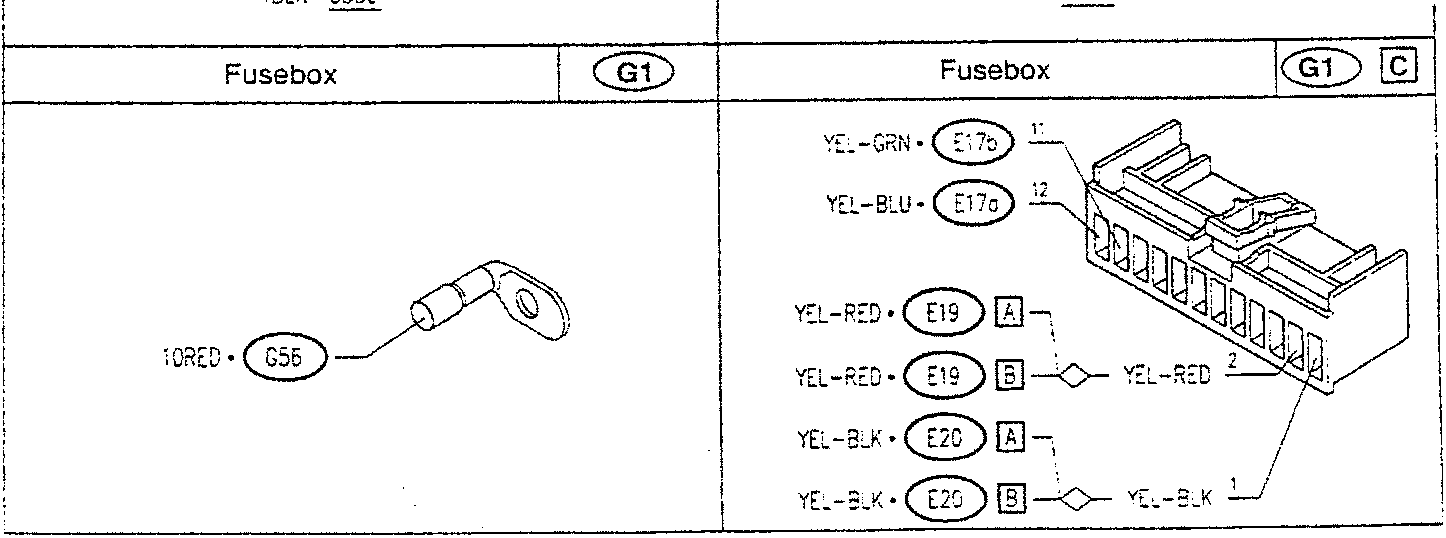

F4	Fusebox [G1]	Fusebox [G1 C]
			10RED • G56
			YEL-GRN • E17b	YEL-BLU • E17a	YEL-RED • E19 A	YEL-RED • E19 B	YEL-BLK • E20 A	YEL-BLK • E20 B
