146 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

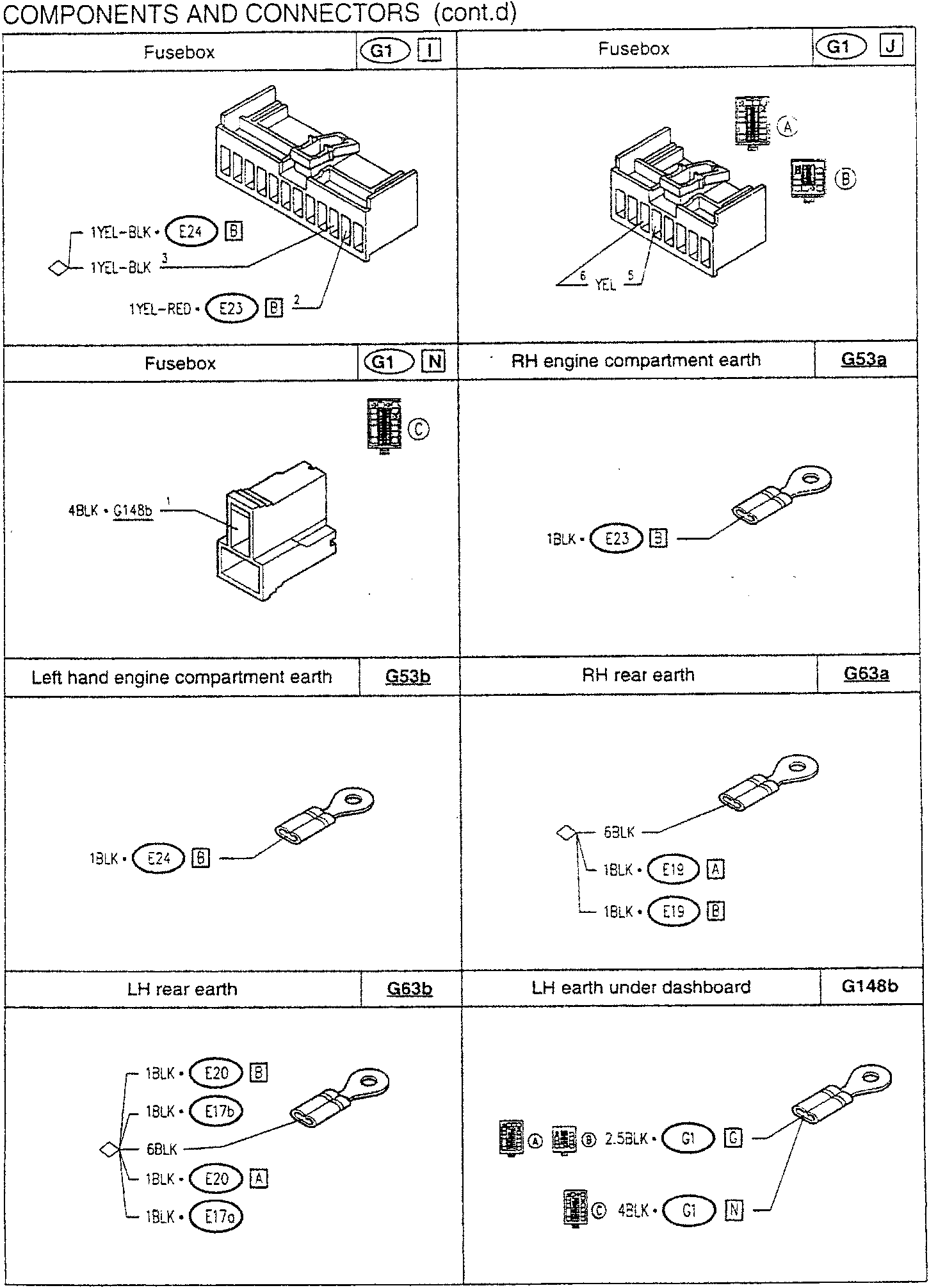

COMPONENTS AND CONNECTORS (cont.d)
| Fusebox | G1 I | Fusebox | G1 J |
|---|---|---|---|
| Fusebox | G1 N | RH engine compartment earth | G53a |
| Left hand engine compartment earth | G53b | RH rear earth | G63a |
| LH rear earth | G63b | LH earth under dashboard | G148b |
