146 bodyworkRear bumper

REAR BUMPER

REMOVAL

  • Raise the car just enough to gain access to the side screw fastening the left-hand wheelhouse.

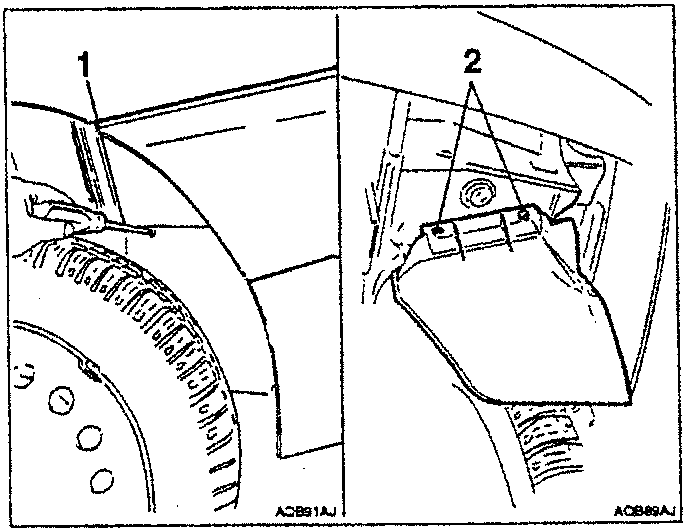

  1. Slacken and remove the side screw fastening the left-hand wheelhouse.
  2. Slacken and remove the upper wheelhouse fastening nuts (one for the left-hand wheelhouse and one for the right-hand wheelhouse).
Diagram showing removal of side screw and upper wheelhouse nuts

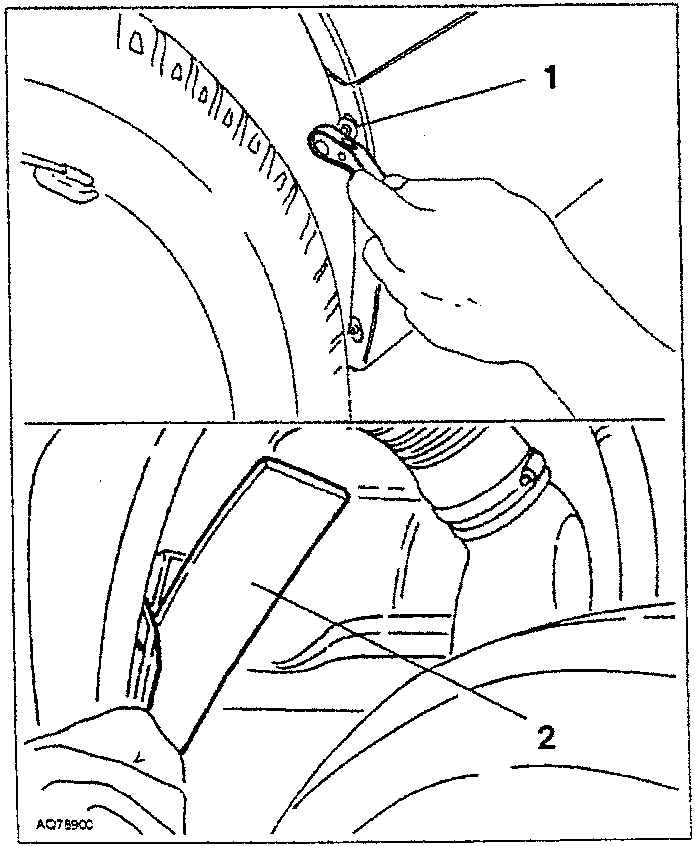

  1. Using ratchet wrench 1.822.132.000, slacken and remove the four screws fastening the left-hand and right-hand wheelhouse to the bumper.
  2. Prise and remove the wheelhouse; lower the car.
Diagram showing removal of wheelhouse screws

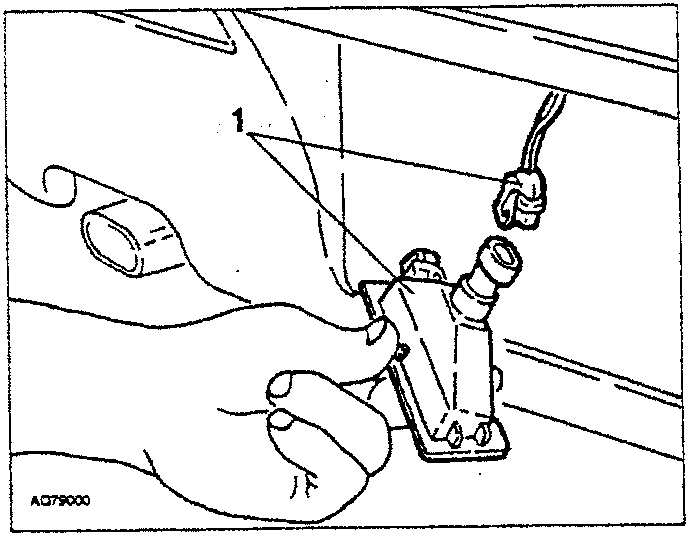

  1. Prise the number plate lights and remove them after disconnecting the electrical connections.
Diagram showing disconnection of number plate light electrical connections
  • Remove the two rear luggage stay hooks.

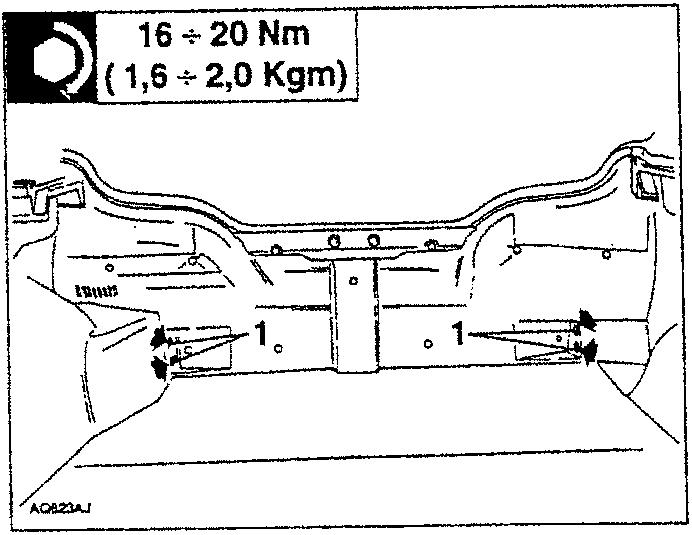

  1. Move aside the trim and slacken the four bumper fastening screws, two for each side.
Diagram showing removal of bumper fastening screws

16 ÷ 20 Nm
(1,6 ÷ 2,0 Kgm)

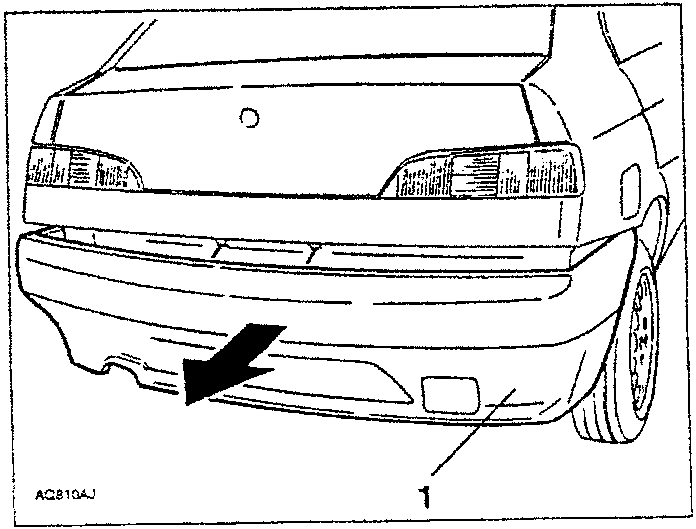

  1. Remove the bumper, pulling from the rear of the car.
Diagram showing removal of bumper from rear
