1.9 TD and TD Cat engine (1929)Description · page 1 of 10

DESCRIPTION

The information and illustrations given below enable the rapid removal of the power unit from its housing and its subsequent refitting. The bench disassembly of the single components is described in the volume "ENGINE OVERHAULING".

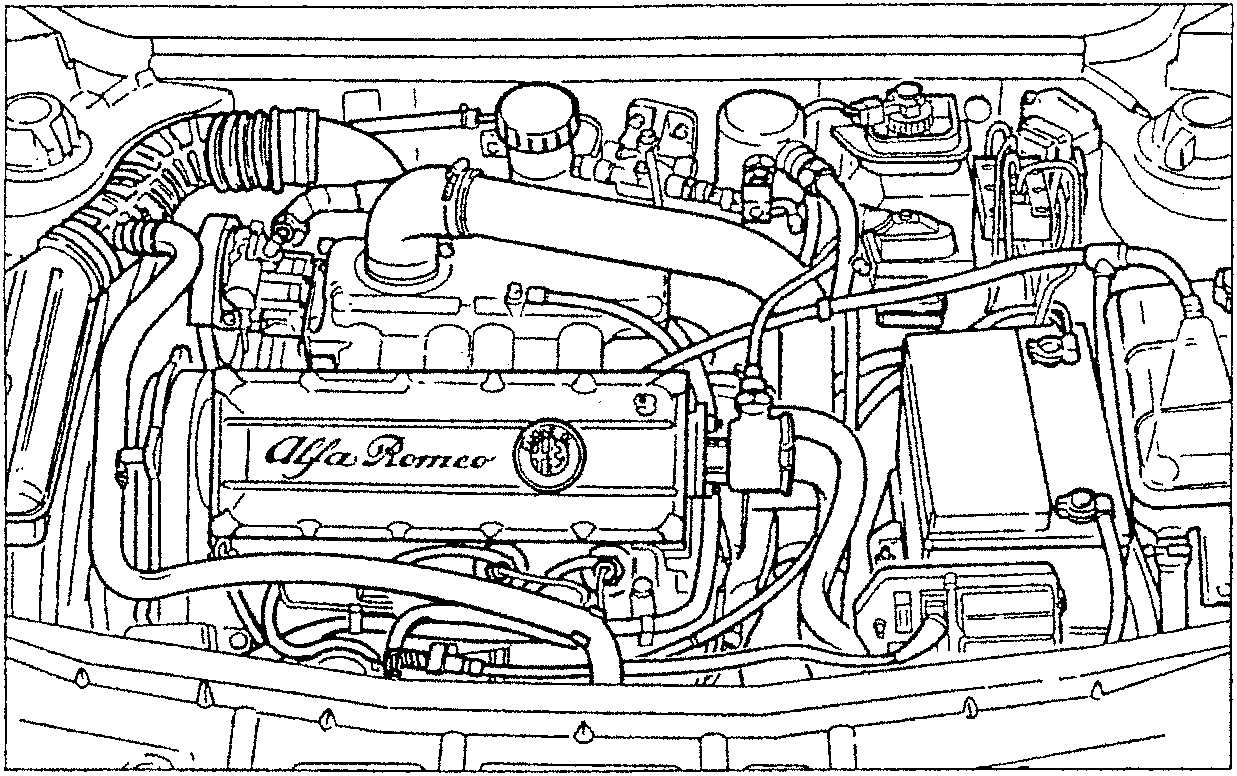

Engine compartment with Alfa Romeo engine cover visible

The following procedure may be used only in part according to requirements. Fur further information and details, refer to the chap-ters concerning the components or specific groups.

REMOVAL

  • Remove the front wheels.
  • Remove the radiator grille and front bumper (see GROUP 70).
  • Drain off the air conditioning fluid.

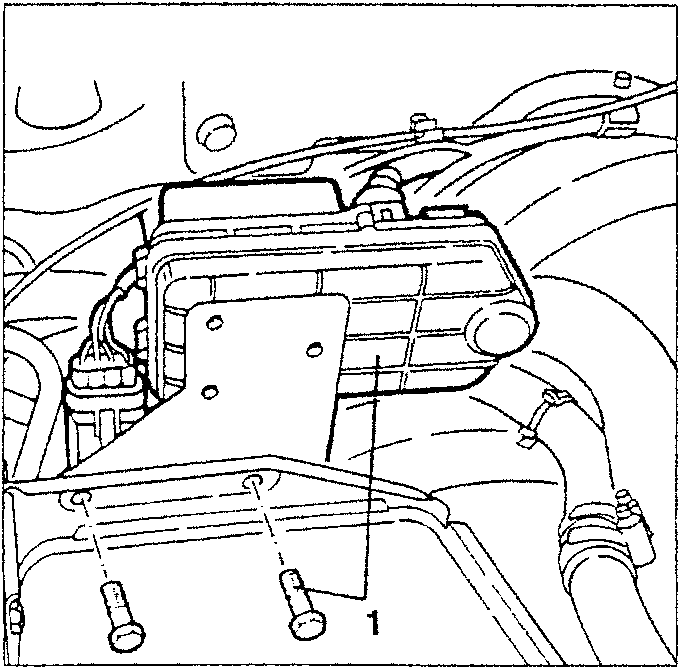

  • Loosen the two screws and move the fan relays to one side.
Battery support with screws labeled 1
  • Remove the conveyor for draining the battery acid.

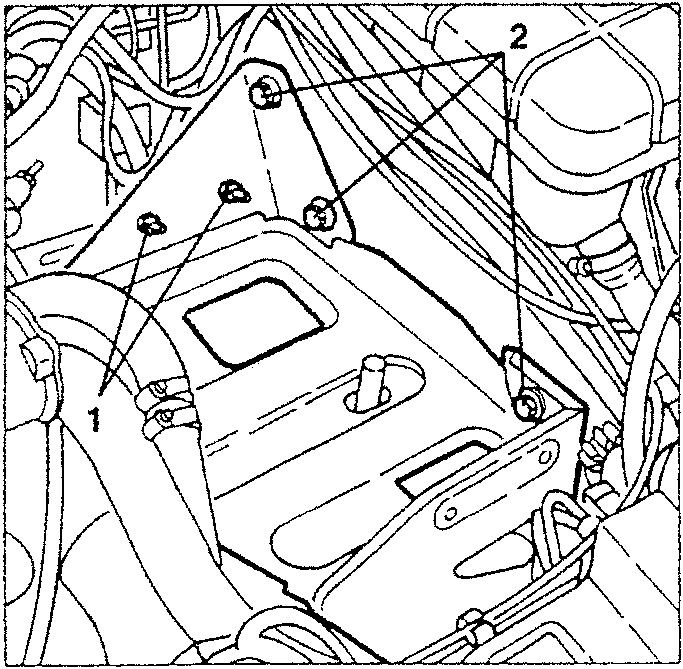

  • 1. Unscrew the two nuts securing the heater plug control unit bracket support at the battery support.
  • 2. Unscrew the four screws and remove the battery support.
Battery support with labeled parts 1 and 2
