1.9 JTD engine (1910)Description · page 1 of 10

DESCRIPTION

The information and illustrations given below make it possible to quickly remove the power unit from its housing and then refit it.

Disassembly of the single components on the bench is described in the "ENGINE OVERHAULING" volume.

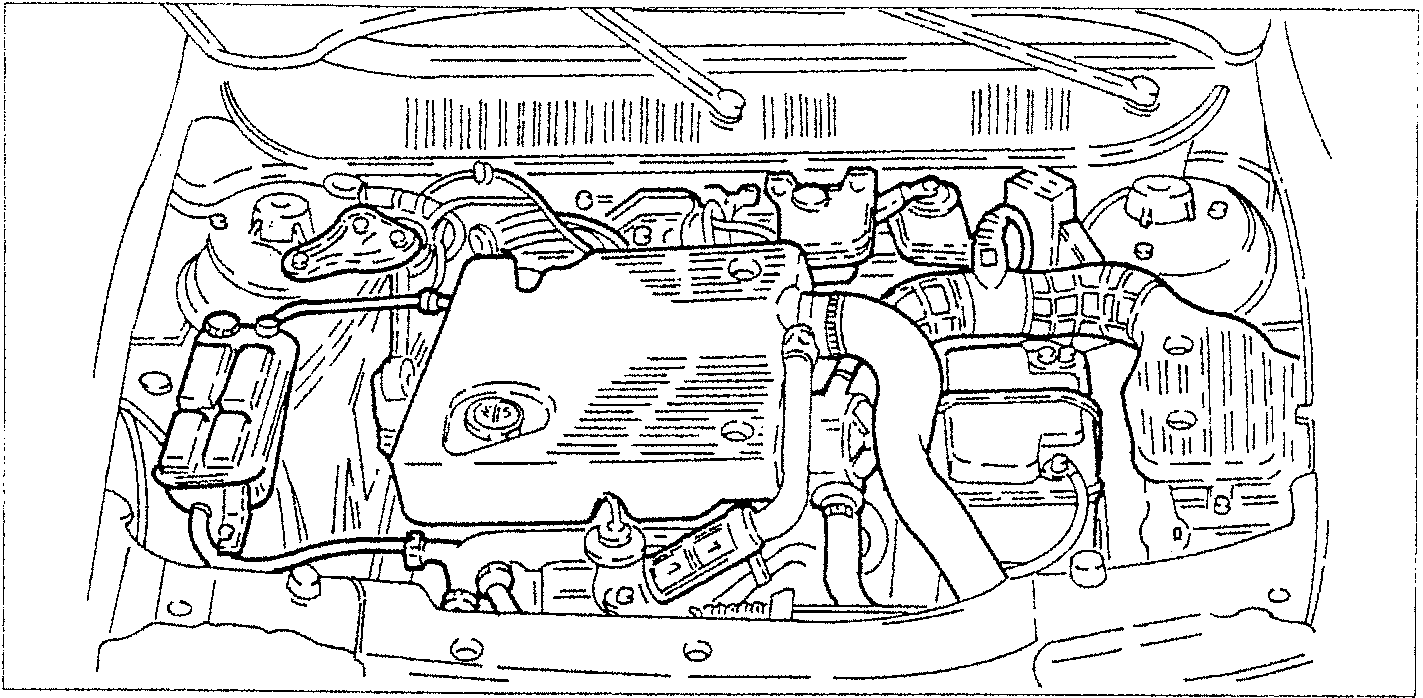

Engine compartment view showing various components including battery, hoses, and engine cover.

REMOVAL

  • Set the car on a lift.
  • Remove the battery (see GROUP 55).
  • Remove the battery acid drain duct.

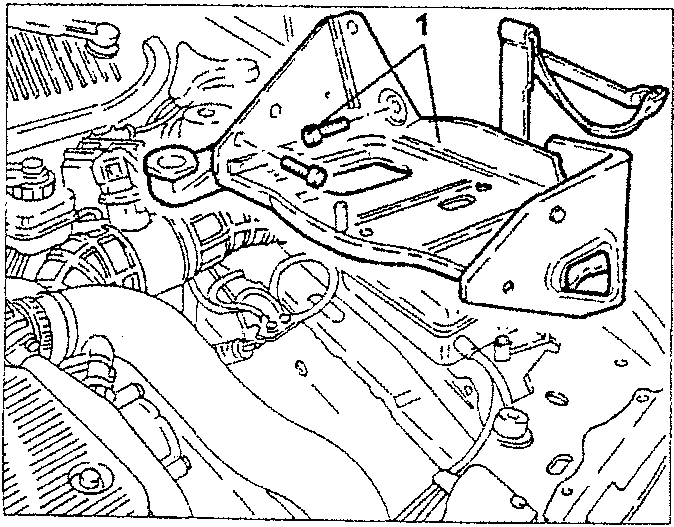

  1. Slacken the fastening screws and remove the battery holder.
Close-up of battery holder with screws and mounting brackets.
  • Remove the front wheels and dust guards.

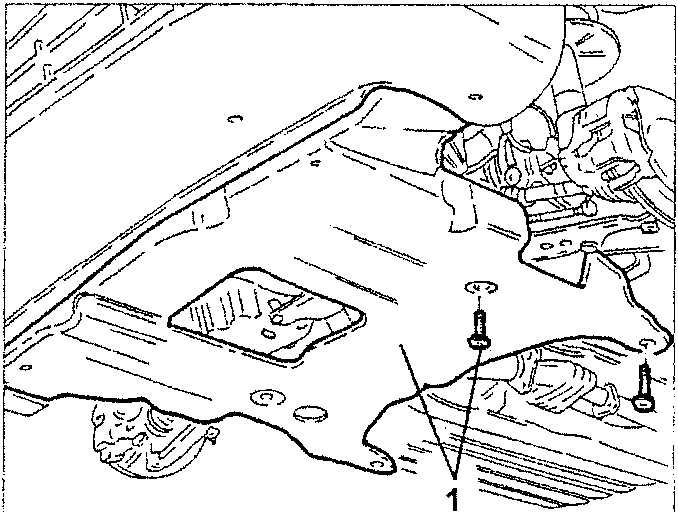

  1. Slacken the fasteners and remove the under engine guard.
Under engine guard with fasteners marked.
