1.9 JTD engine (1910)Description · page 7 of 10

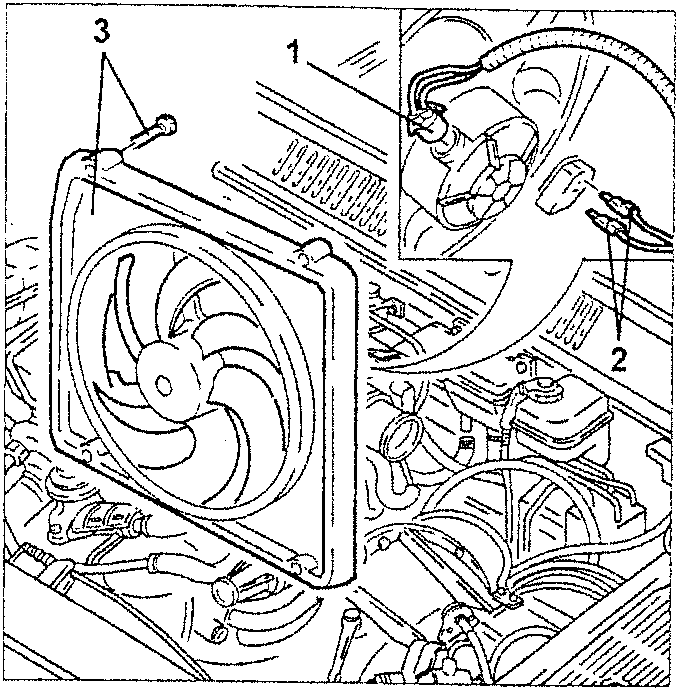

1. Disconnect the electrical connection from the engine cooling fan.
2. Disconnect the electrical connections from the engine cooling fan resistor.
3. Slacken the fastening screws and remove the engine cooling fan.

1. Engine cooling fan
2. Electrical connection
3. Mounting bolt
1. Slacken the fastening bolts and remove the alternator.

1. Alternator

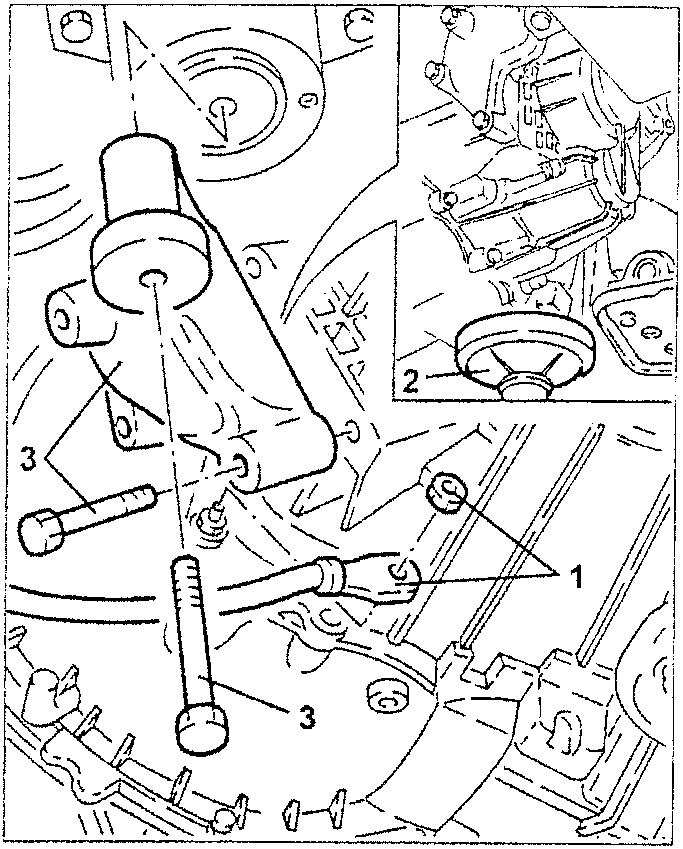

1. Disconnect the earth cable from the gearbox.
2. Place a hydraulic jack under the differential.
3. Slacken the fastening screws and remove the power unit gearbox side support.

• Lower the hydraulic jack until the joint of the left axle shaft to the suspension crossmember rests on it.

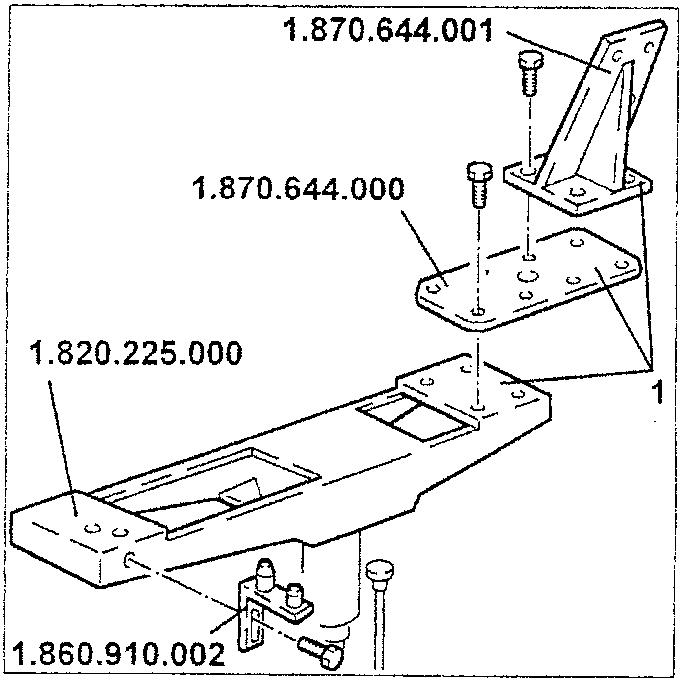

1. Assemble base no. 1.820.225.000, the gearbox side supports no. 1.870.644.000 and 1.870.644.001 and the timing gear side support no. 1.860.910.002 on a hydraulic jack.

1. Base plate 1.820.225.000
2. Timing gear side support 1.860.910.002
3. Boxed gearbox side support 1.870.644.000
4. Boxed gearbox side support 1.870.644.001
