Description (page 8 of 10)

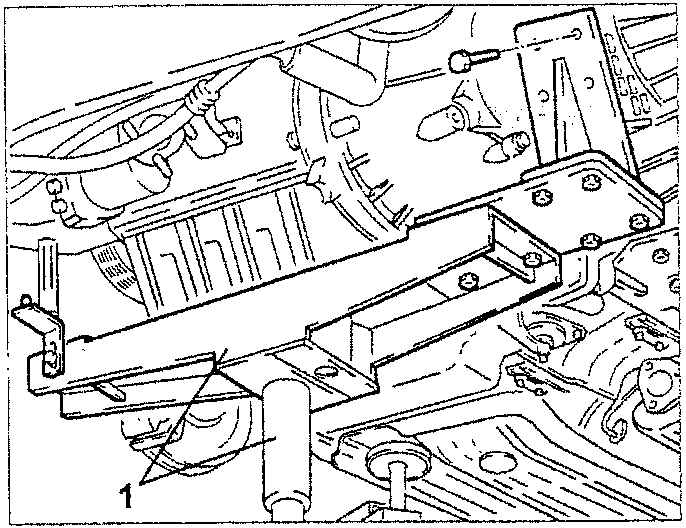

1. Place the hydraulic jack complete with tools under the engine and fasten the gearbox side support with the corresponding screws.

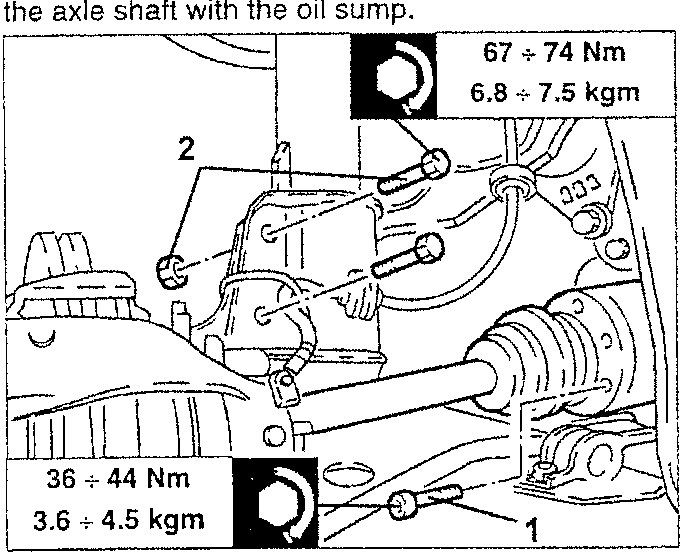

1. Slacken the axle shaft fastening bolts.
2. Slacken the two bolts fastening the right shock absorber to the upright to prevent interference of the axle shaft with the oil sump.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

36 ÷ 44 Nm
3.6 ÷ 4.5 kgm

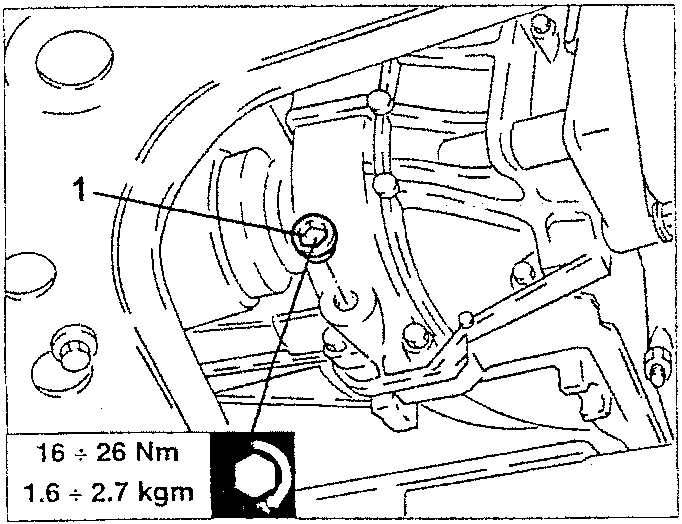

1. Slacken the drain cap and drain the gearbox/differential oil.

16 ÷ 26 Nm
1.6 ÷ 2.7 kgm

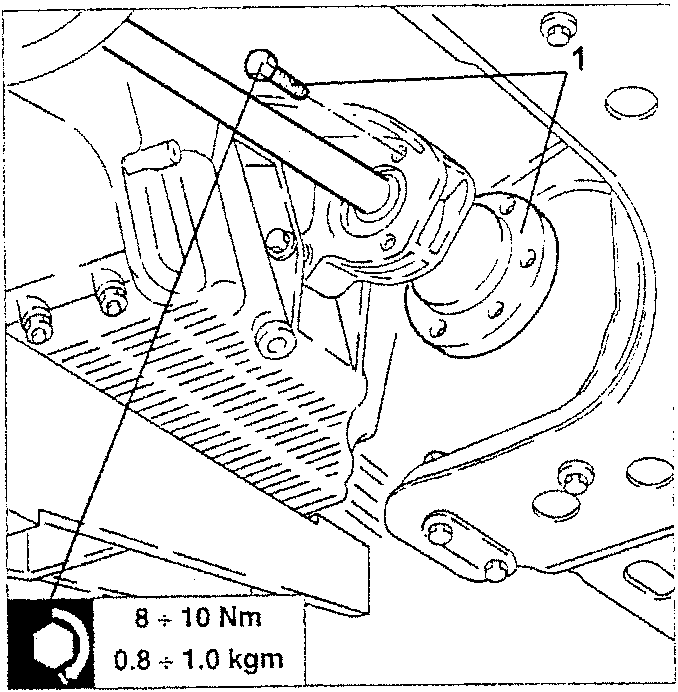

1. Slacken the fastening screws and remove the intermediate axle shaft.

8 ÷ 10 Nm
0.8 ÷ 1.0 kgm

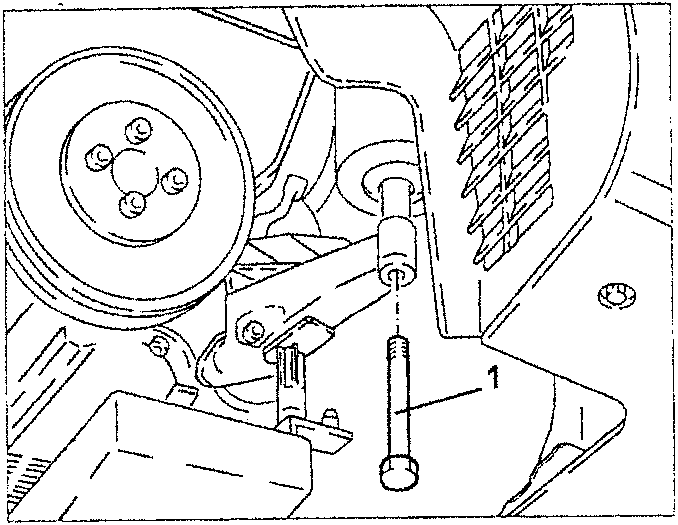

1. Slacken the screw fastening the timing gear side rigid engine support to its flexible pad.
