Description (page 3 of 10)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Removal/Refitting

1.9 JTD engine (1910)Description · page 3 of 10

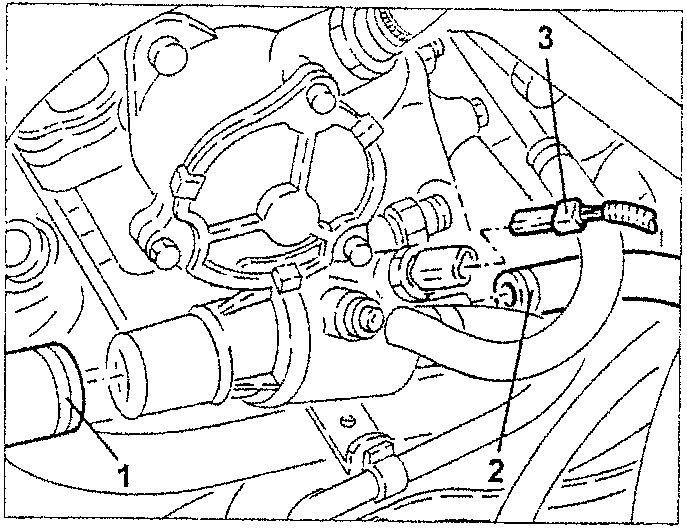

1. Disconnect the coolant delivery sleeve to the radiator from the thermostatic cup.
2. Disconnect the coolant delivery pipe to the climate control system heater from the thermostatic cup.
3. Disconnect the electrical connection from the engine coolant temperature sensor.

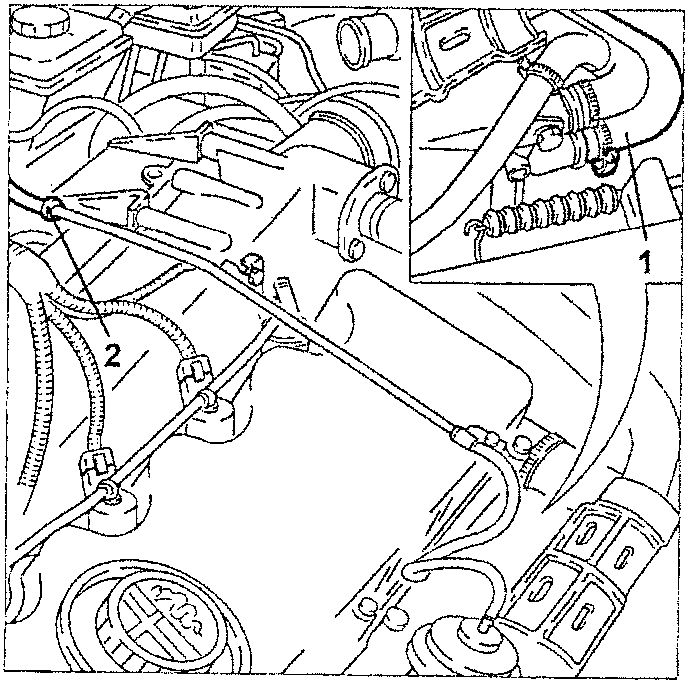

1. return pipe
2. E.G.R. valve modulated control pipe

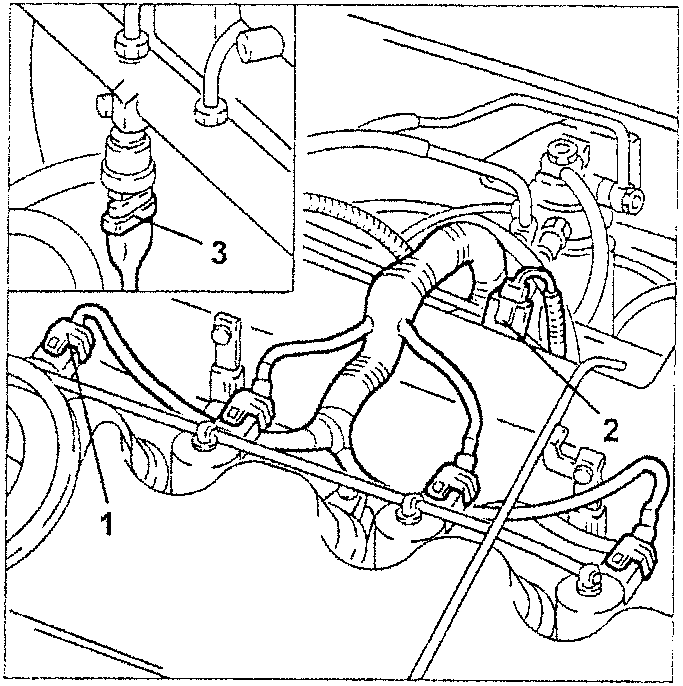

1. Disconnect the electrical connection of the injectors.
2. Disconnect the electrical connection from the overpressure sensor.
3. Disconnect the electrical connection from the fuel temperature sensor.

1. Disconnect the return pipe from the climate control system heater from the stiff water pump coolant return pipe.
2. Disconnect the connection of the E.G.R. valve modulated control pipe.

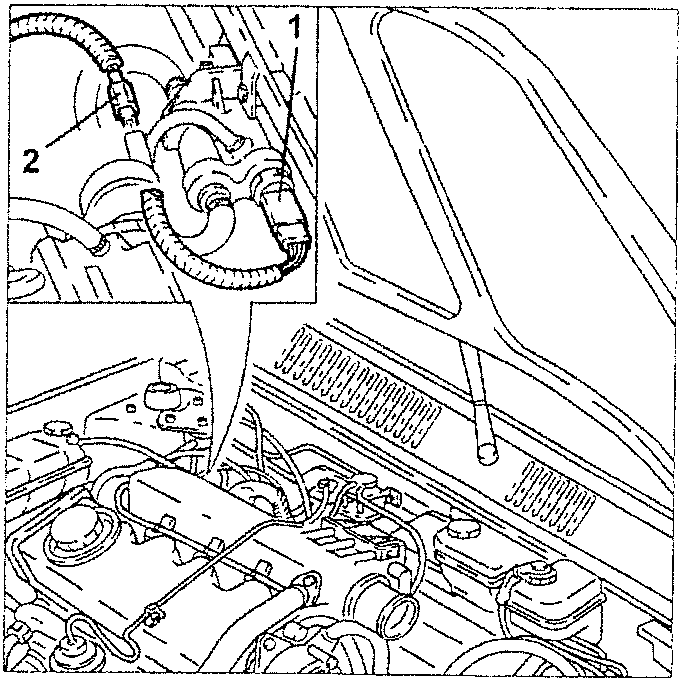

1. Disconnect the electrical connection from the fuel pressure sensor.
2. Disconnect the electrical connection from the fuel pressure regulator.
