Description (page 6 of 10)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Removal/Refitting

1.9 JTD engine (1910)Description · page 6 of 10

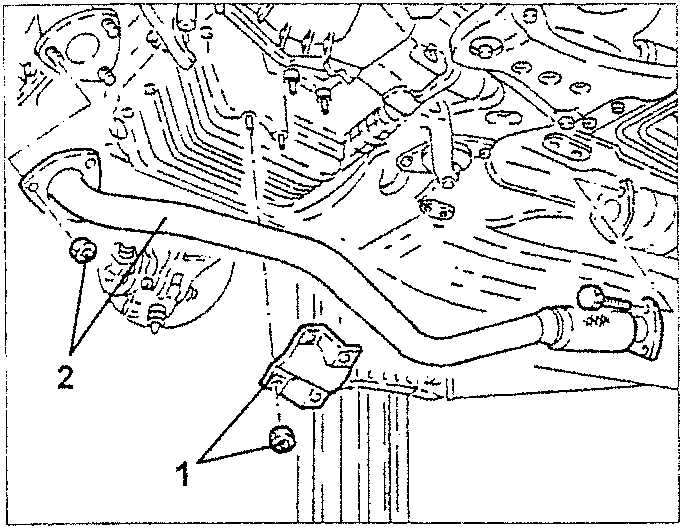

1. Slacken the fastening nuts and remove the reinforcement bracket.
2. Slacken the nuts and screws and remove the front section of the exhaust pipe.

• Remove the associated seals.

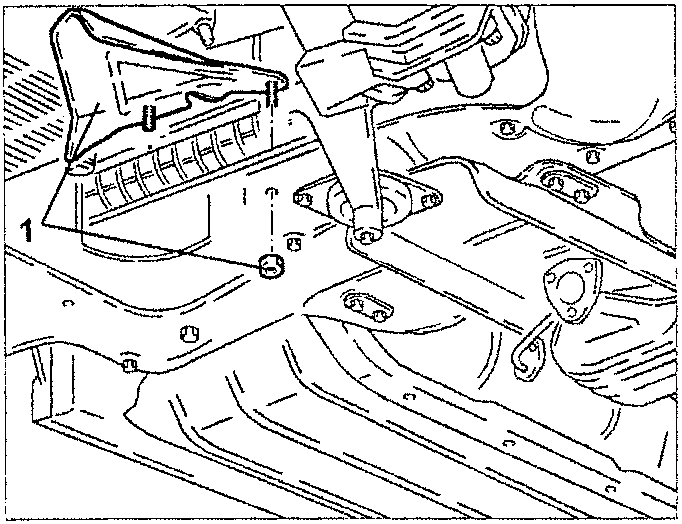

1. Power steering box heat shield

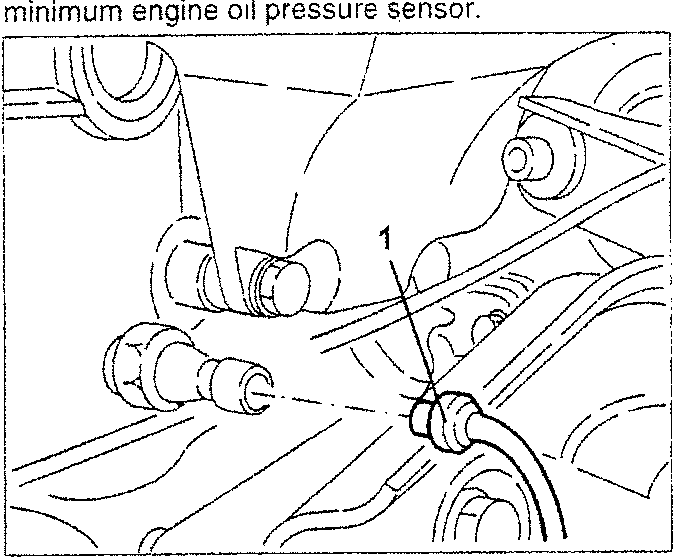

1. Disconnect the electrical connection from the minimum engine oil pressure sensor.

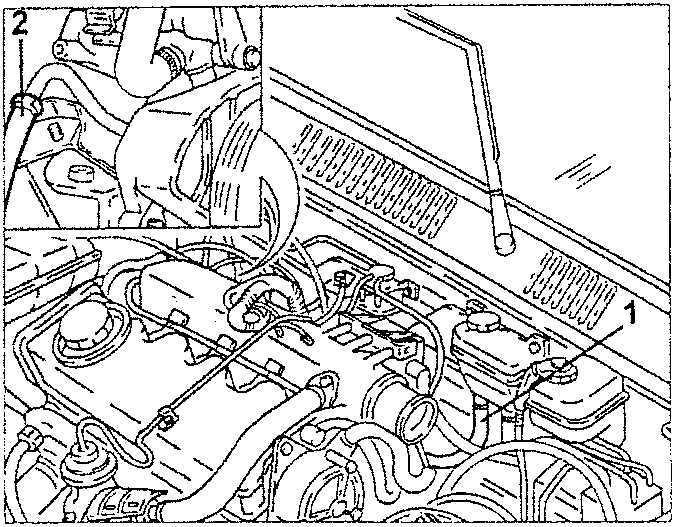

1. Disconnect the delivery pipe to the pump from the power steering fluid tank.
2. Disconnect the delivery pipe to the power steering box from the power steering pump.

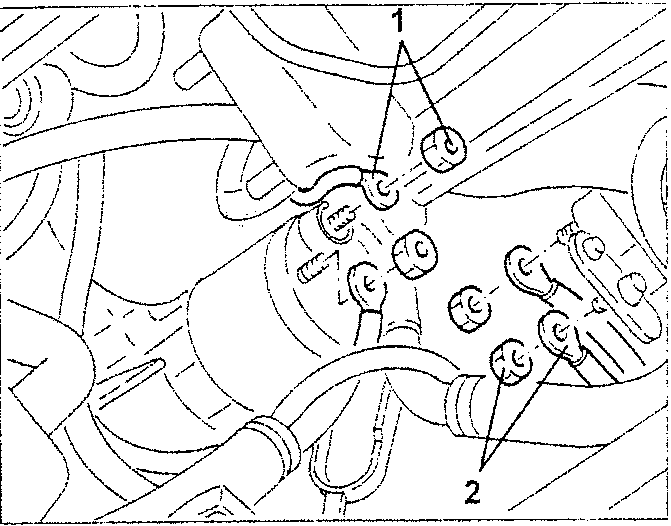

1. Disconnect the electrical connections from the starter motor.
2. Disconnect the electrical connections from the alternator.

02 Engine
