1.9 JTD engine (1910)Description · page 5 of 10

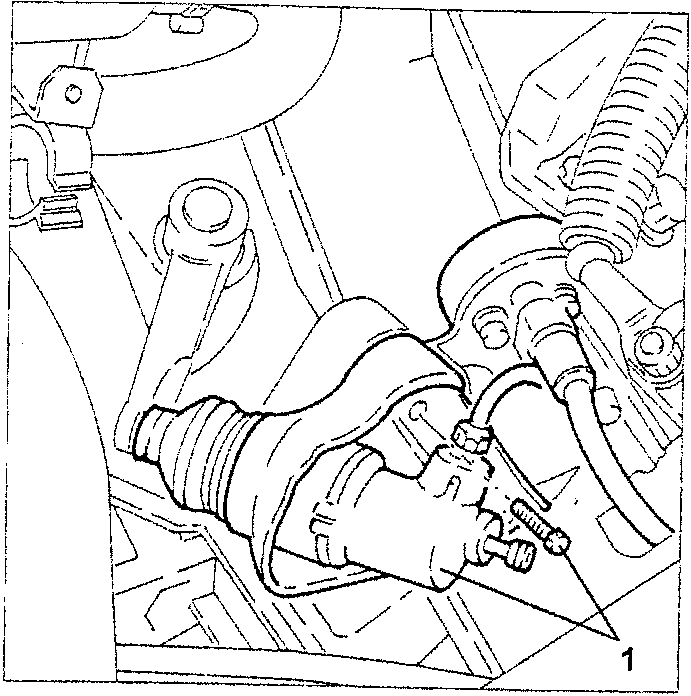

1. Slacken the fastening screws and move aside the operating cylinder complete with pipes and pulse damper.

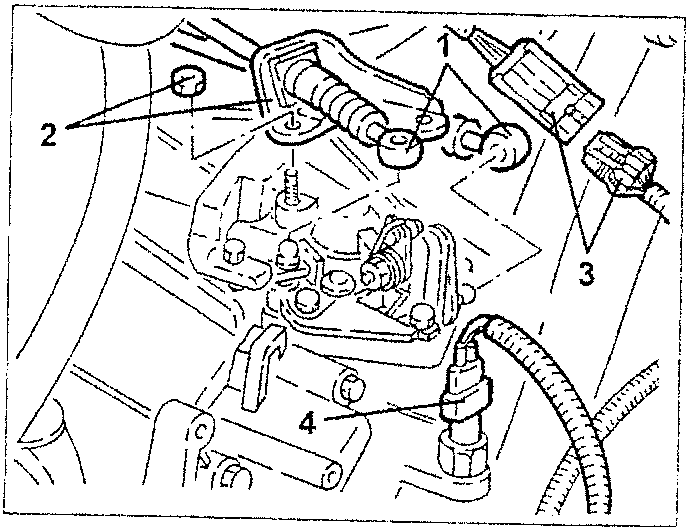

1. Disconnect the gear selection and engagement cables.
2. Slacken the nuts and move aside the support brackets complete with gear selection and engagement cables.
3. Disconnect the electrical connection of the speedometer sensor.
4. Disconnect the electrical connection from the reversing lights sensor.

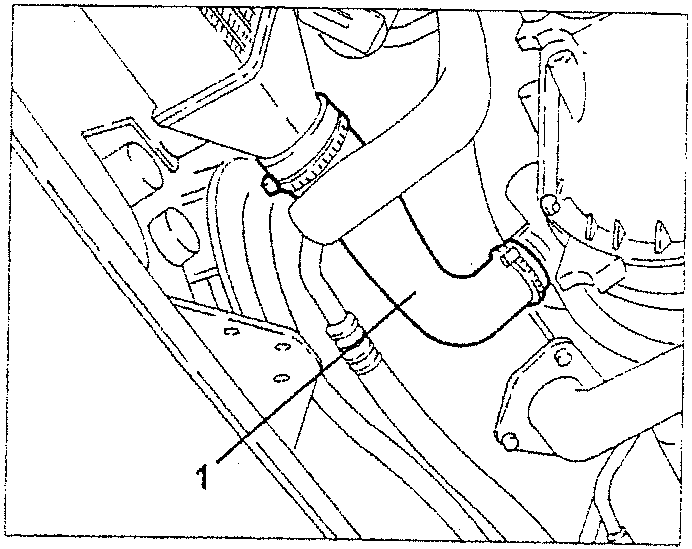

1. Remove the air delivery pipe from the turbocharger to the heat exchanger.

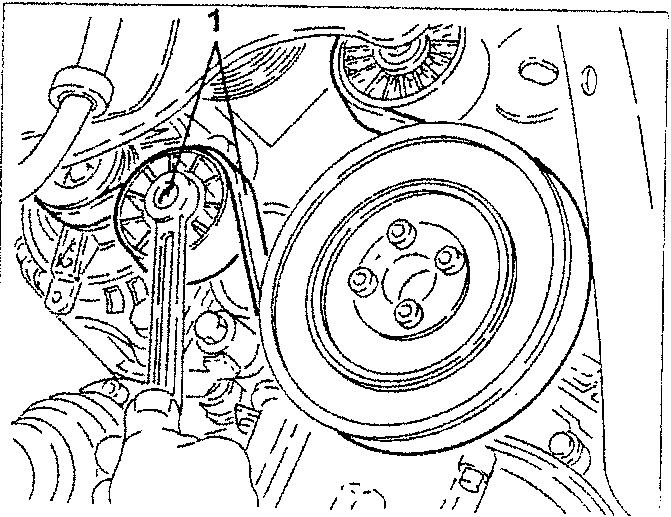

1. Working as illustrated on the tensioner, slacken the tension of the engine components belt and remove it.

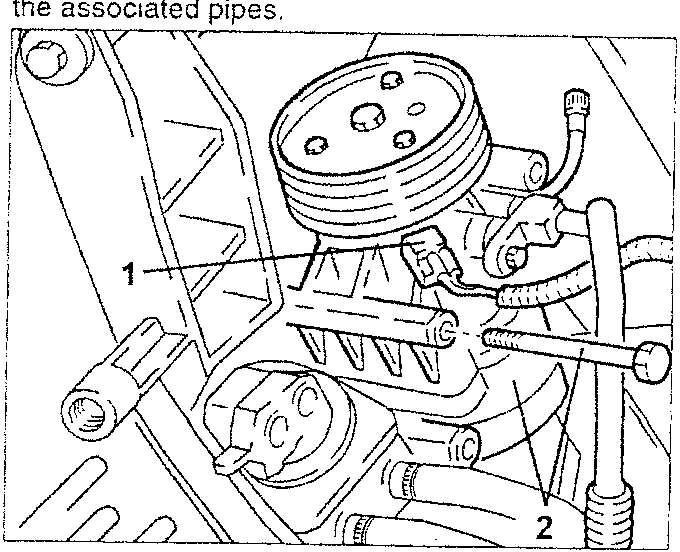

1. Disconnect the electrical connection from the conditioner compressor.
2. Slacken the fastening screws and move aside the conditioner compressor without disconnecting the associated pipes.
