Description (page 4 of 10)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Removal/Refitting

1.9 JTD engine (1910)Description · page 4 of 10

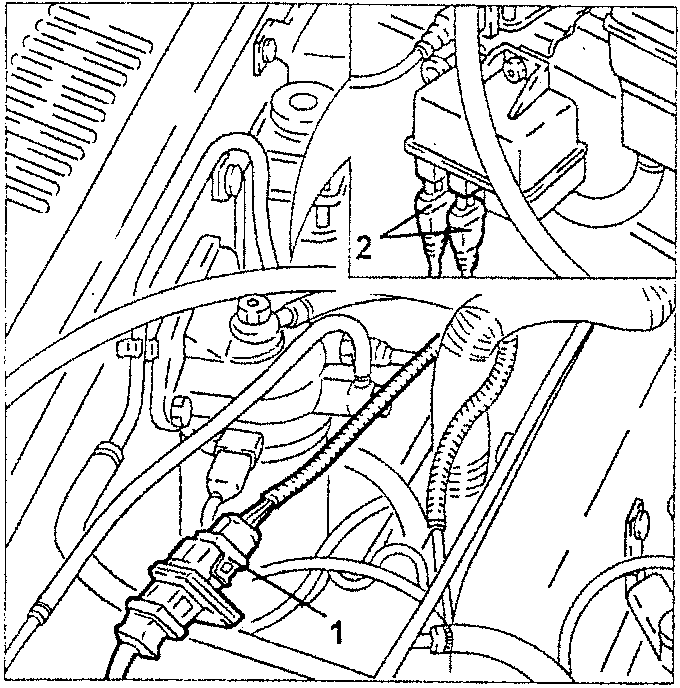

1. Disconnect the electrical connection of the cam angle sensor.
2. Disconnect the electrical connections from the glow plug warming control unit.

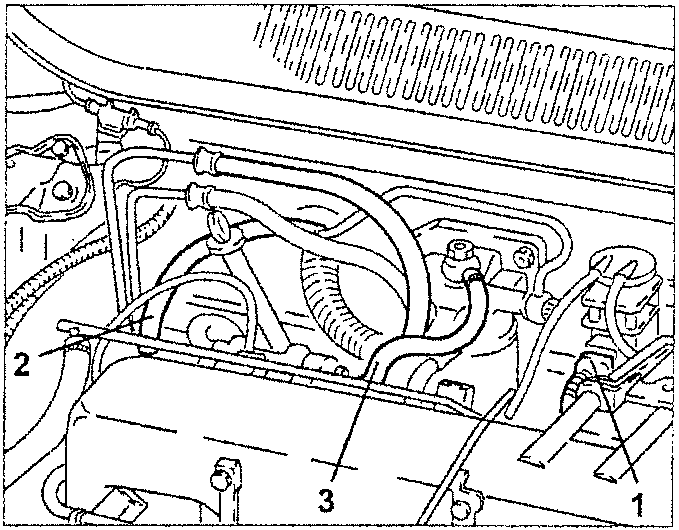

1. Disconnect the electrical connection E.G.R. modulation solenoid valve.
2. Disconnect the fuel delivery pipe from the pressure pump.
3. Disconnect the fuel return pipe from the fuel return manifold pipe.

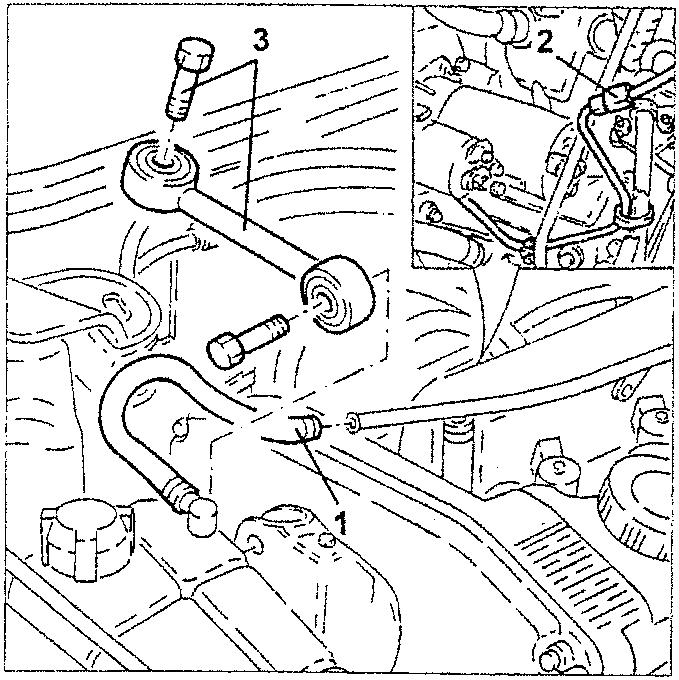

1. Disconnect the connection of the coolant return pipe to the header tank.
2. Disconnect the electrical connection of the rpm sensor.
3. Slacken the fastening screws and remove the power unit reaction rod.

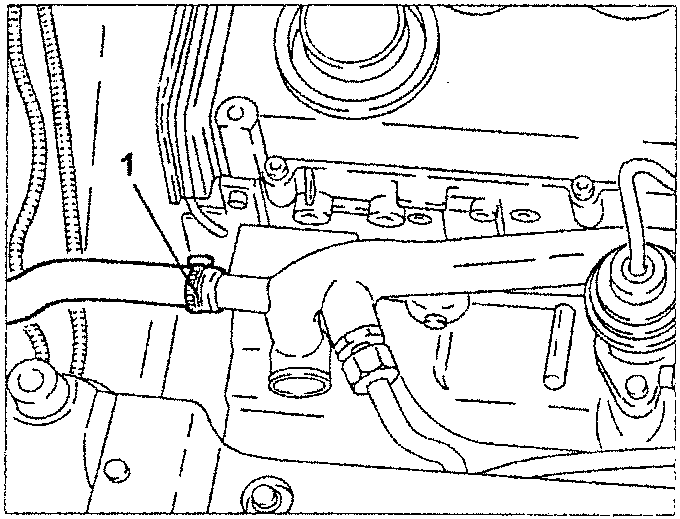

1. Disconnect the system supply pipe leading from the header tank from the stiff coolant return pipe to the water pump.

02 Engine
