Description (page 9 of 10)

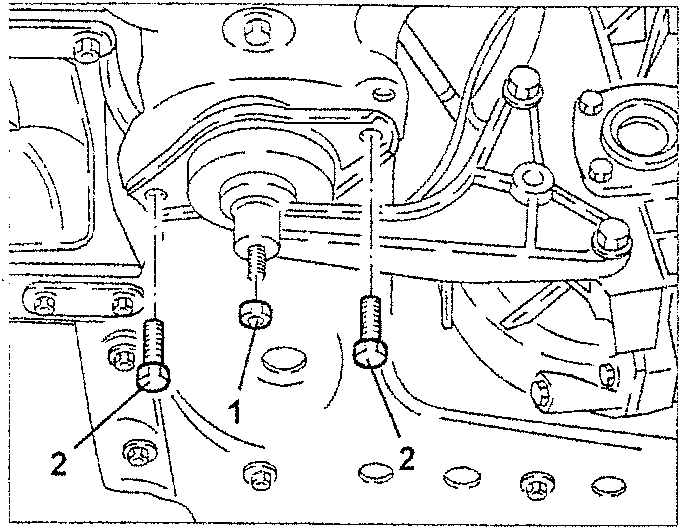

1. Slacken the nut fastening the power unit rear stiff support to its flexible pad.
2. Slacken the screws fastening the power unit rear support flexible pad to the suspension crossmember.

1. Lower the hydraulic jack and remove the power unit from the engine compartment.

WARNING: The hydraulic jack used for removing the power unit must have a capacity of at least 1000 kg.

• Support the power unit with a hydraulic hoist as well as with the hydraulic jack used for removal.

WARNING: For moving the power unit use a hydraulic hoist after freeing it from the hydraulic jack.

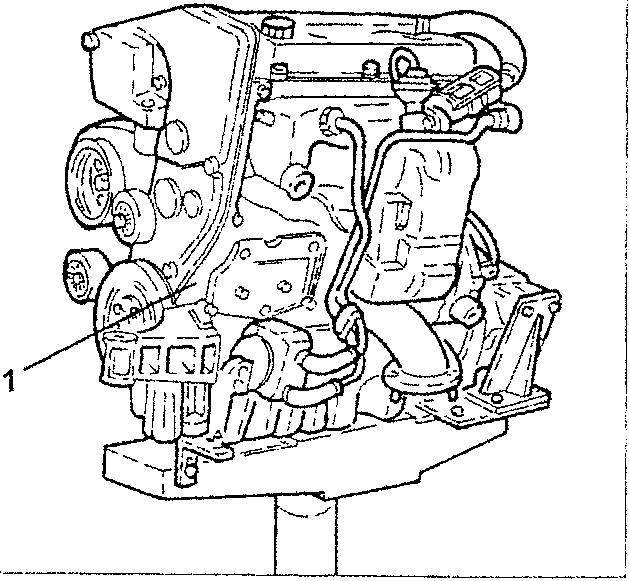

• Release the power unit from the support tools, then place it on a special work bench.

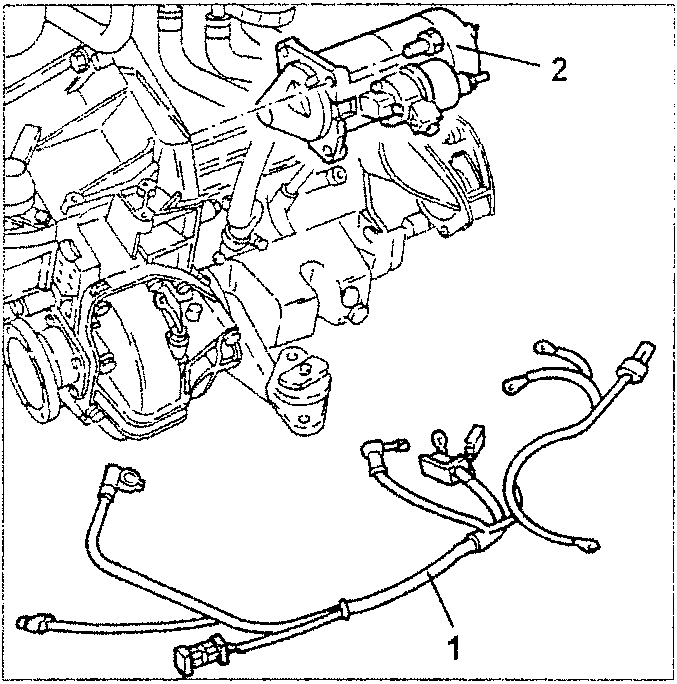

1. Scollegare e rimuovere il cablaggio elettrico dal gruppo motopropulsore.
2. Slacken the fastening screws and remove the starter motor.

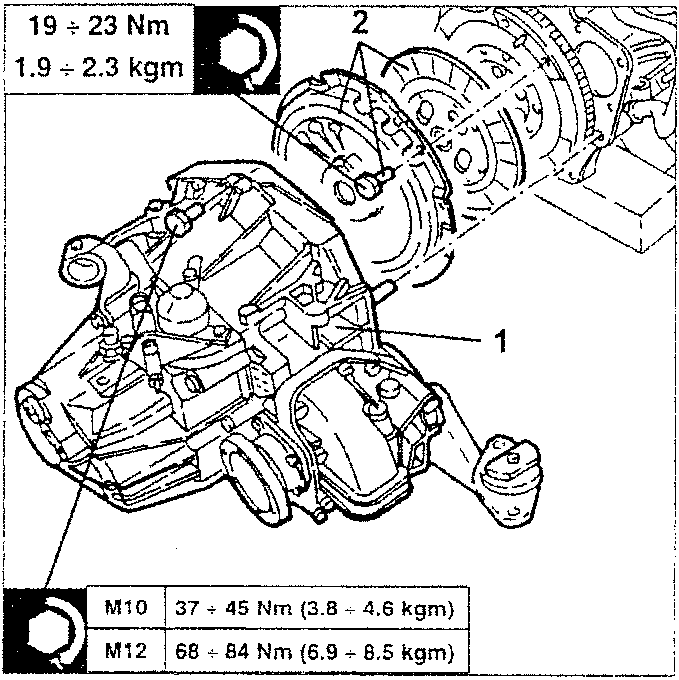

1. Slacken the fasteners and remove the gearbox/differential unit from the engine.
2. Slacken the fastening screws, then remove the clutch box complete with thrust bearing and clutch plate.

49 ÷ 23 Nm
1.9 ÷ 2.3 kgm
