Description (page 10 of 10)

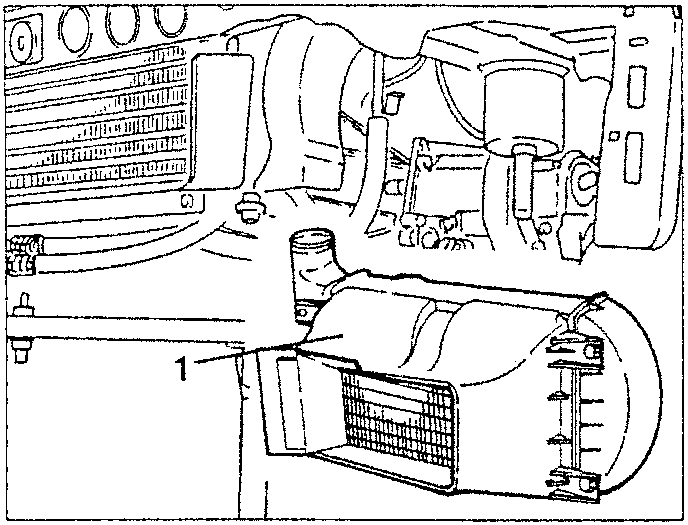

1. Lower the engine slightly and take the intercooler and manifold.

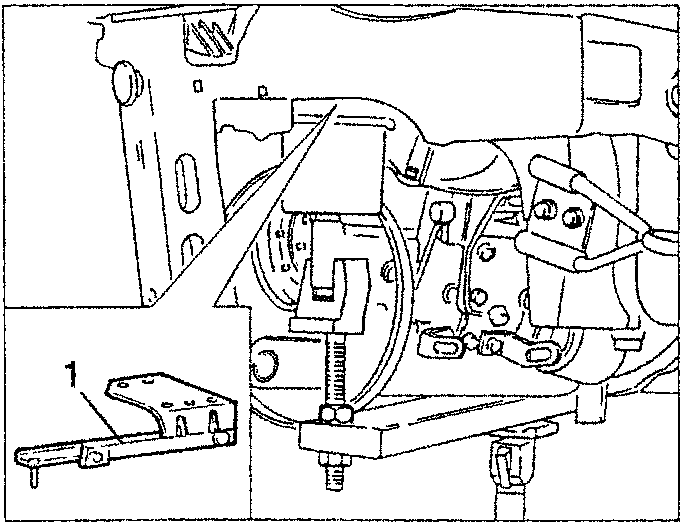

1. Take the oil radiator support rod.

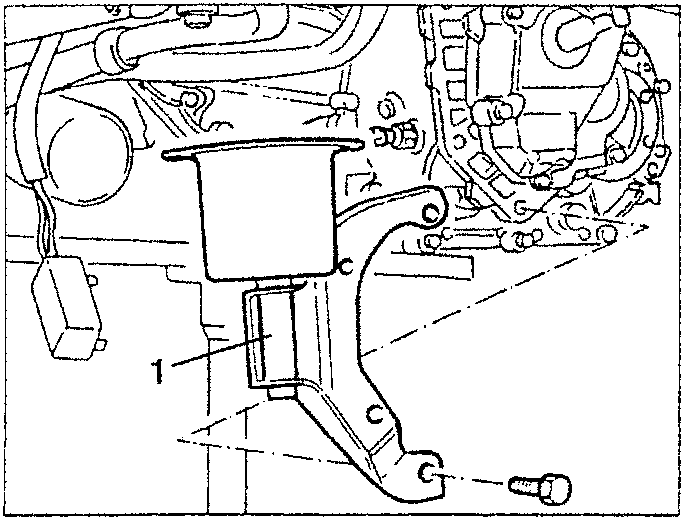

1. Remove the complete gearbox side bracket.

IMPORTANT: When lowering check there are no attached wires or pipes.

IMPORTANT: Pay attention not to damage parts.

• Lower the hydraulic jack and remove the engine from the engine compartment.
• Support the engine with an hydraulic lift and the hydraulic jack used for removal.

NOTE: Some engines are not equipped with a gearbox side lifting bracket. In this case, fit the bracket, supplied as a spare part, and torque the fastening screw at 47 ÷ 58 Nm.

IMPORTANT: Disconnect electric wires from clips and shift them away from the engine.

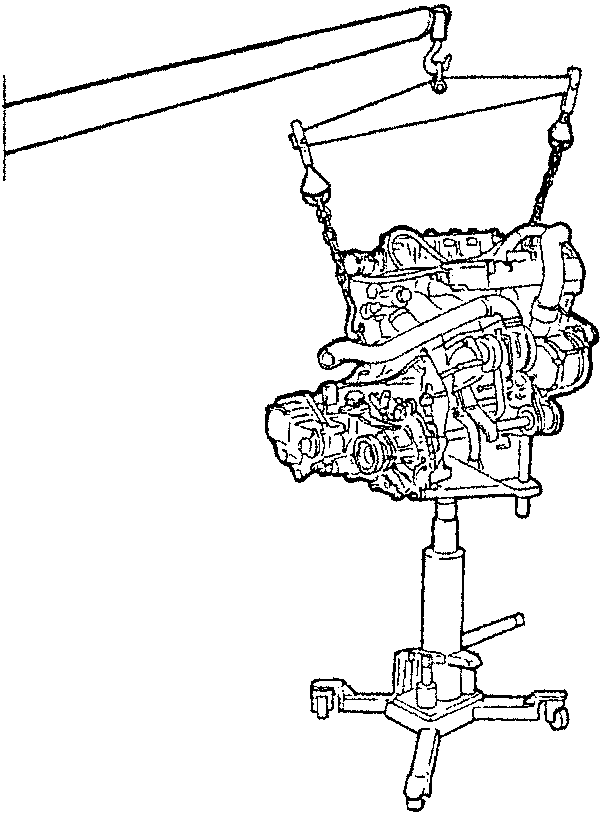

IMPORTANT: Use a hydraulic crane to move the engine after releasing it from the hydraulic jack.
