Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)03 · 1.9 TD and TD Cat engine (1929)
03 · Engine

Description (page 9 of 10)

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Removal/Refitting
1.9 TD and TD Cat engine (1929)Description · page 9 of 10
  1. Unscrew the fastening screws and remove the small flywheel protection panel.

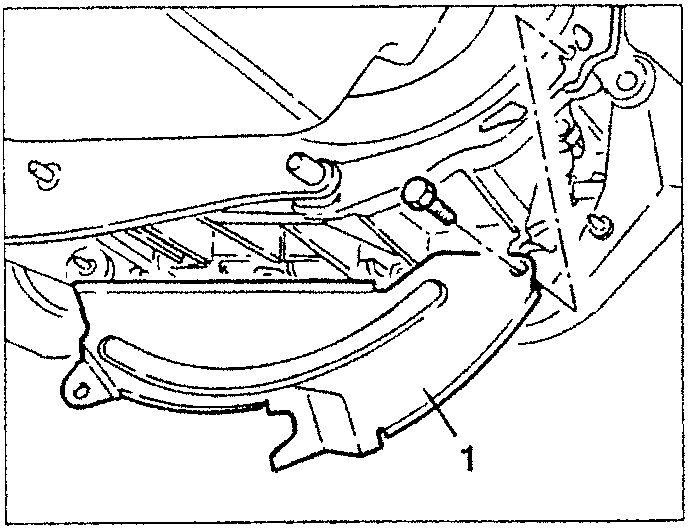

Flywheel protection panel removal
  1. Install the support tools N° 1.820.233.000, N° 1.820.283.000 and N° 1.820.225.000 ready to remove the engine from the vehicle, positioning them as indicated in the figure.
  2. Position a hydraulic jack under the tools of the engine support.

CAUTION: The hydraulic jack must have a capacity of at least 1000 kg.

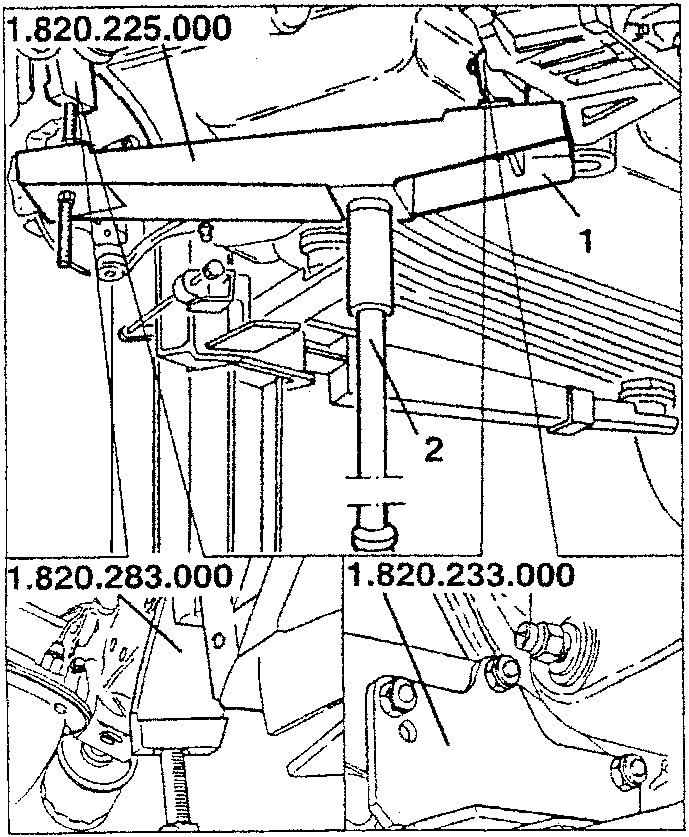

Engine support tools installation
  1. Unscrew the screws fastening the gearbox side support to the body

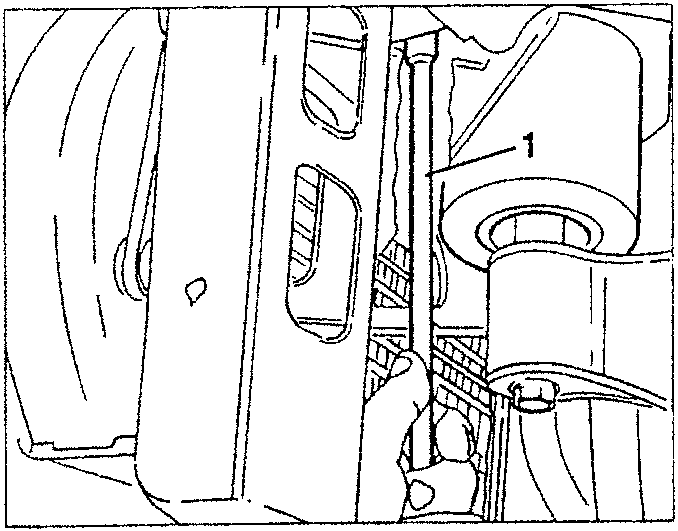

Gearbox side support removal
  1. Unscrew the screws fastening the timing side support to the body.

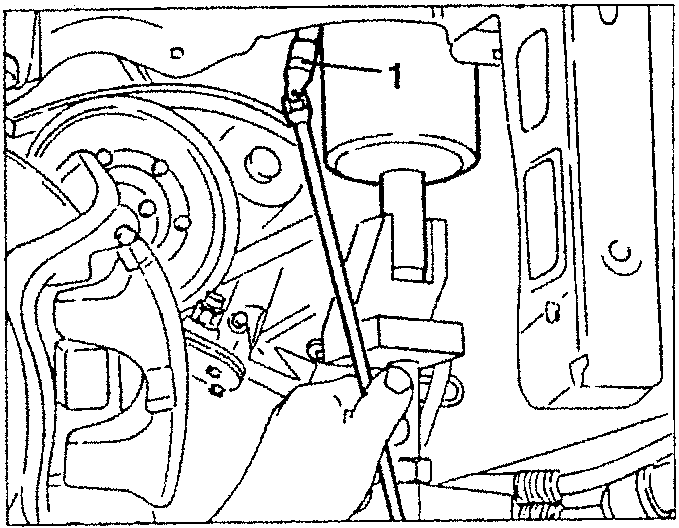

Timing side support removal
  1. Unscrew the screws fastening the rear support to the body and recover the buffer.

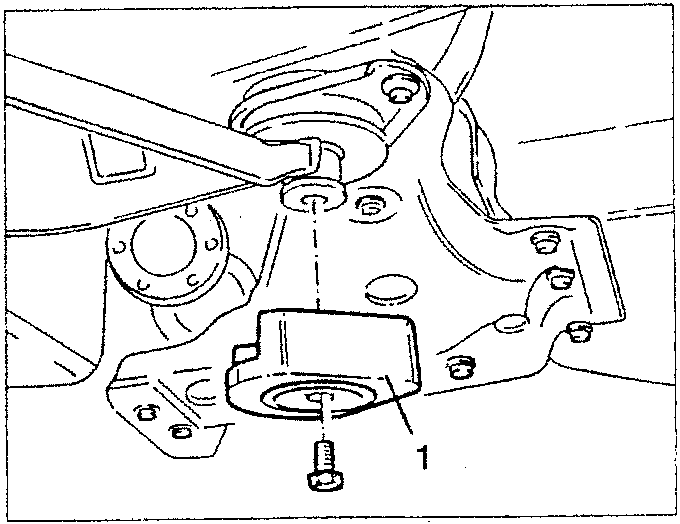

Rear support and buffer removal
