Description (page 4 of 10)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Removal/Refitting

1.9 TD and TD Cat engine (1929)Description · page 4 of 10

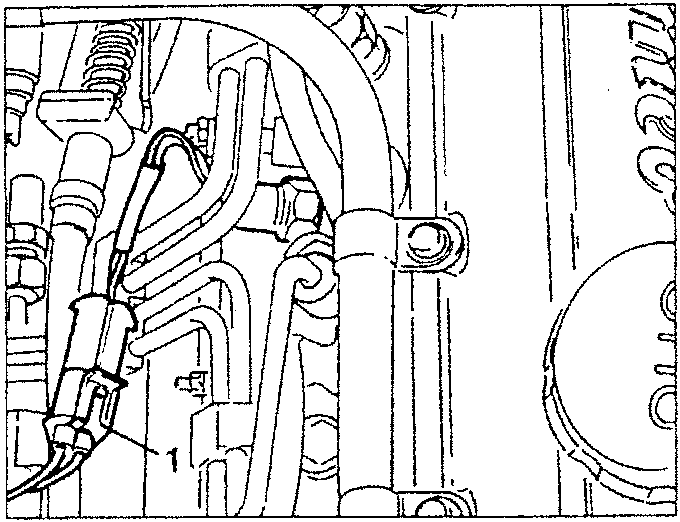

1. Disconnect the electrical connection from the engine coolant temperature indicator transmitter and max. temperature warning light contact.

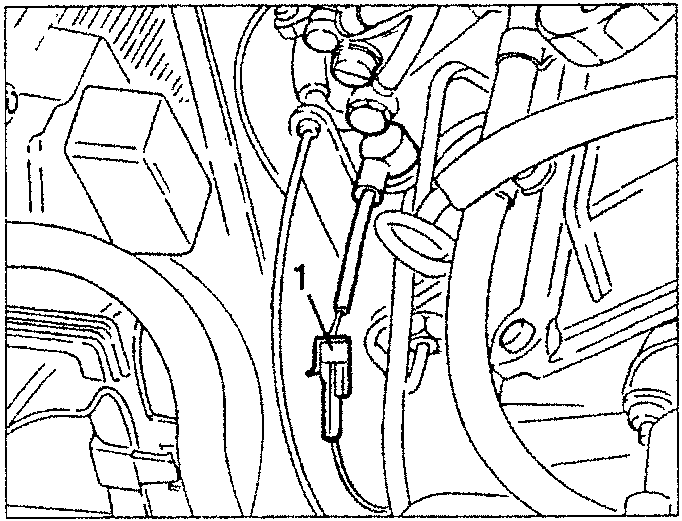

1. Disconnect the electrical connection of the engine stop solenoid valve.

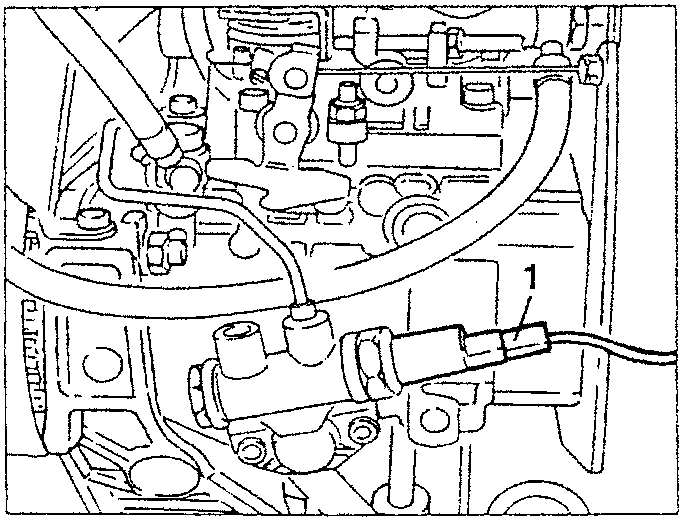

1. Disconnect the electrical connection of the KSB cold injection advance automatic control device.

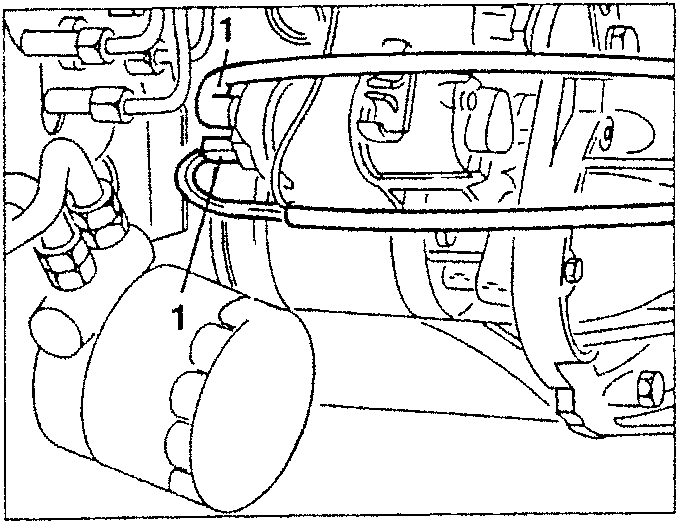

1. Disconnect the electrical power supply and starter motor energizing connections.

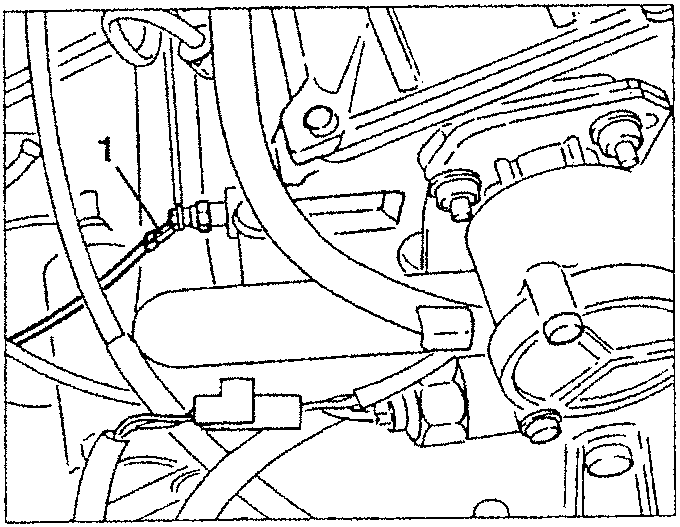

1. Disconnect the power supply electrical connection to the heater plug .

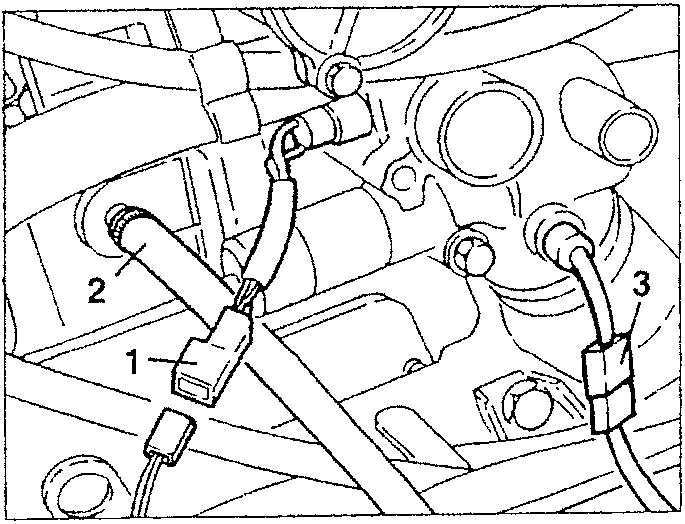

1. Disconnect the electrical connection of the KSB consensus thermoswitch.
   2. Disconnect the engine coolant to heater delivery pipe from the cylinder heads.
   3. Disconnect the electrical connection of the conditioner compressor cut-off thermal contact.

03 Engine
