Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)03 · 1.9 TD and TD Cat engine (1929)
03 · Engine

Description (page 7 of 10)

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Removal/Refitting
1.9 TD and TD Cat engine (1929)Description · page 7 of 10
  1. Remove the support clamp on the first section of the exhaust pipe.
  2. Unscrew the fastening screws of the flanges connecting the front section of the exhaust pipe to the turbocharger.

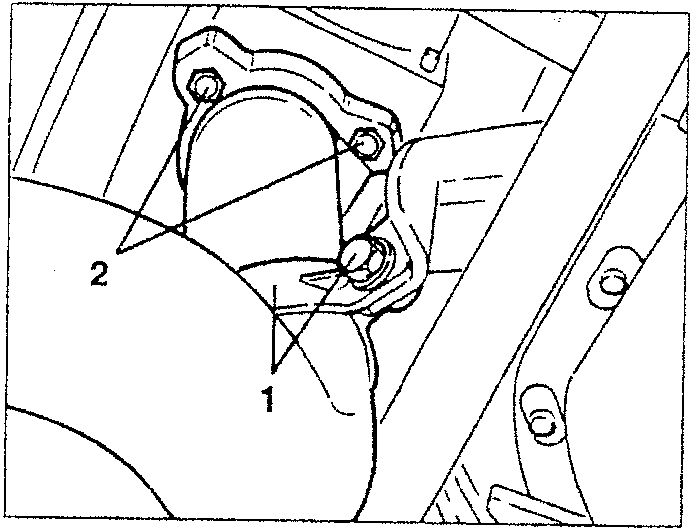

Exhaust pipe support clamp and turbocharger flange connection
  1. Loosen the clamp fastening the front section of the exhaust pipe to the central section.

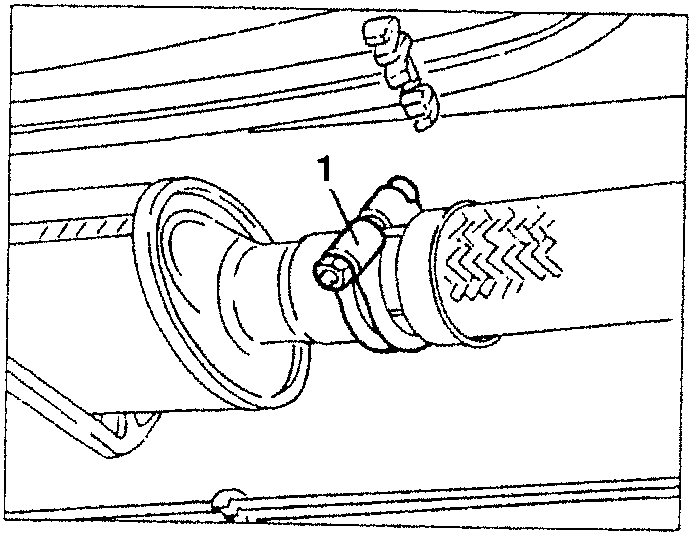

Clamp fastening the front exhaust pipe section to the central section
  1. Remove the front section of the exhaust pipe.

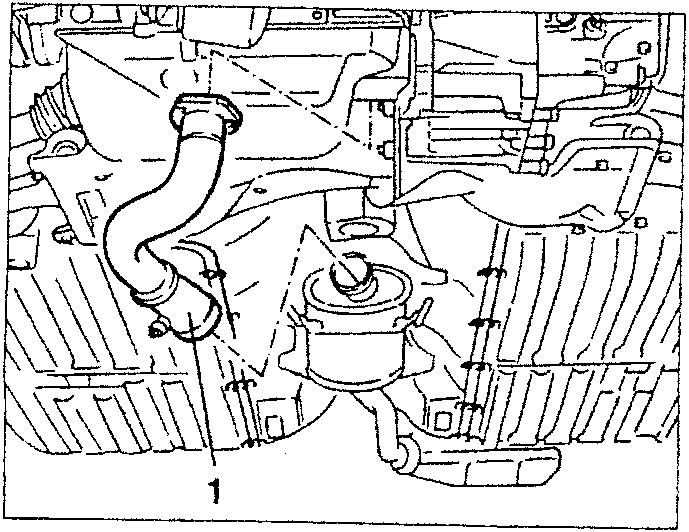

Front section of the exhaust pipe being removed
  1. Disconnect the lefthand homokinetic connection from the relative flange.

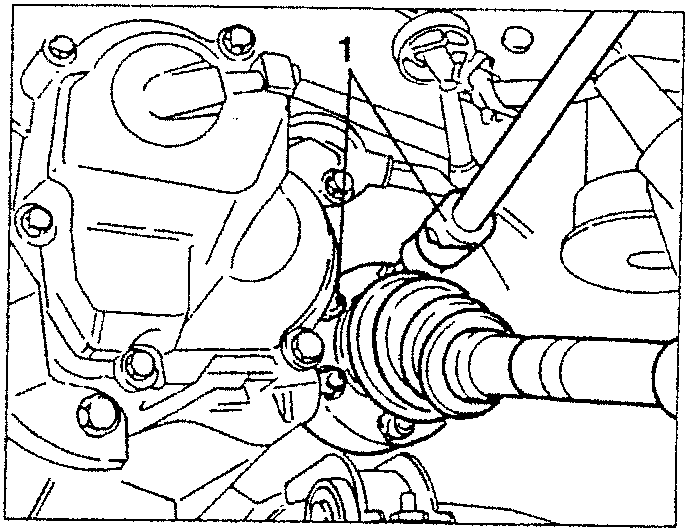

Lefthand homokinetic connection being disconnected from the flange
  1. Disconnect the complete upright from the lefthand shock absorber.

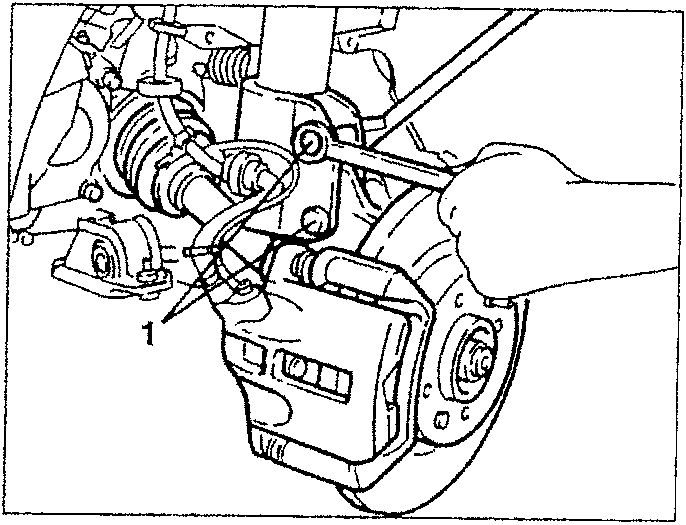

Complete upright being disconnected from the lefthand shock absorber
  1. Unscrew the fastening nut of the lefthand steering rod ball joint.
  2. Using extractor N° 1.821.169.000 (A.3.0633) separate the steering rod from the control lever on the upright.

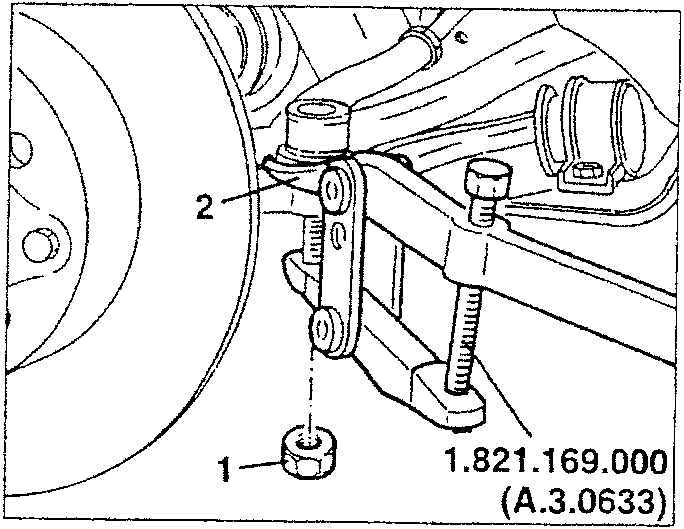

Extractor tool separating the steering rod from the control lever
