Description (page 3 of 10)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Removal/Refitting

1.9 TD and TD Cat engine (1929)Description · page 3 of 10

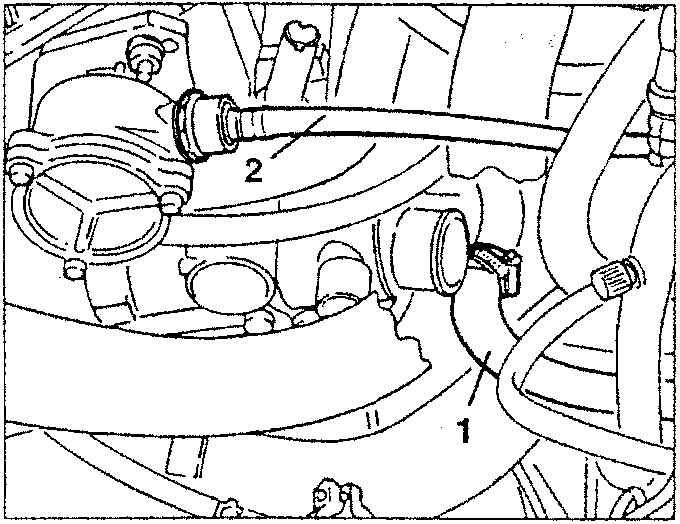

1. Disconnect the engine coolant from heater return sleeve from the engine coolant to pump manifold.
2. Disconnect the vacuum pipe from the vacuum pump for the servo brakes.

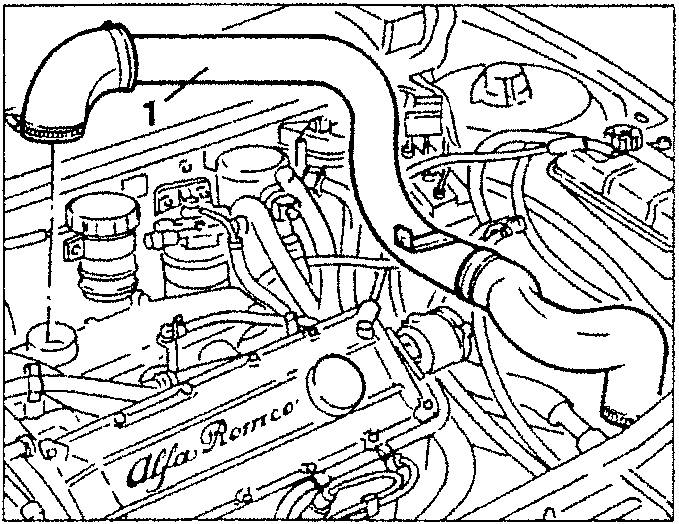

1. Remove the air from intercooler to air intake box delivery manifold.

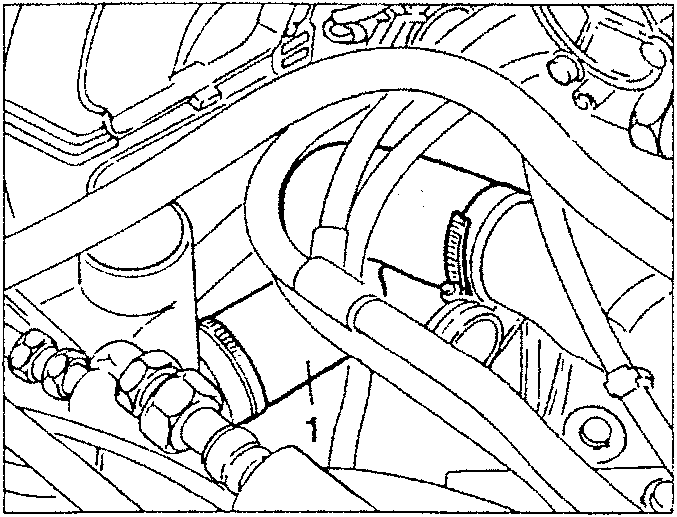

1. Remove the air from turbocharger to intercooler delivery sleeve.

• Disconnect the oil vapour recirculation pipe from the intaken air corrugated sleeve.

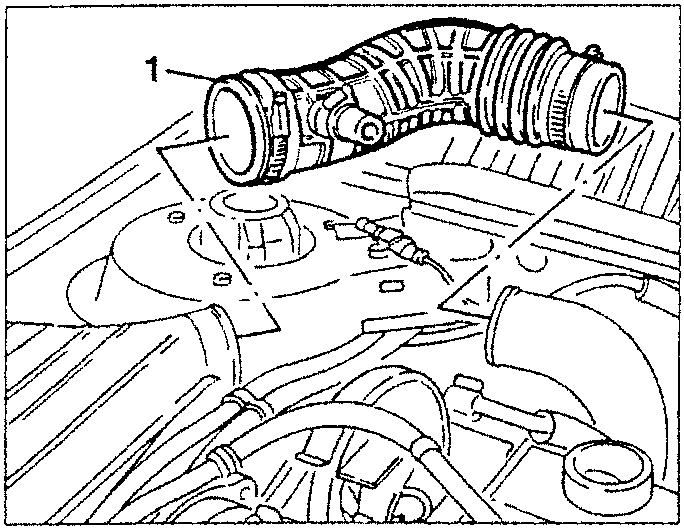

1. Remove the corrugated air intake from filter to turbocharger sleeve.

• Using a suitable syringe, drain oil from the power steering system reservoir.

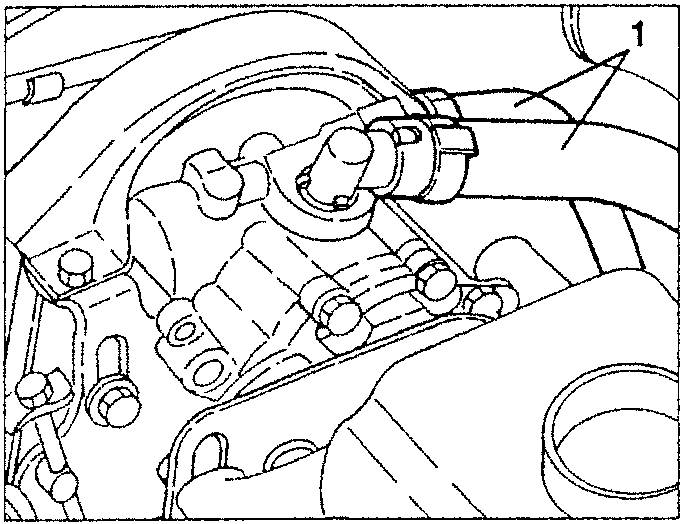

1. Disconnect the intake and oil delivery connectors from the power steering pump.

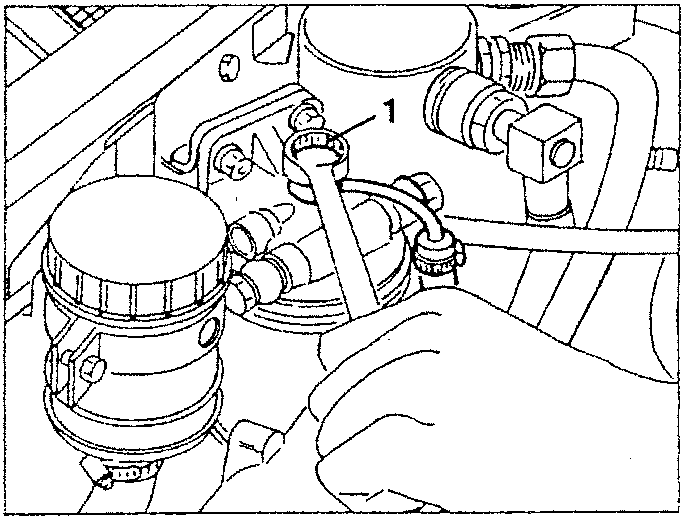

1. Disconnect the fuel delivery to injection pump pipe from the filter.
