1.9 TD and TD Cat engine (1929)Description · page 6 of 10

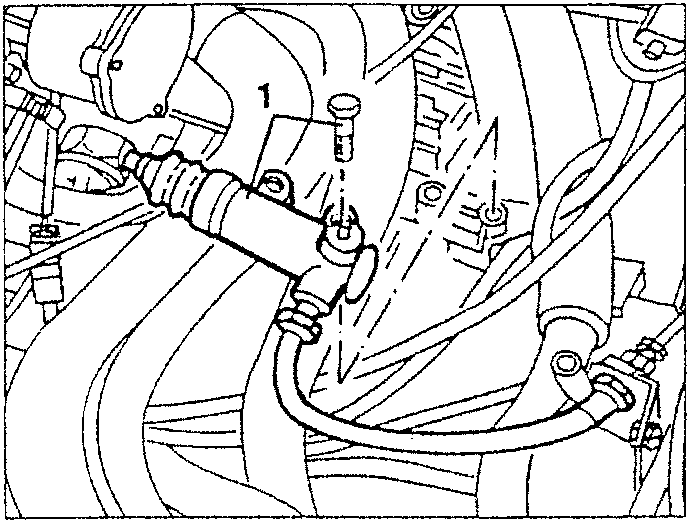

  1. Slacken the screws fastening the clutch control cylinder, then move it to one side without disconnecting the control hose.
Clutch control cylinder with screws and control hose
  • Raise the vehicle.

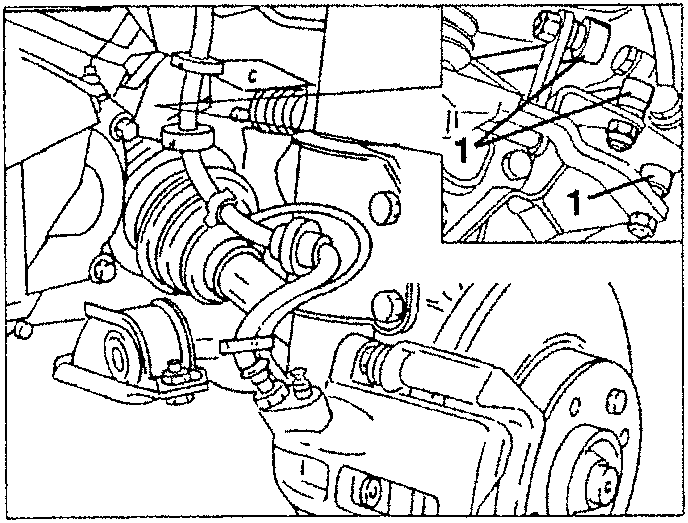

  1. Disconnect the gear control rod.
Gear control rod disconnection point

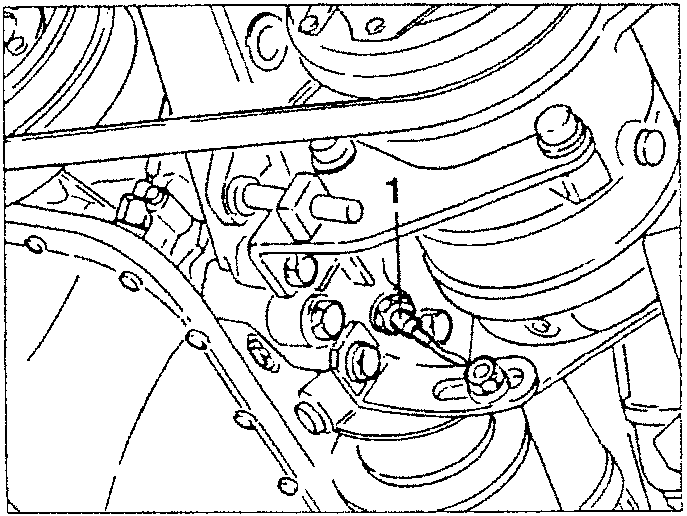

  1. Disconnect the electrical connection from the engine oil minimum pressure warning light sensor.
Electrical connection for oil pressure sensor

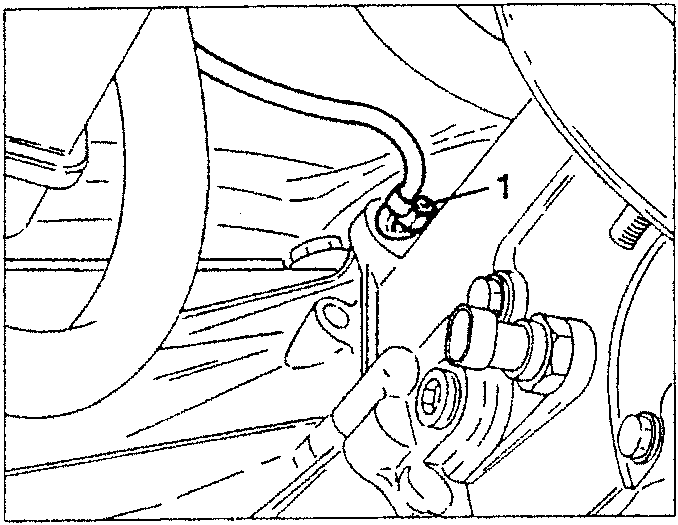

  1. Disconnect the ground point of negative (-) terminal of battery.
Negative battery terminal ground point
  • Drain off engine oil (see GROUP 00).

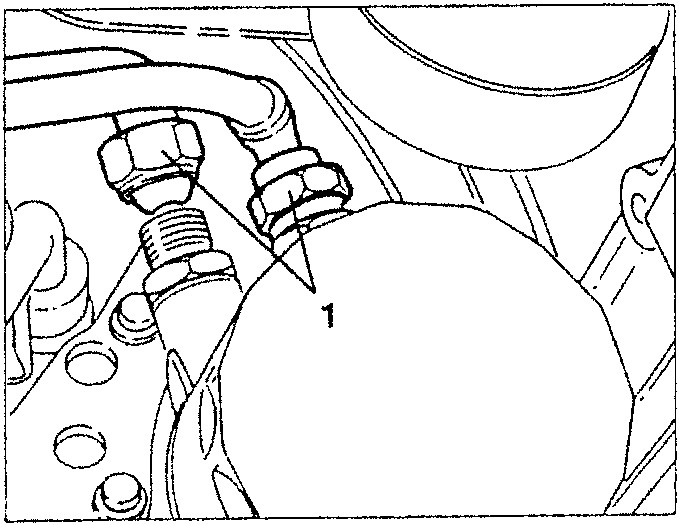

  1. Disconnect the two oil to radiator delivery and return connectors from the oil filter support.
Oil delivery and return connectors on oil filter support

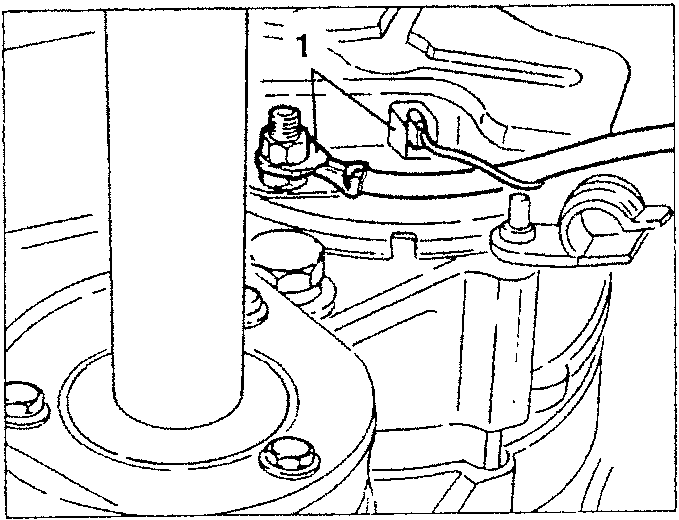

  1. Disconnect the electrical connections from the alternator.
Electrical connections to alternator
