1.9 TD and TD Cat engine (1929)Description · page 2 of 10

• Raise the vehicle.

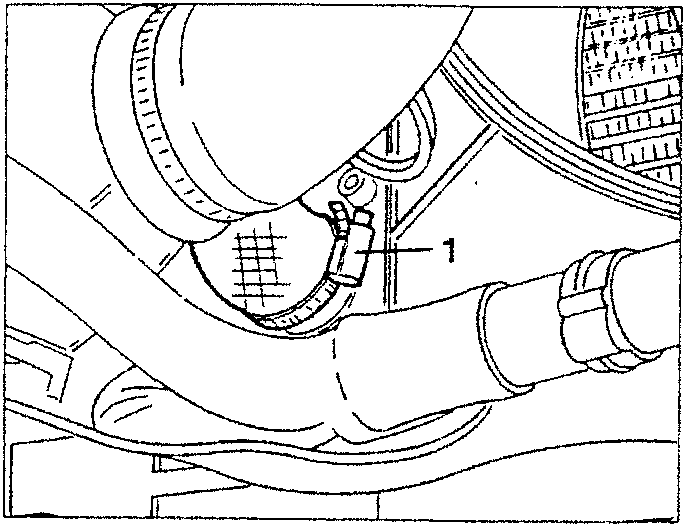

1. Drain off the engine coolant, by disconnecting the liquid outlet sleeve from the radiator and recover it in a suitable container.

• Lower the vehicle.

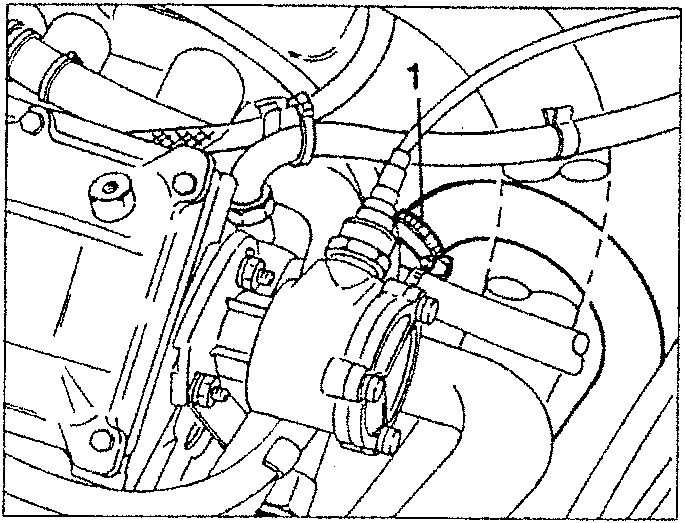

1. Disconnect the engine coolant from radiator return sleeve from the thermostatic cup.

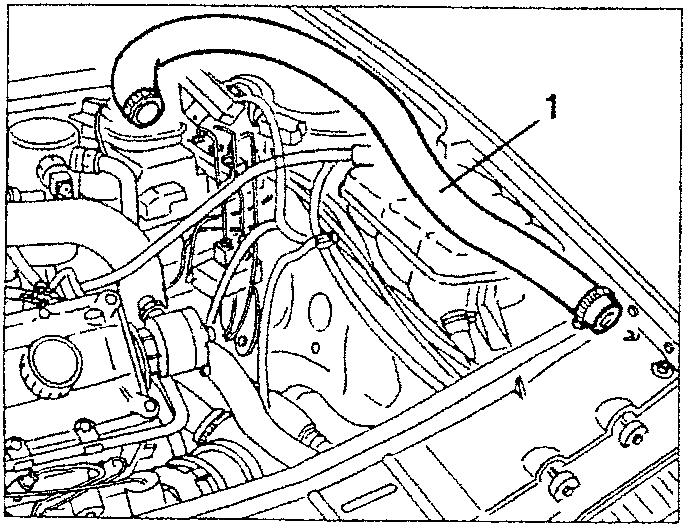

1. Remove the engine coolant from radiator to thermo-static cup delivery sleeve.

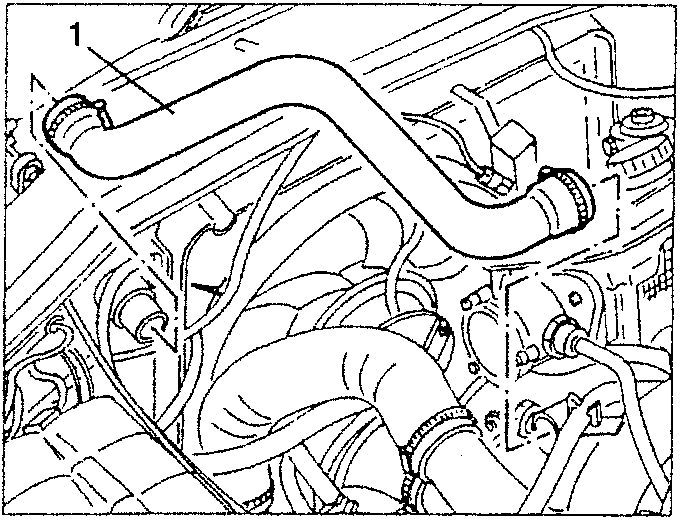

1. Remove the engine coolant from thermostatic cup to radiator delivery sleeve.

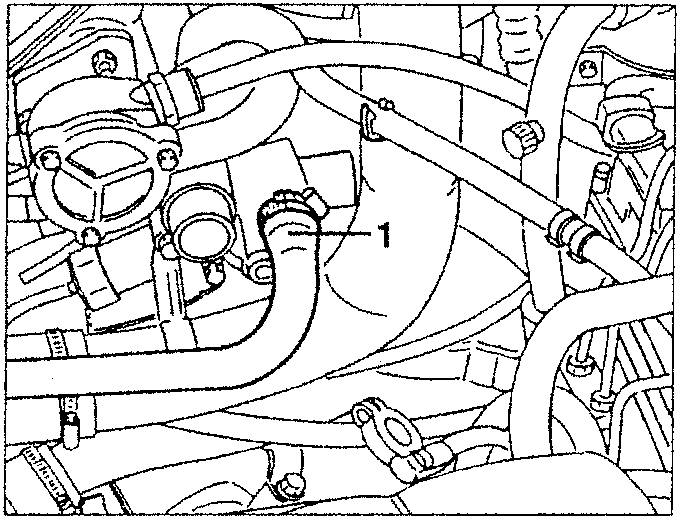

1. Disconnect the system loading sleeve originating from the expansion tank from the thermostatic cup.

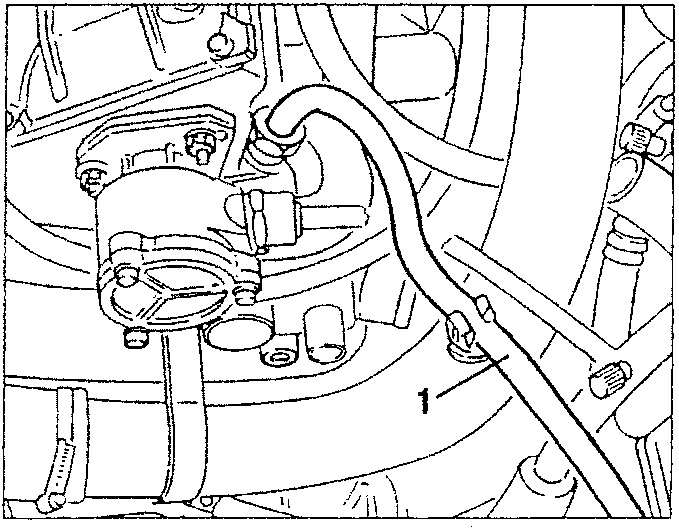

1. Disconnect the engine coolant to expansion and system deaerating tank return pipe from the cylinder head.
