1.9 TD and TD Cat engine (1929)Description · page 8 of 10

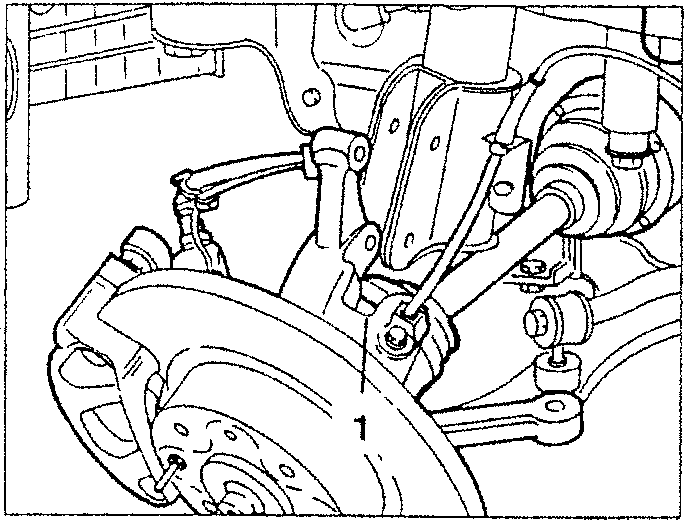

1. Tip forward, as far as possible, the wheel hub and move the axle shaft forward in this way.

• Carry out the same operations on the righthand axle shaft.

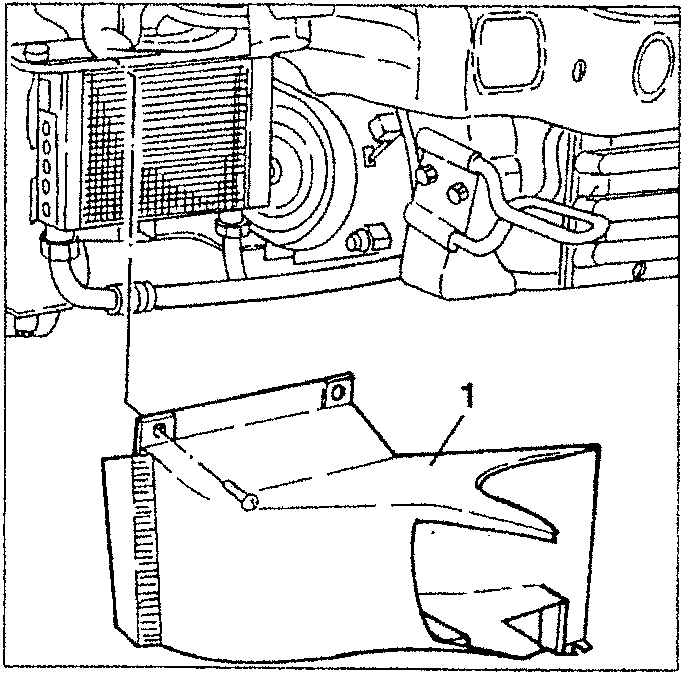

1. Remove the air to engine oil cooling radiator conveyor.

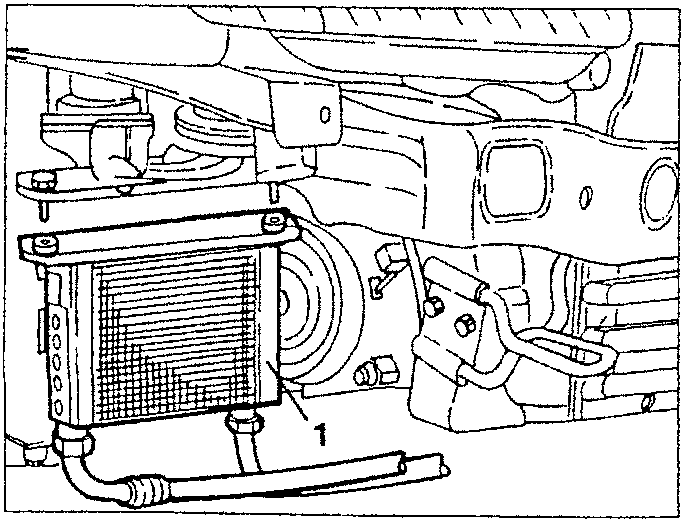

1. Unscrew the fastening screws and remove the oil radiator complete with tubes.

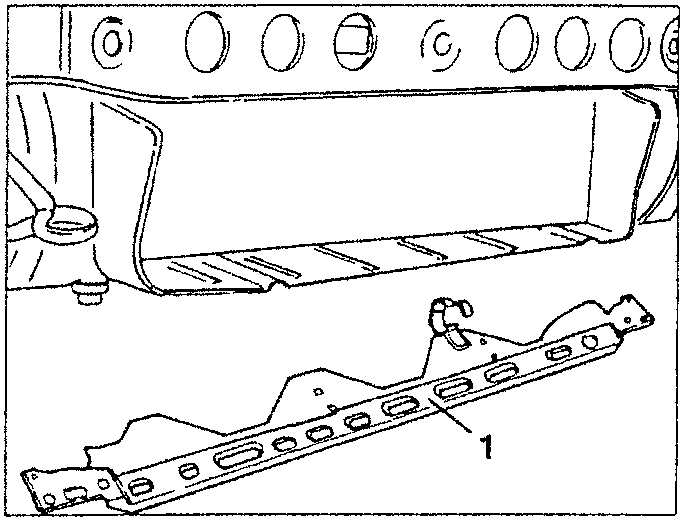

1. Unscrew the fastening screws and remove the lower radiator support cross member.

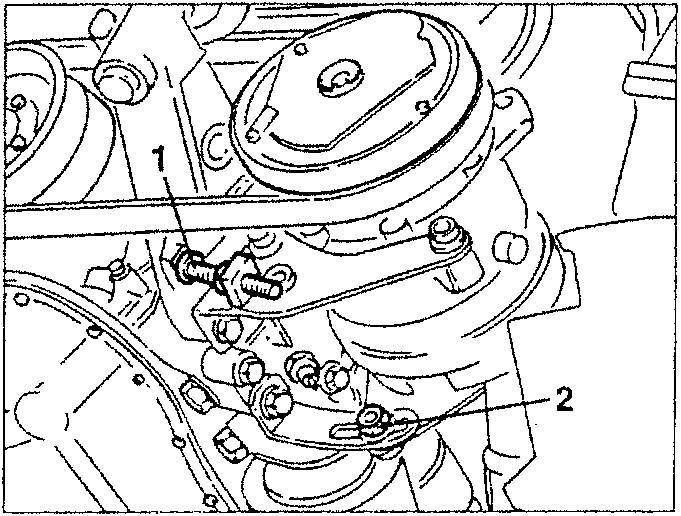

1. Acting on the micrometric tightener, loosen the air conditioning control belt.
2. Unscrew the fastening screws of the air conditioning compressor.

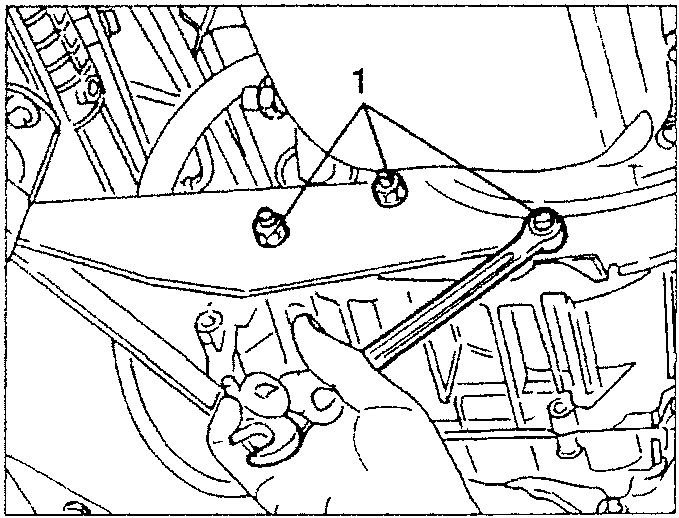

1. Loosen the three gearbox fastening nuts to the relative support bracket.
