TIMING SENSOR

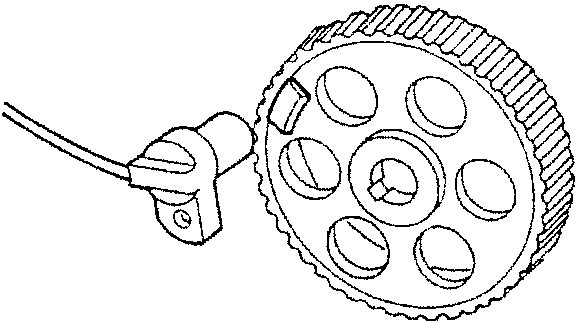

The timing sensor (cam angle sensor) comprises a Hall effect device.

The voltage signal "lowers" sharply when the tooth machined on the camshaft drive pulley opposite the sensor passes in front of it.

Timing sensor and camshaft drive pulley

REMOVAL/REFITTING

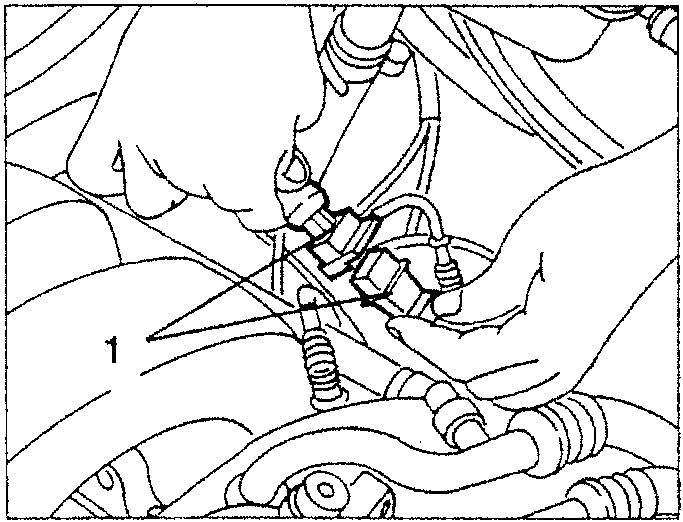

  1. Disconnect the electrical connection of the timing sensor.
Hands disconnecting electrical connection of timing sensor

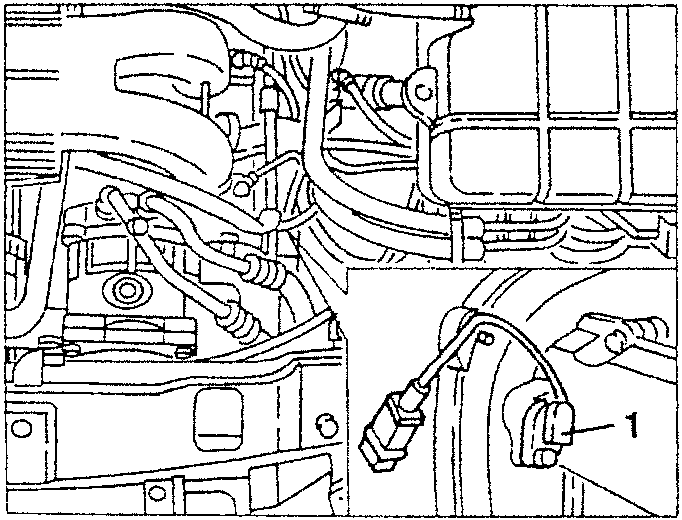

  1. Slacken the fastening screw and remove the timing sensor releasing the wiring from the fastening clamps.
Timing sensor being removed from engine

CHECKING THE AIR GAP

  • Remove the timing sensor (see specific procedure).

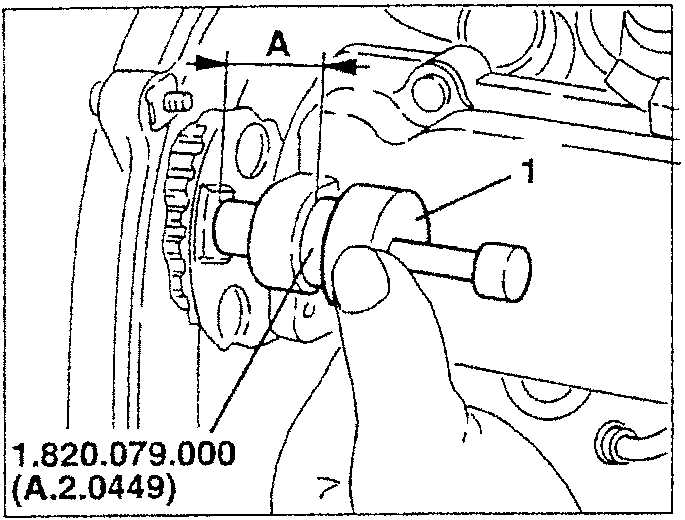

  1. Using tool N° 1.820.079.000 (A.2.0449), measure dimension "A".
Measuring dimension A with tool 1.820.079.000

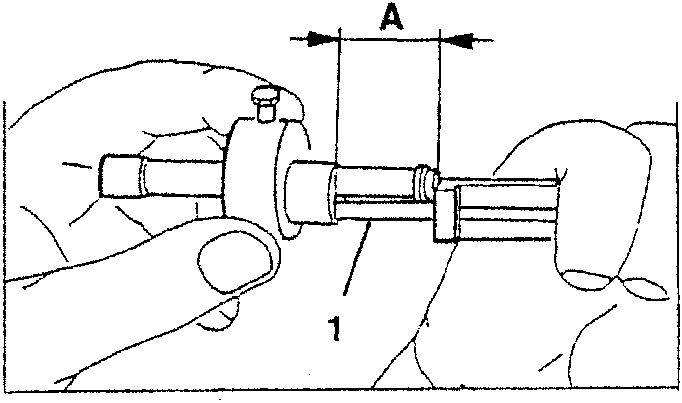

  1. Using a gauge measure dimension "A".
Measuring dimension A with a gauge

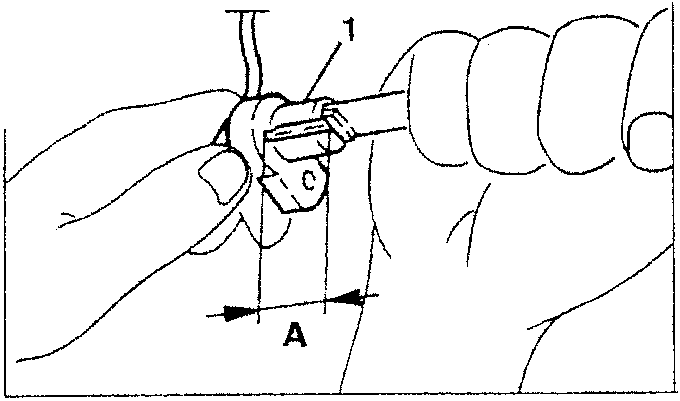

  1. With a dial gauge check the value of "B" on the sensor.
Checking dimension B with a dial gauge
  • Calculate the air gap of the timing sensor and check that it is within the specified limits.
Air gap calculation: A - B = 1.5 mm
