Engine overhaul: 1.9 JTD (AR32302)Lubrication system

LUBRICATION SYSTEM

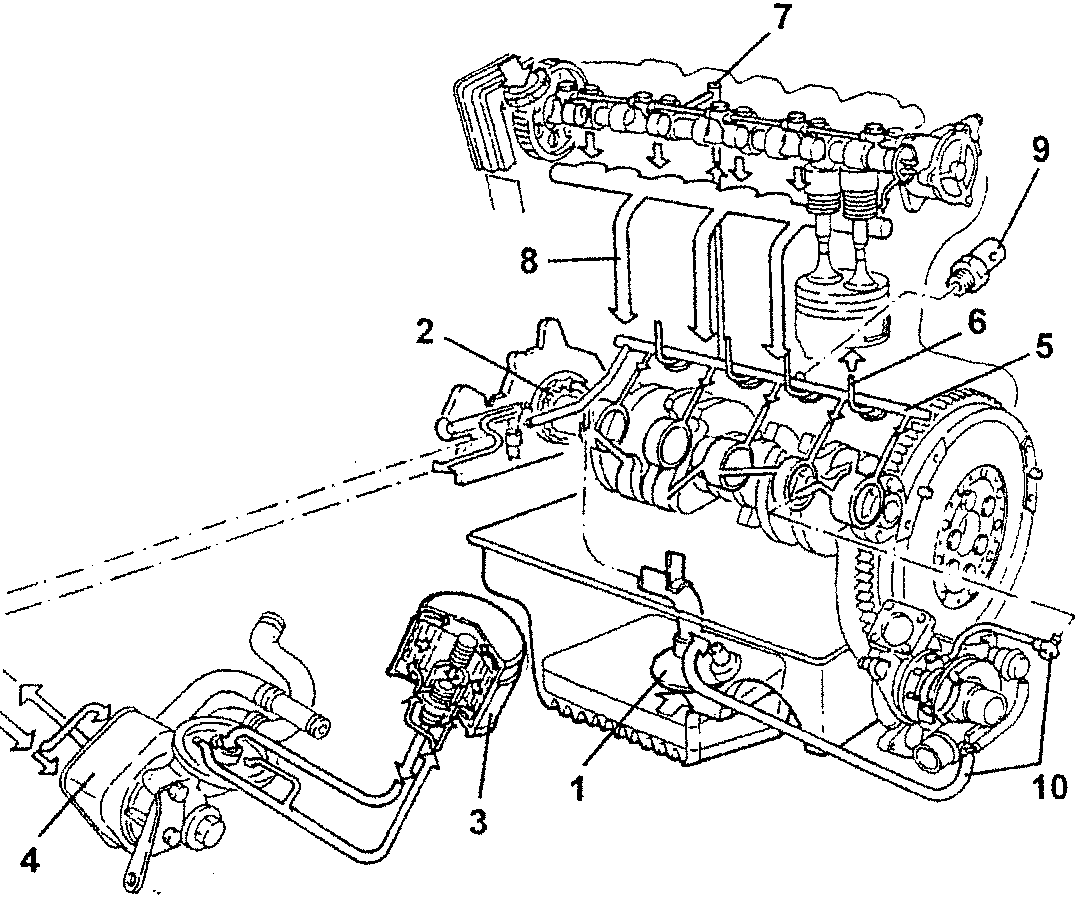

Lubrication system diagram showing engine components with numbered parts
  1. Suction device with filtering mesh
  2. Oil pump
  3. Oil filter cartridge
  4. Heat exchanger (water/oil)
  5. Main longitudinal groove
  6. Spray jets (piston skirt cooling)
  7. Vertical groove (lubricating camshaft bearings)
  8. Oil return to sump
  9. Switch for engine oil pressure warning light
  10. Turbocharger lubrication pipes
