Changing the rear brake pads

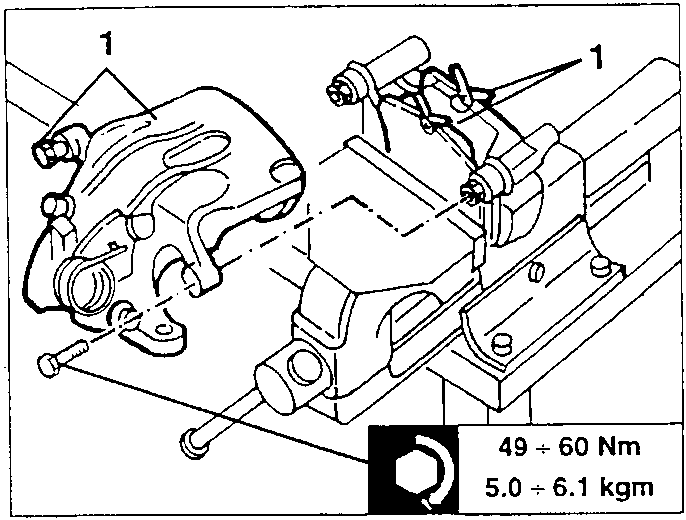

1. Position the brake pads, then assemble the brake caliper on its support bracket tightening the new fastening screws to the specified torque.

49 ÷ 60 Nm
5.0 ÷ 6.1 kgm

CHANGING THE REAR BRAKE PADS

• Remove the rear wheel.

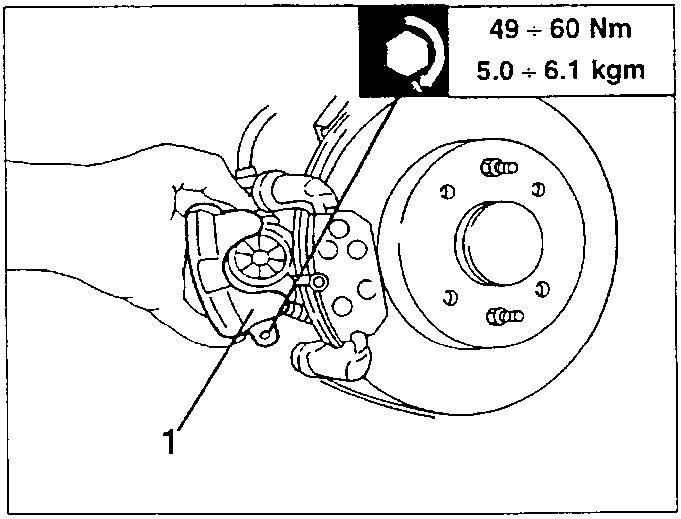

1. Slacken the two screws fastening the caliper body and move it aside to simplify changing the pads.

When refitting change the caliper body fastening screws, tightening them to the specified torque.

49 ÷ 60 Nm
5.0 ÷ 6.1 kgm

1. Change the brake pads.

NOTE: There is no specific direction for assembling the rear brake pads.

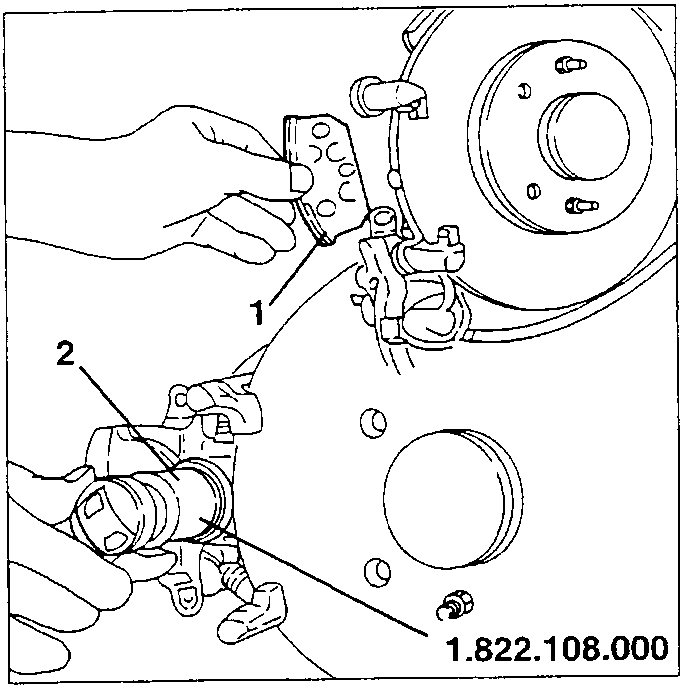

2. Using tool N° 1.822.108.000 move the piston backwards to simplify refitting the caliper, then refit the caliper itself.

1.822.108.000
