Disassembly/reassembly

DISASSEMBLY/REASSEMBLY

See the instructions for the version before the change

CHECKS AND INSPECTIONS

See the instructions for the version before the change

CHANGING THE FRONT BRAKE PADS

• Set the car on a lift.
• Remove the wheel on the side concerned.

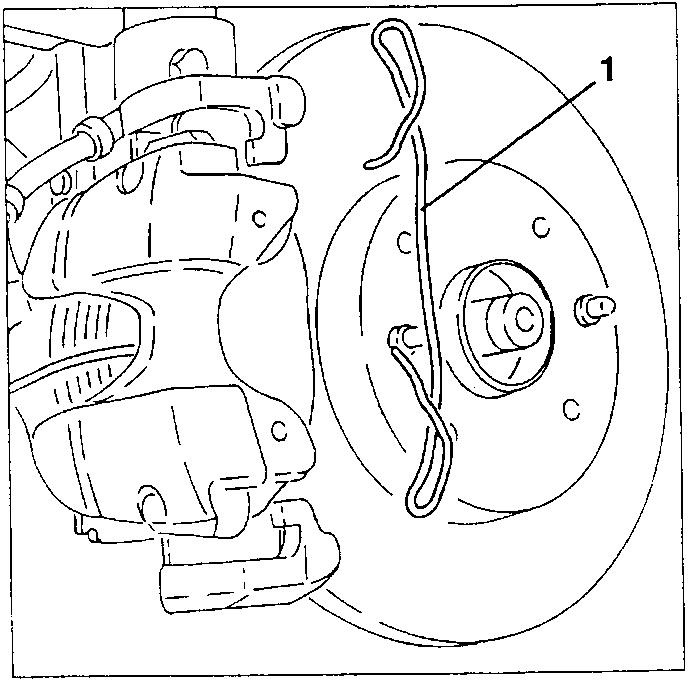

1. Remove the spring from the brake caliper.

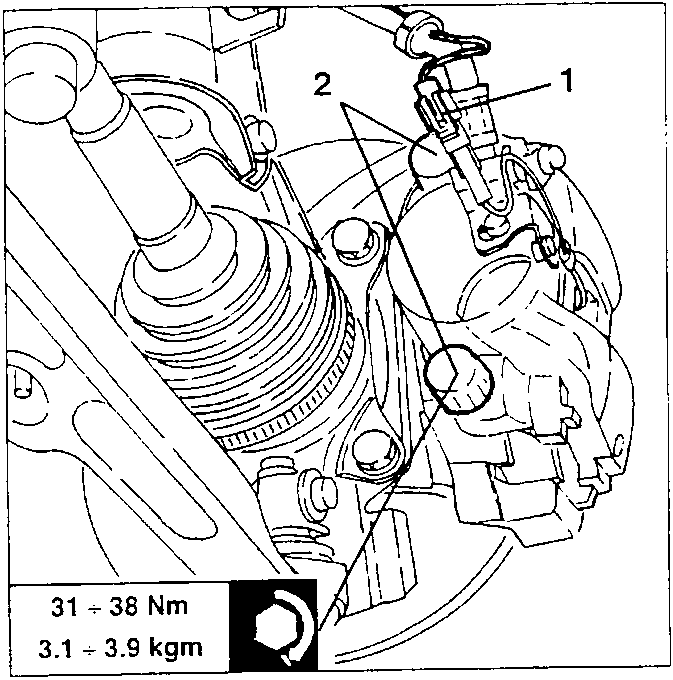

1. Disconnect the brake pad wear sensor electrical connection.
2. Remove the protective caps and slacken the two screws fastening the brake caliper to its support.

NOTE: When refitting change the caliper body fastening screws and tighten them to the specified torque.

31 ÷ 38 Nm
3.1 ÷ 3.9 kgm

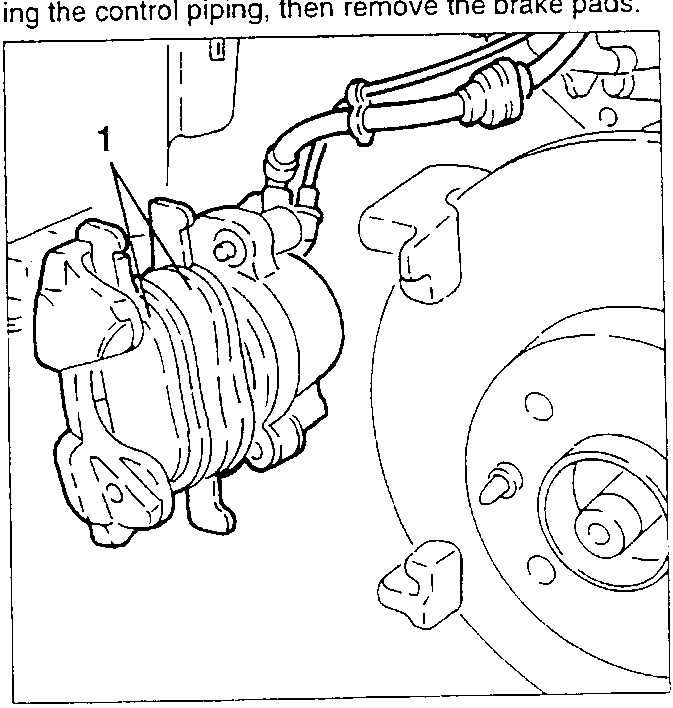

1. Back the caliper off the support, without disconnecting the control piping, then remove the brake pads.
