Rear disk brake

REAR DISK BRAKE

REMOVING/REFITTING

• Set the car on a lift.
• Remove the wheel on the side concerned.

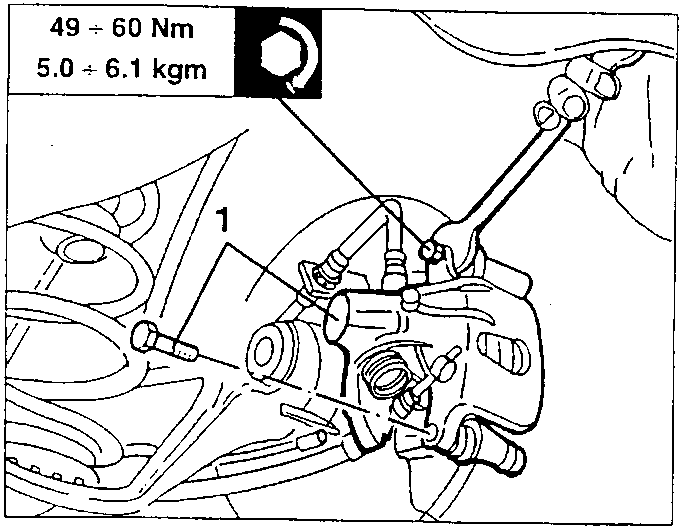

1. Slacken the two screws fastening the brake caliper to its support and move it aside without disconnecting the pipe and the handbrake cable.

49 ÷ 60 Nm
5.0 ÷ 6.1 kgm

When refitting change the caliper body fastenins screws, tightening them to the specified torque.

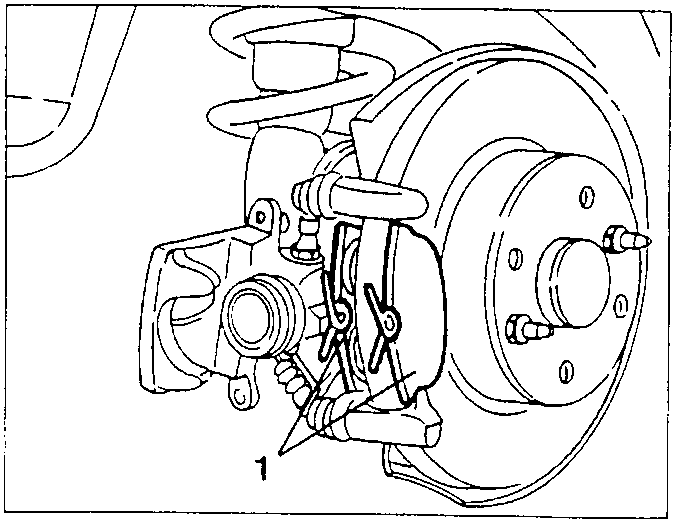

1. Remove the brake pads.

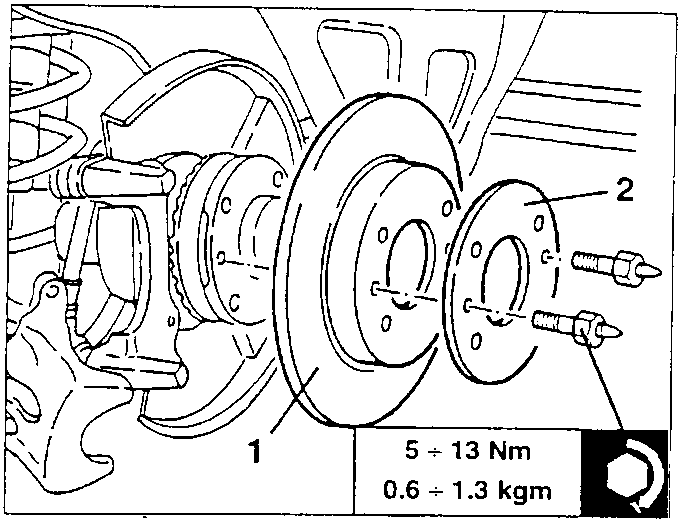

1. Slacken the two fastening pins and remove the brake disk.
2. Retrieve the spacer (where applicable).

5 ÷ 13 Nm
0.6 ÷ 1.3 kgm

CHECKS AND INSPECTIONS

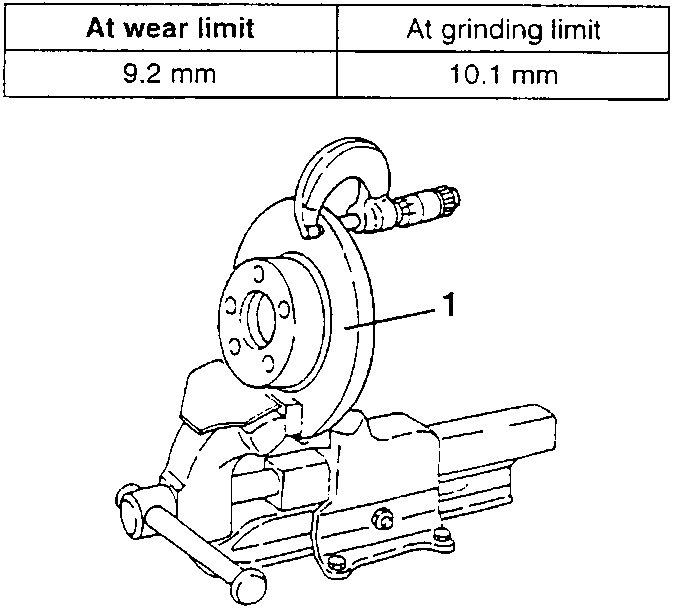

1. Check the thickness of the disks and check that the working surfaces have no deep scores or porosity. If necessary, grind observing the specified tolerances.
