Checks and inspections

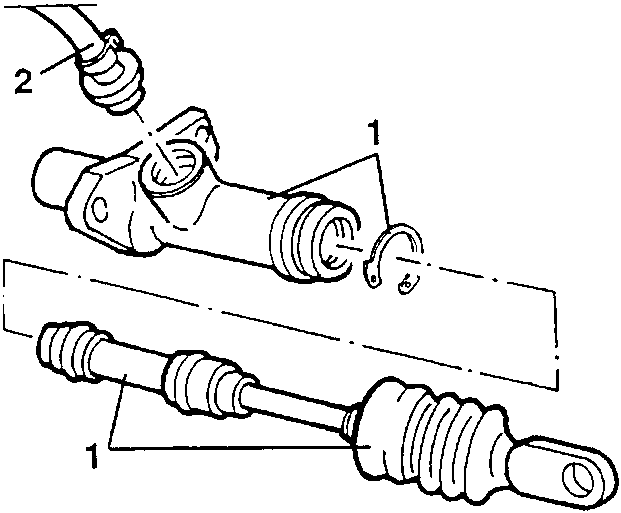

1. Remove the protection boot, remove the retainer ring and withdraw the piston from the pump body.
2. Remove the seal with fluid inlet connection from the reservoir.

CHECKS AND INSPECTIONS

• Check that the piston and the inner surface of the cylinder show no signs of marking, scoring, scraping or rust. If the cylinder body reveals signs of scraping or seizure, change the pump assembly.

CLUTCH PEDAL

REMOVAL/REFITTING

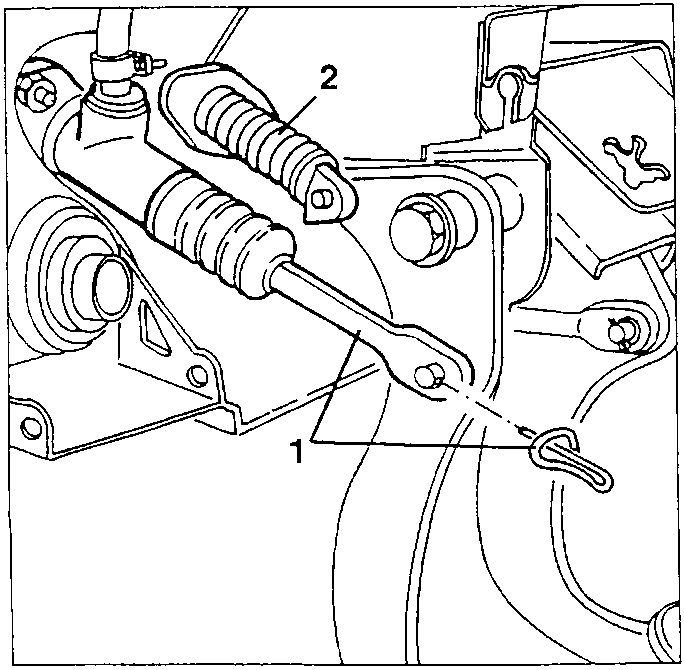

1. Remove the safety catch and disconnect the clutch pump from the pedal.
2. Remove the return spring.

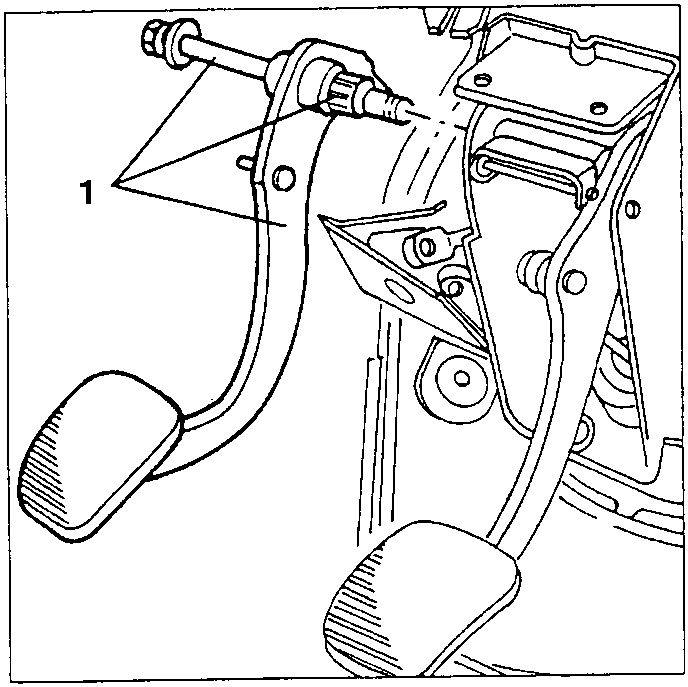

1. Slacken the fastening bolt and withdraw the clutch pedal complete with bush

CLUTCH CONTROL CYLINDER

REMOVAL/REFITTING

• Remove the intake box (see GROUP 10).
• Empty the brake - clutch fluid reservoir, using a suitable syringe.

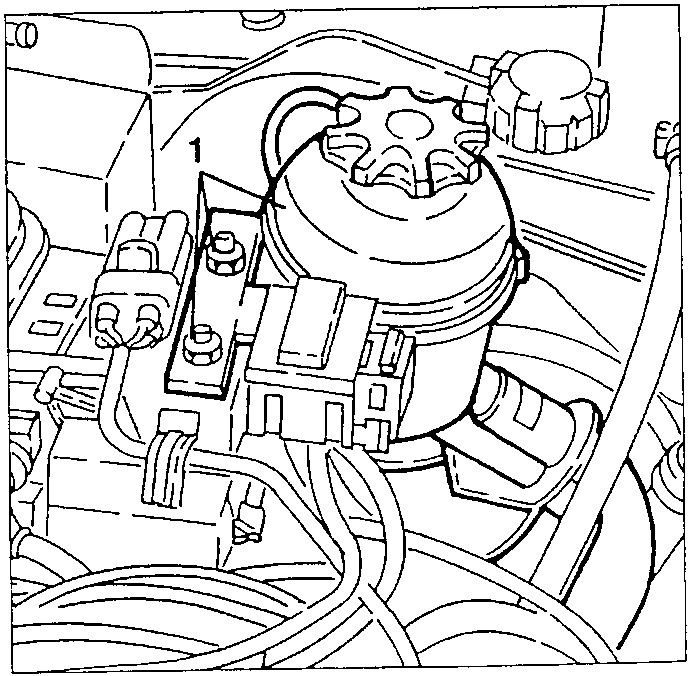

1. Slacken the two fastening nuts and move the power steering tank sideways without removing the hoses.
