Clutch command (16V) › Clutch pump
ClutchClutch pump

CLUTCH PUMP

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  • Empty the brake - clutch fluid reservoir using a suitable syringe.
  1. Slacken the fastening screw and raise the brake - clutch fluid reservoir just enough to disconnect the connection pipe to the clutch pump from it.

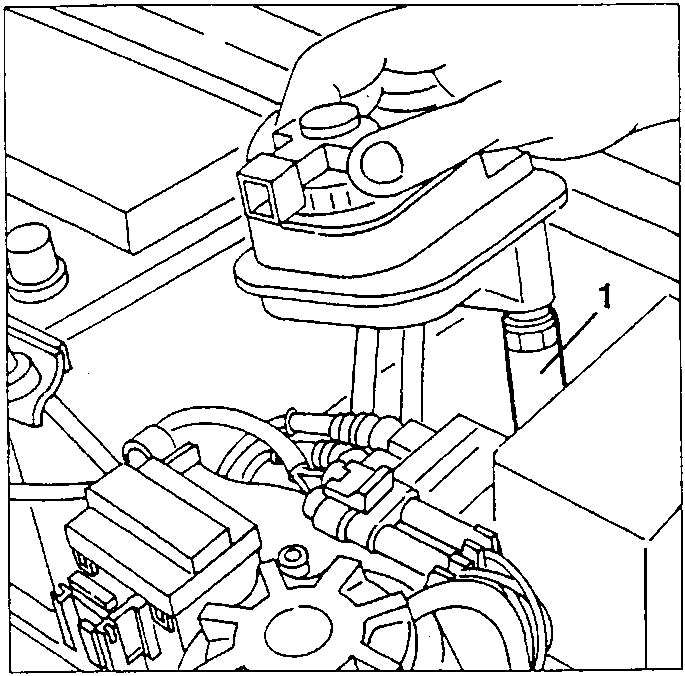

Clutch pump with power steering tank
  1. Slacken the two fastening nuts and move the power steering tank sideways without disconnecting the hoses.

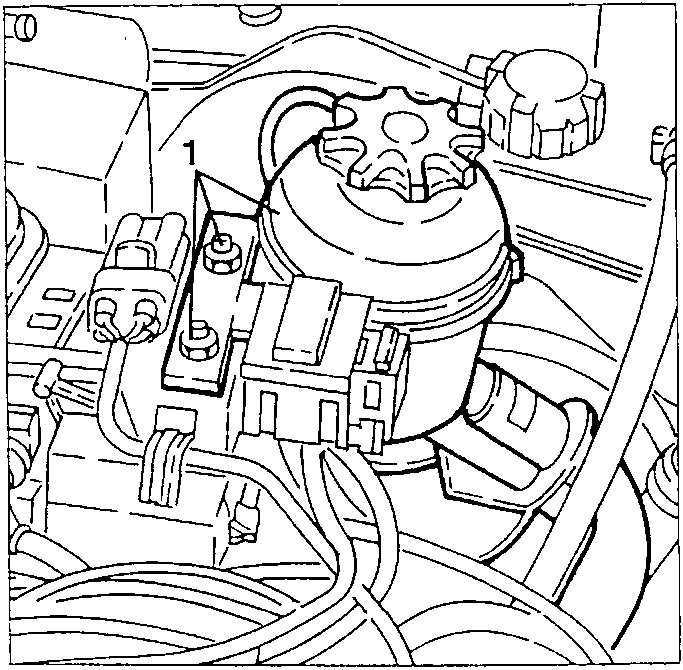

Clutch pump hose connection
  1. Disconnect the intermediate fitting of the hose connecting the pump to the clutch cylinder and freethe hoses in question of their hose clamps.

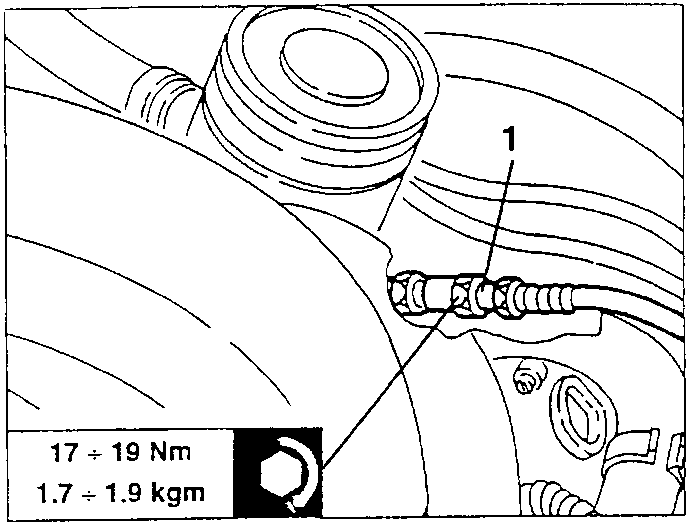

Clutch fluid reservoir connection

17 ÷ 19 Nm
1.7 ÷ 1.9 kgm

  1. Working from the passenger compartment, slacken and remove the left dashboard trim.

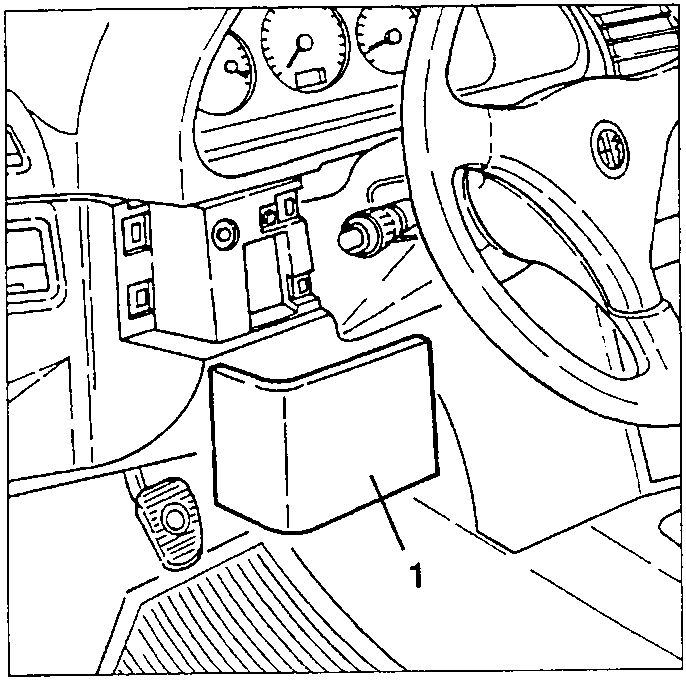

Left dashboard trim removal
  1. Remove the driver’s air vent from the dashboard.

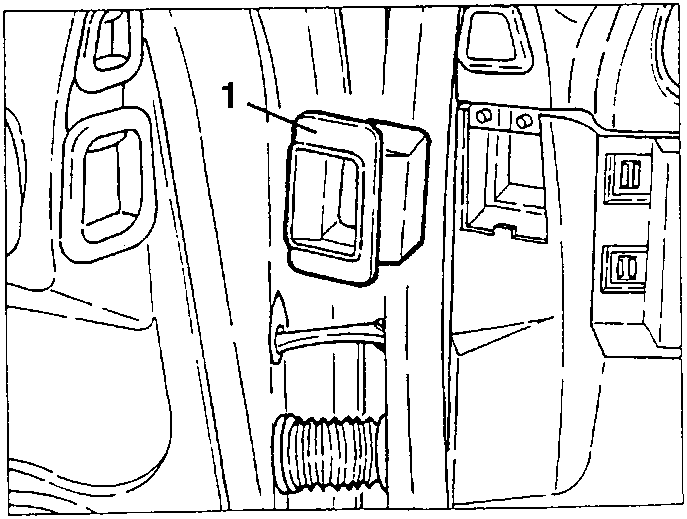

Driver's air vent
