Dis-assembly/re-assembly

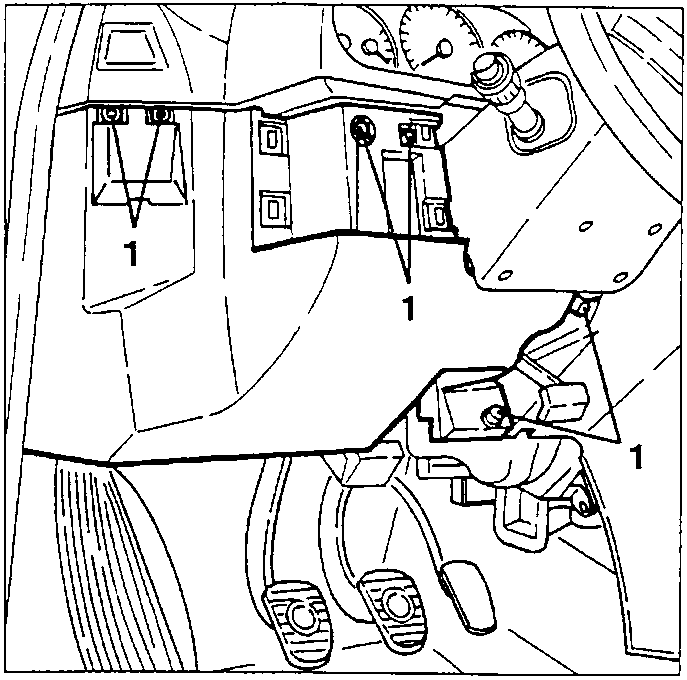

1. Slacken the six fastening screws and remove the fusebox cover.

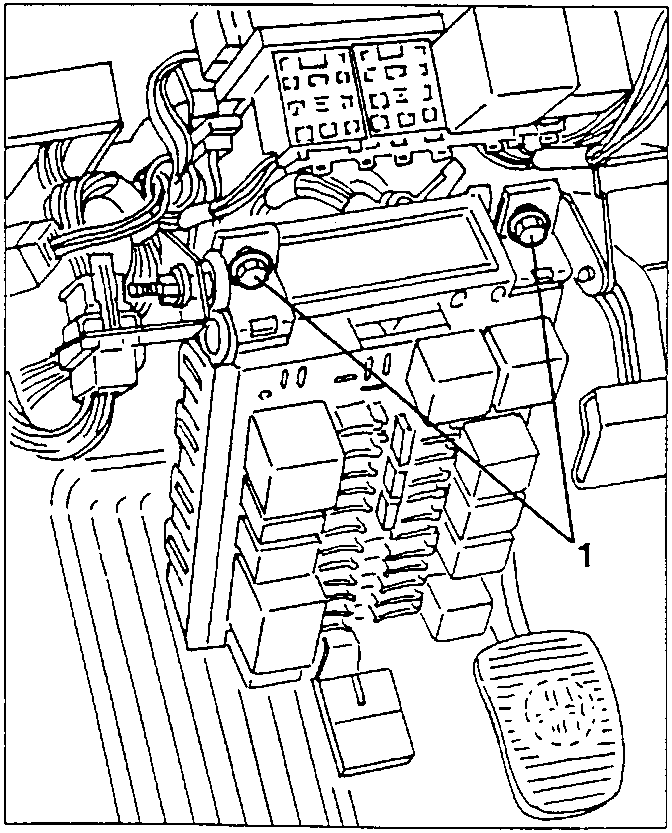

1. Slacken the fusebox fastening nuts and move it sideways.
   - Slacken the fasteners of the fusebox support bracket and move it sideways.

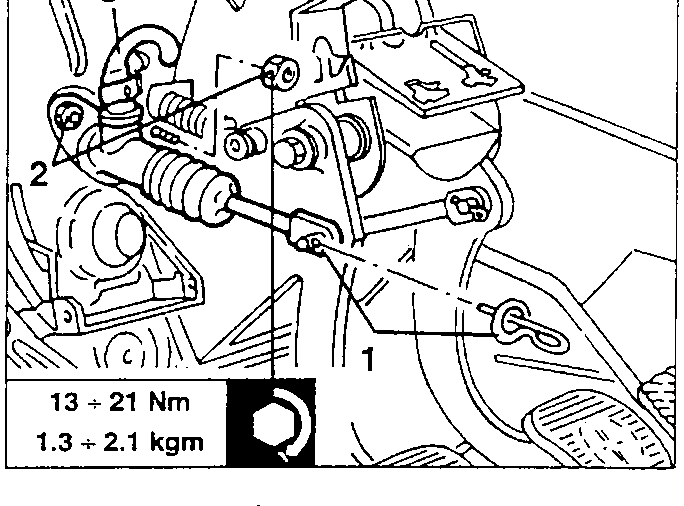

1. Remove the safety catch and disconnect the clutch pump from the pedal.
   2. Slacken the two clutch pump fastening nuts.
3. Move the clutch pump backwards enough to disconnect the reservoir connection pipe from it.

13 ÷ 21 Nm
1.3 ÷ 2.1 kgm

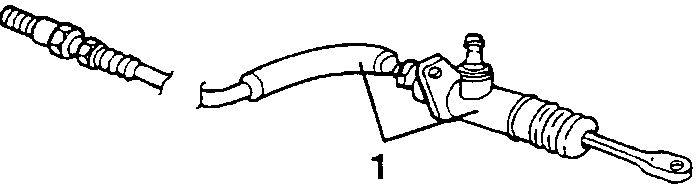

1. Remove the clutch pump complete with connection pipe to the clutch cylinder.

When refitting the pump bleed the air from the system (see specific paragraph).

DIS-ASSEMBLY/RE-ASSEMBLY

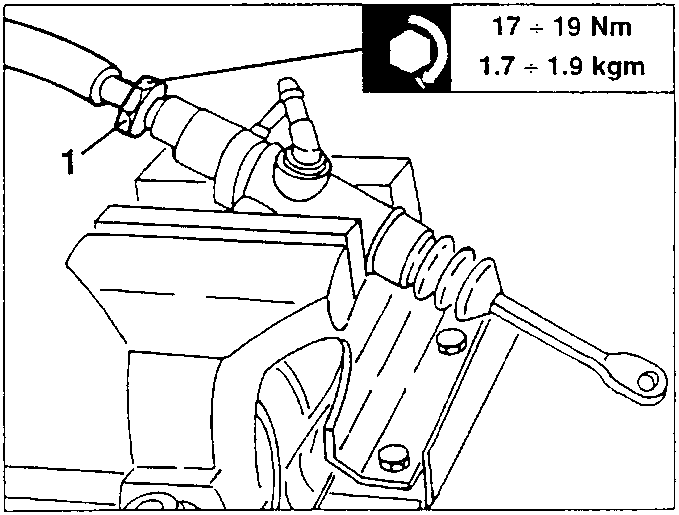

• Position the clutch pump in a vice with protective jaws.

1. Slacken and remove the clutch cylinder connection pipe from the pump.

17 ÷ 19 Nm
1.7 ÷ 1.9 kgm
