Timing sensor (page 2 of 2)

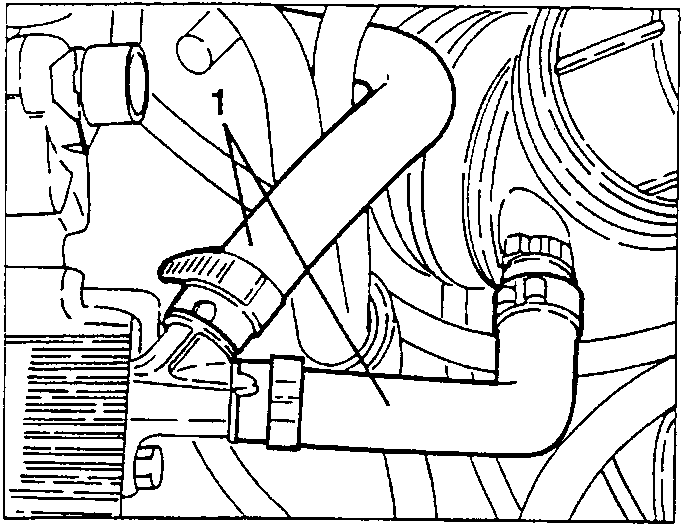

1. Disconnect and remove the oil vapour recovery pipes.

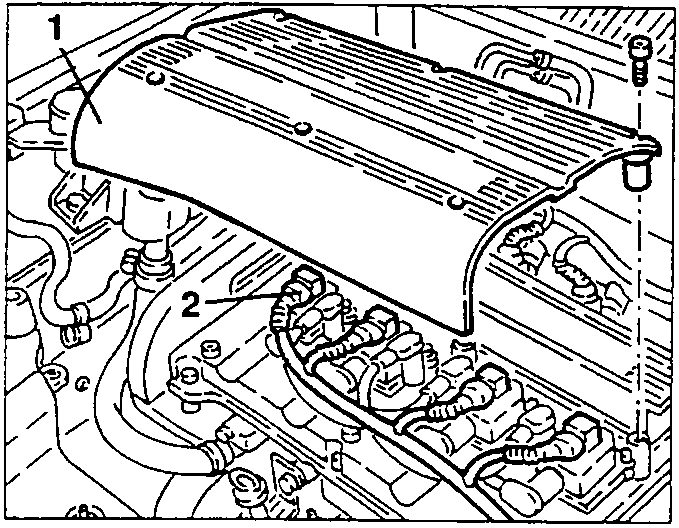

1. Slacken the fastening screws and remove the ignition coils cover.
2. Disconnect the electrical connections from the ignition coils.

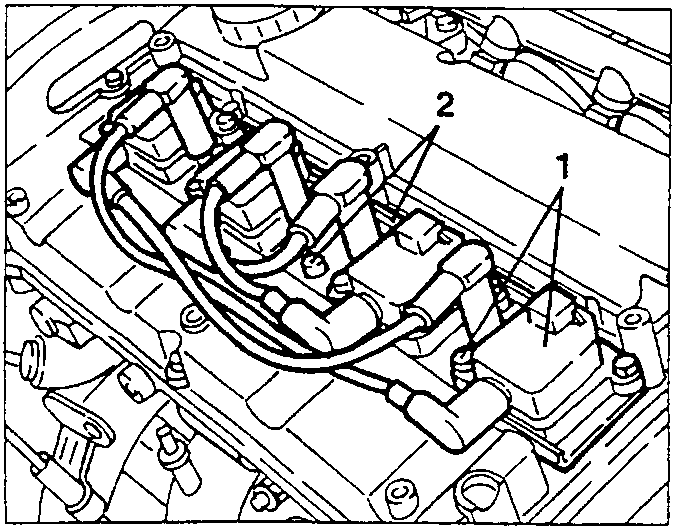

1. Slacken the fastening screws and remove the ignition coils.
2. Slacken the fastening screws and remove the ignition coils support bracket.

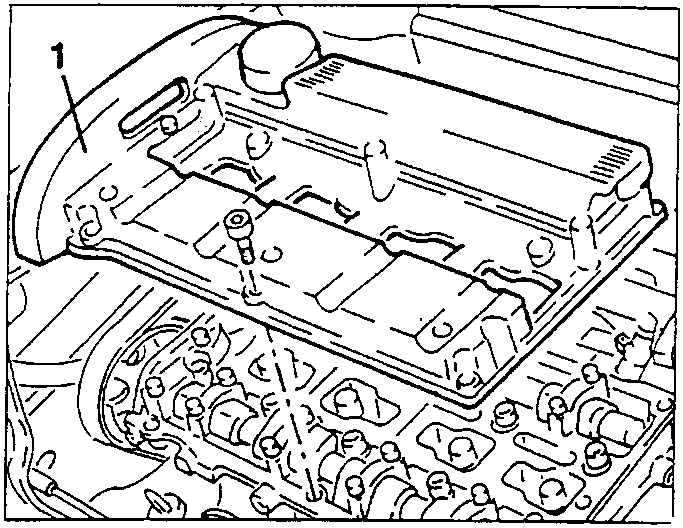

1. Slacken the fastening screws and remove the cylinder head cover complete with gasket.

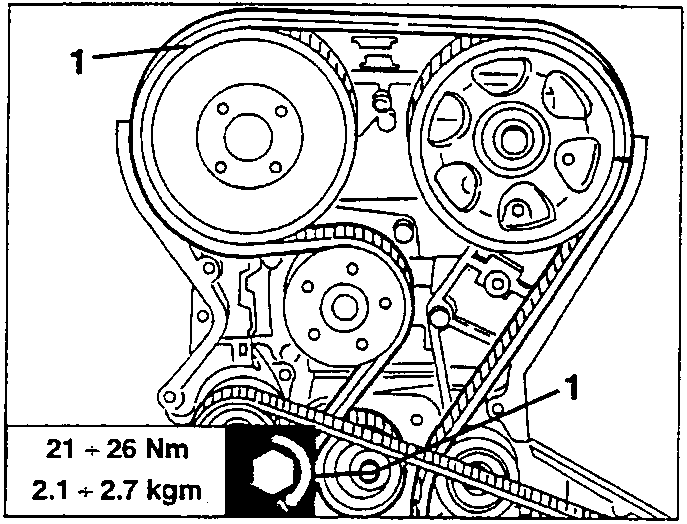

1. Working on the timing gear belt tensioner, loosen the tension on the belt, then take it off the timing gear drive pulleys.

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

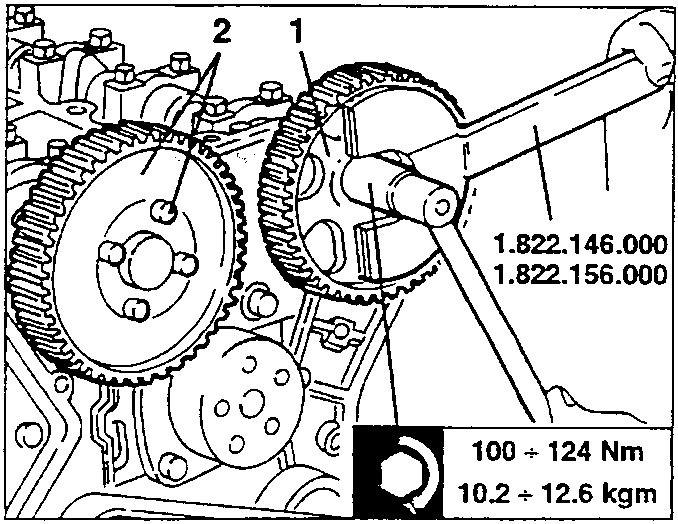

1. Using tools no. 1.822.146.000 and no. 1.822.156.000 slacken the screw fastening the timing gear exhaust side drive pulley and remove it.
2. Slacken the four screws fastening the timing gear intake side drive pulley and remove it.

100 ÷ 124 Nm
10.2 ÷ 12.6 kgm
