Refitting

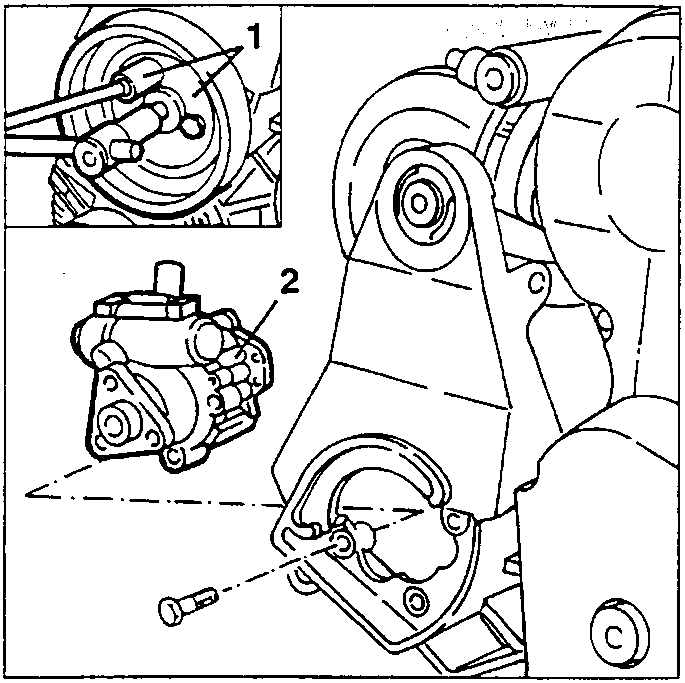

1. Using a 3/8" Allen wrench as counter torque, slacken the three fastening screws and remove the power steering pump pulley.
2. Slacken the three fastening screws and remove the power steering pump.

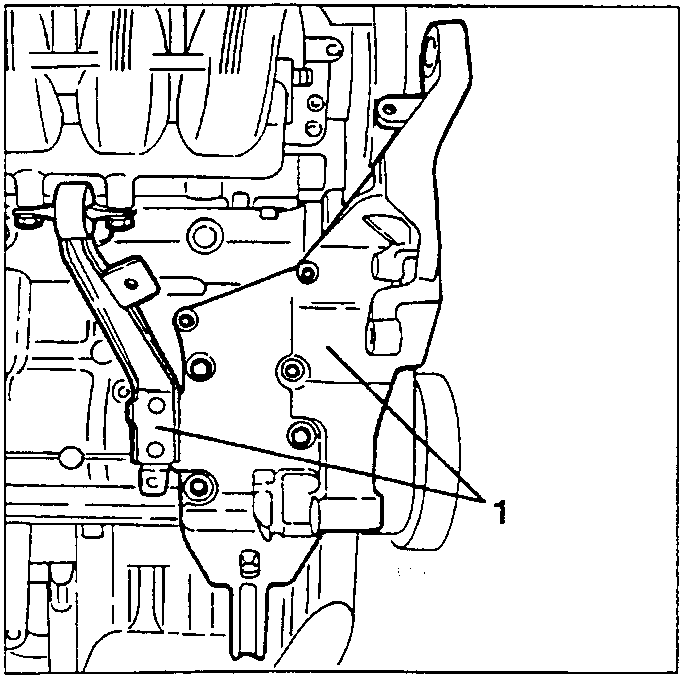

1. Slacken the fastening screws and remove the power steering pump support and alternator complete with intake box support.

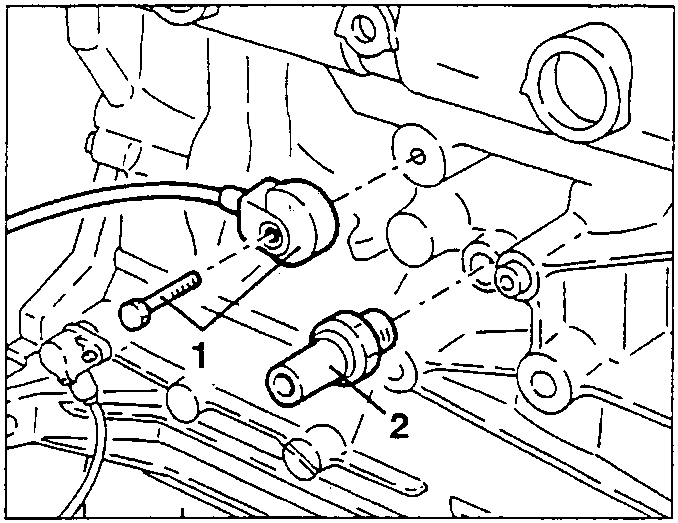

1. Slacken the fastening screw and remove the pinging sensor from the crankcase.
2. Slacken and remove the engine oil pressure meter.

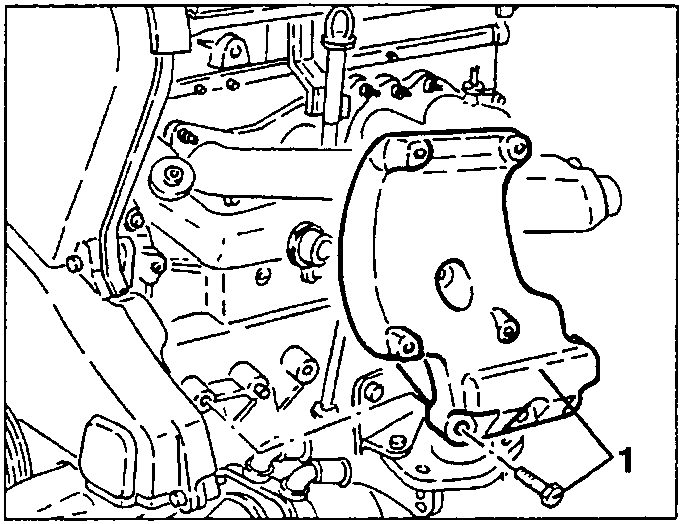

1. Slacken the four fastening screws and remove the air conditioning compressor support.

REFITTING

Reverse the sequence of the operations followed for removal, observing the following instructions:

• Prepare the engine compartment to accommodate the power unit, arranging all the electric cables, pipes, etc. so that they do not interfere with refitting operations.

WARNING: Make sure that the power unit supporting points have been fastened correctly.

• After assembly, check the correct tensioning of the belts, fill the various systems as specified (see GROUP 00).
• Carry out all the necessary checks and operations (see GROUP 00).
