General description (page 8 of 8)

• Lower the hydraulic jack and remove the power unit from the engine compartment.

WARNING: The hydraulic jack must have a capacity of at least 1000 kg.

• Support the power unit with a hydraulic hoist besides the hydraulic jack used for removal.

WARNING: For moving the power unit, use a hydraulic hoist after freeing it from the hydraulic jack.

• Release the power unit from the support tools then position it on a suitable workbench.

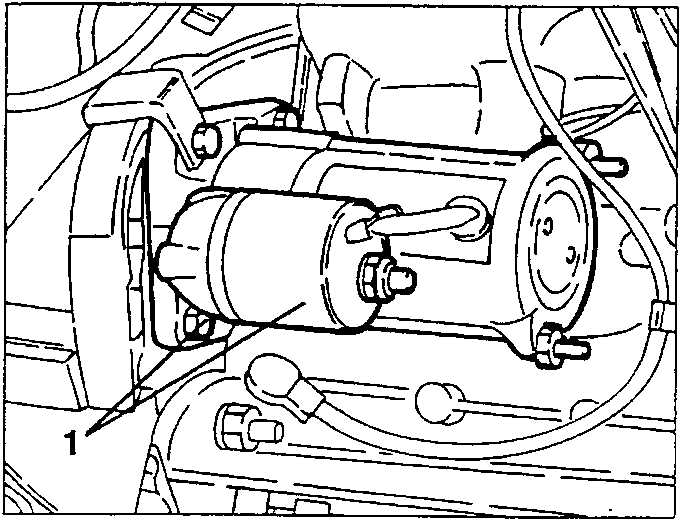

1. Slacken the fastening screws and remove the starter motor.

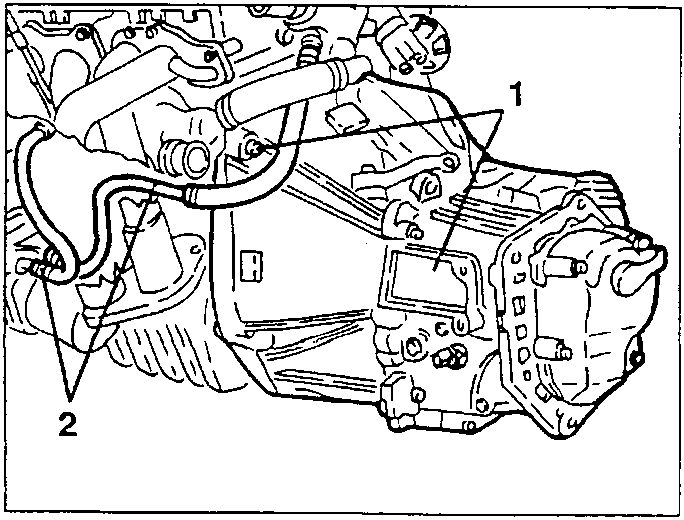

1. Slacken the fastening screws and nuts and remove the gearbox and differential unit.
2. Remove the two heat exchanger coolant delivery and return pipes.

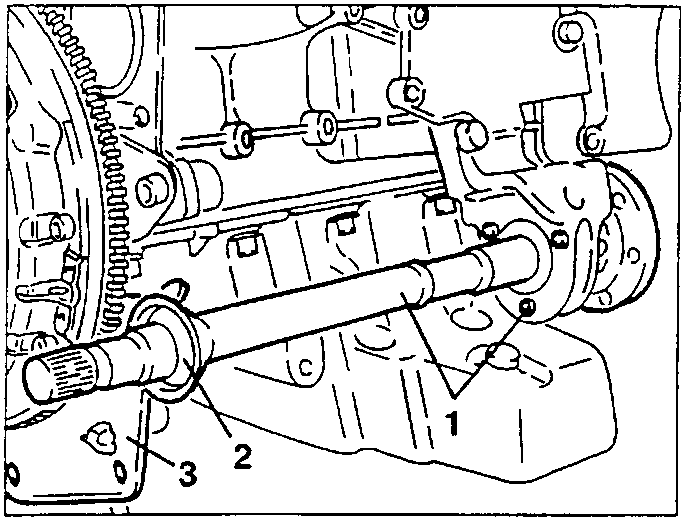

1. Slacken the three fastening screws and remove the lay shaft.
2. Remove the dust guard ring.
3. Remove the lower flywheel cover.

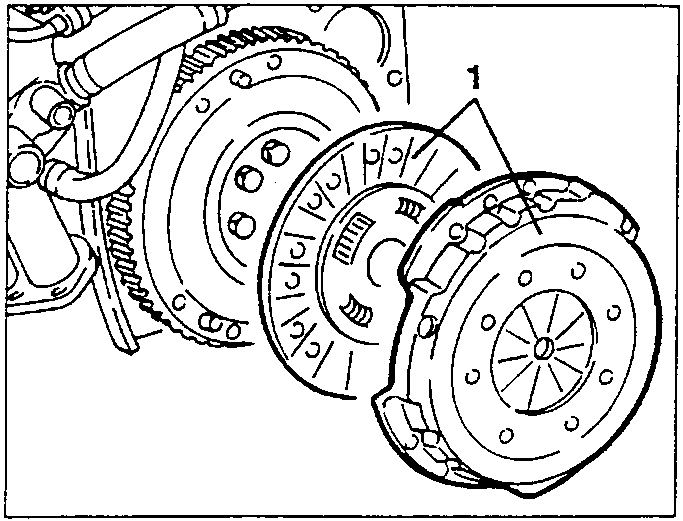

1. Slacken the fastening screws and remove the pressure plate body and clutch plate.

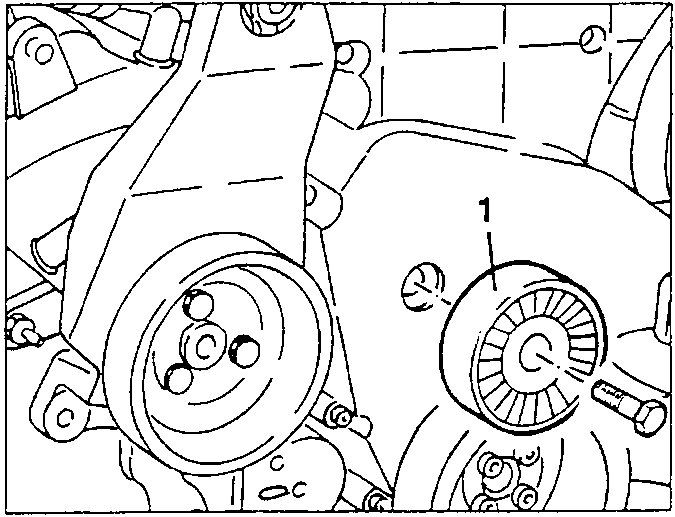

1. Slacken the fastening screw and remove the auxiliary components drive belt guide pulley.
