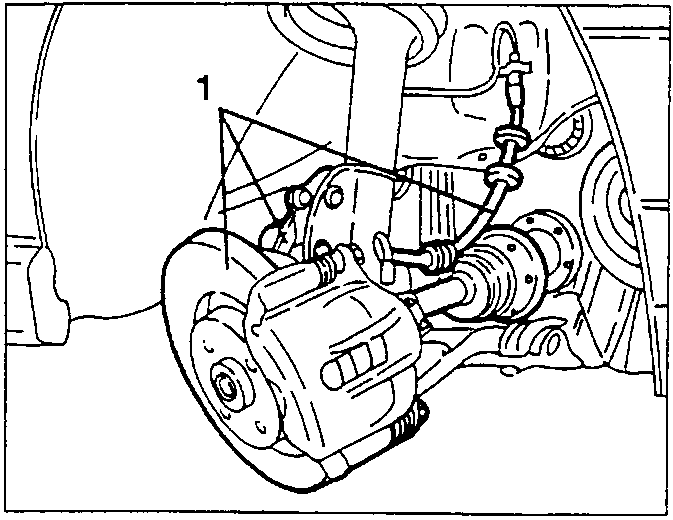

1. Release the brake pipes and A.B.S. sensor cables from their clamps, then turn the wheel hubs forwards as far as possible to move the axle shafts forwards.

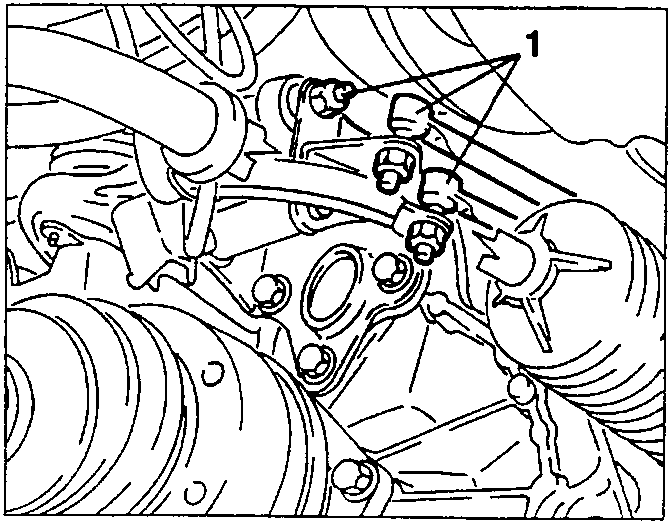

1. Working from the wheelhouse, slacken the fastening nuts and disconnect the gearshift control rods.

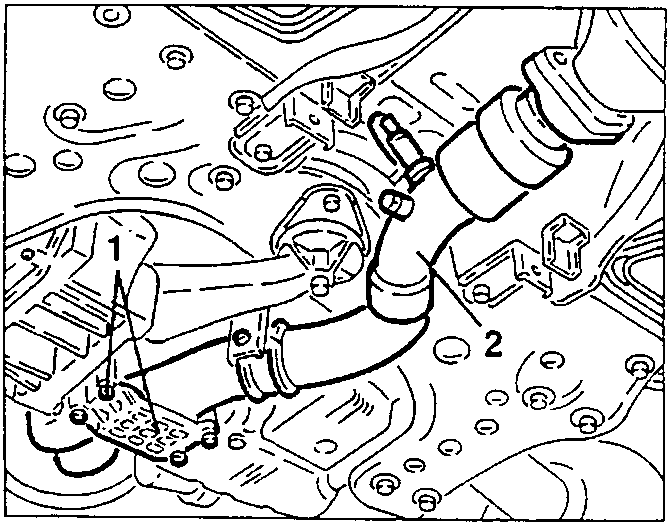

1. Slacken the fastening screws and remove the reinforcement bracket.
   2. Remove the front section of the exhaust pipe complete with lambda probe after slackening their fastenings.

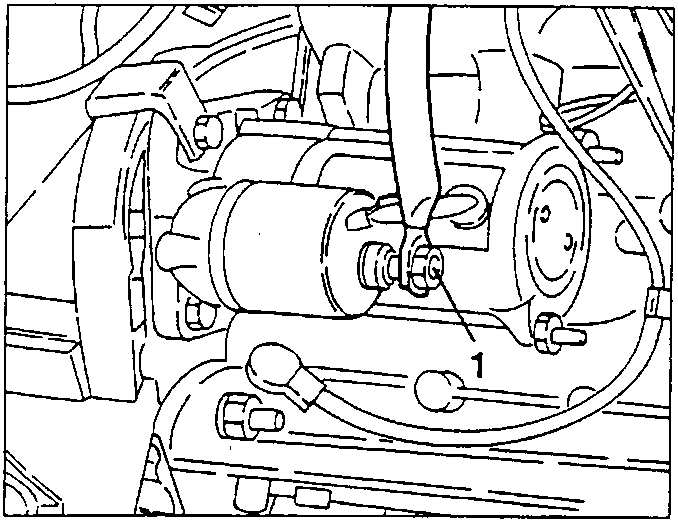

1. Disconnect the electrical connections from the starter motor.

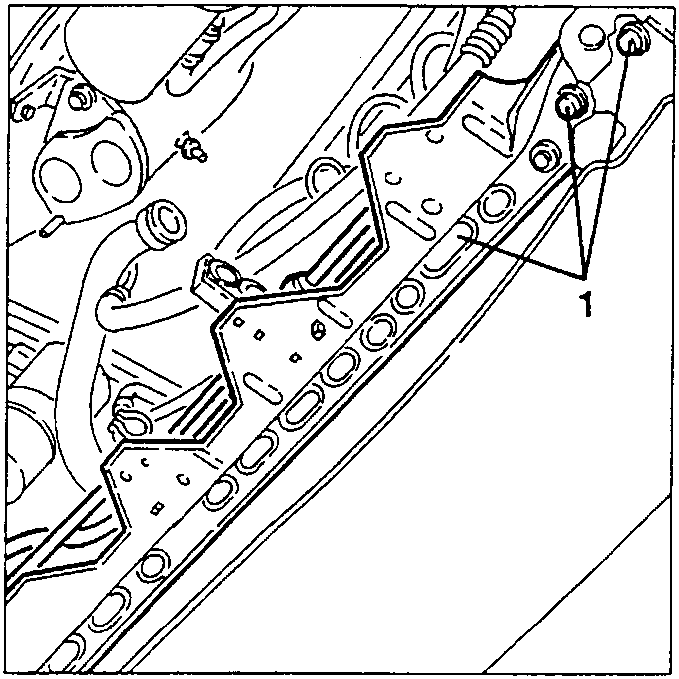

1. From the lower crossmember prise the power steering pipes, then slacken the fastening screws and remove them.

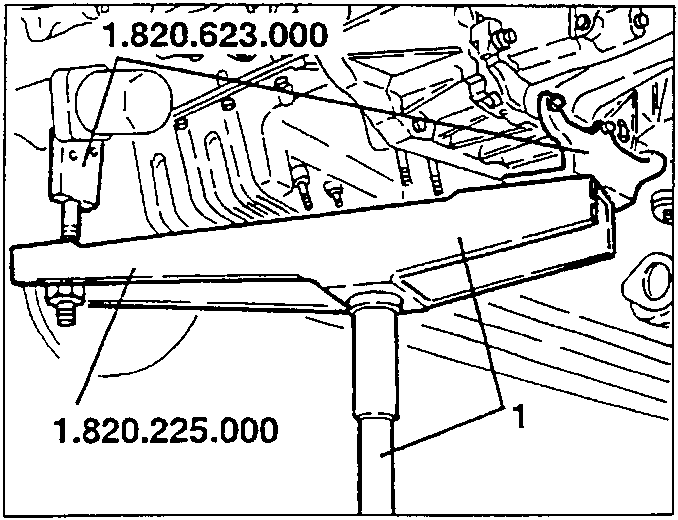

1. Position a hydraulic jack complete with tools no. 1.820.225.000 and no. 1.820.623.000 as illustrated.
