Removal/Refitting (1970 T. SPARK 16V)

EngineGeneral description · page 7 of 8

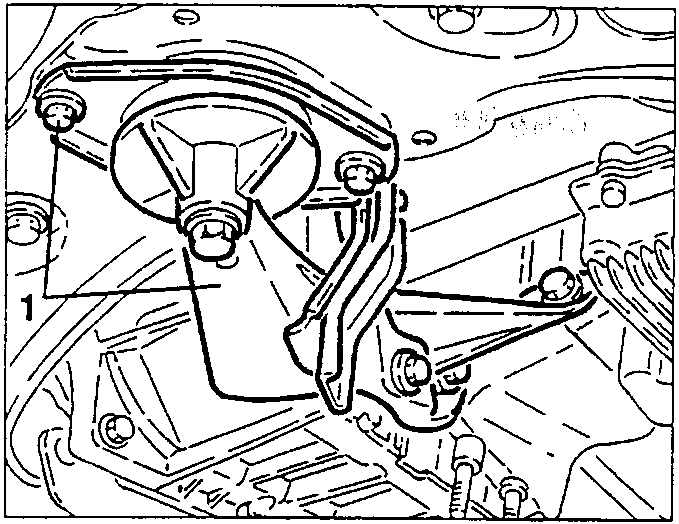

1. Slacken the fastening screws and remove the rear power unit support.

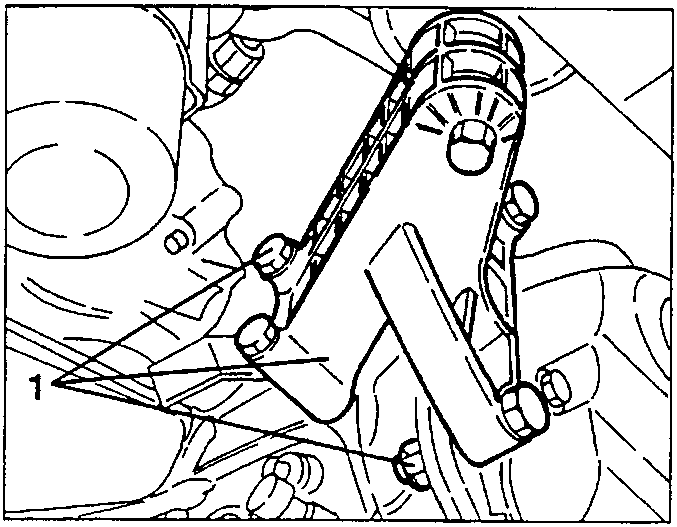

1. Slacken the fastening screws and bolts and remove the gearbox side power unit support.

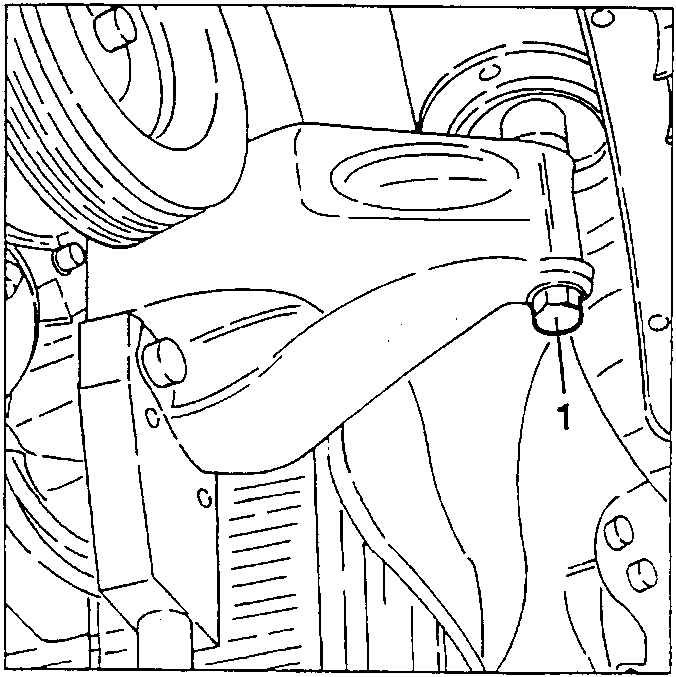

1. Slacken the screw fastening the camshaft side power unit support.

• Lower the power unit just enough with a hydraulic jack to be able to remove the alternator, proceeding as described below:

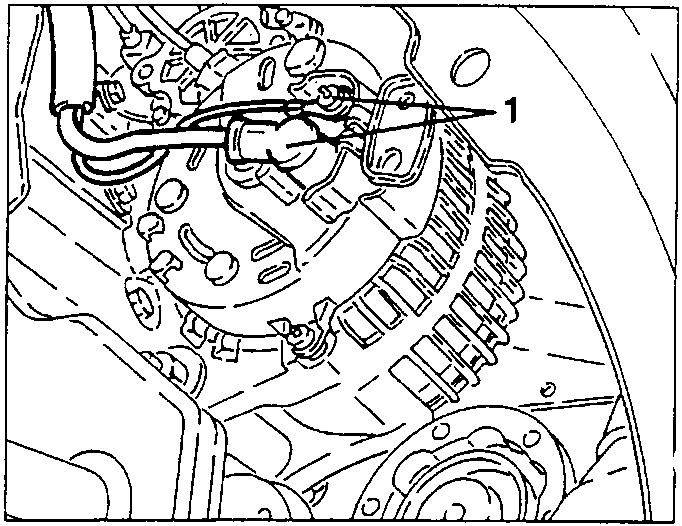

1. Disconnect the electrical connections of the alternator.

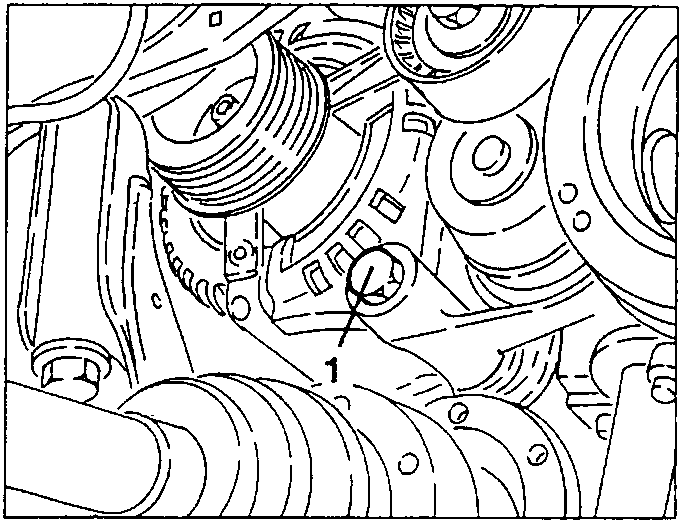

1. Slacken the two bolts fastening the alternator to the support bracket.

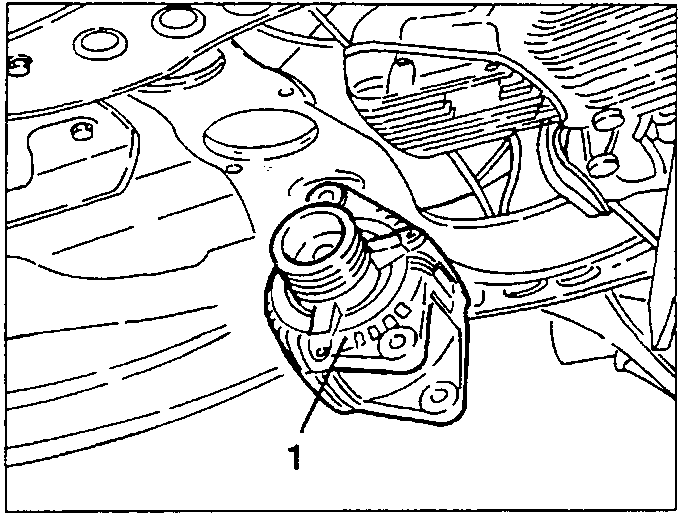

1. Remove the alternator withdrawing it from under the car as illustrated.
