General description (page 3 of 8)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Removal/Refitting (1970 T. SPARK 16V)

EngineGeneral description · page 3 of 8

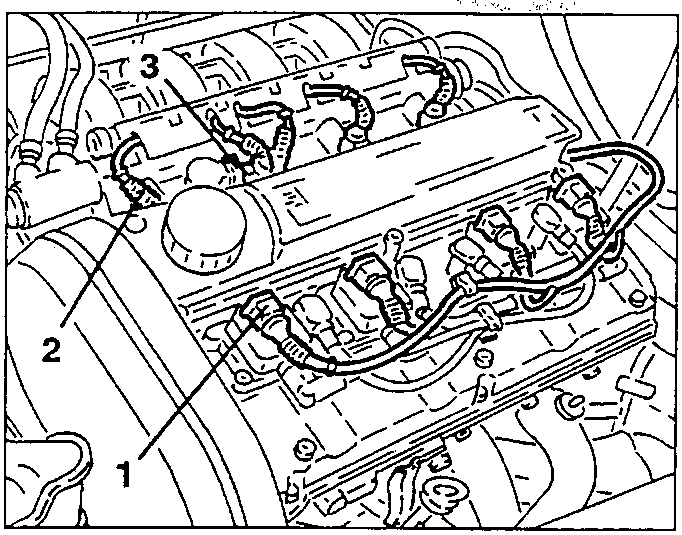

1. Disconnect the electrical connections ignition coils.
2. Disconnect the electrical connections from the electroinjectors.
3. Disconnect the electrical connection from the timing variator solenoid.

• Disconnect the earth cable from the cylinder head.

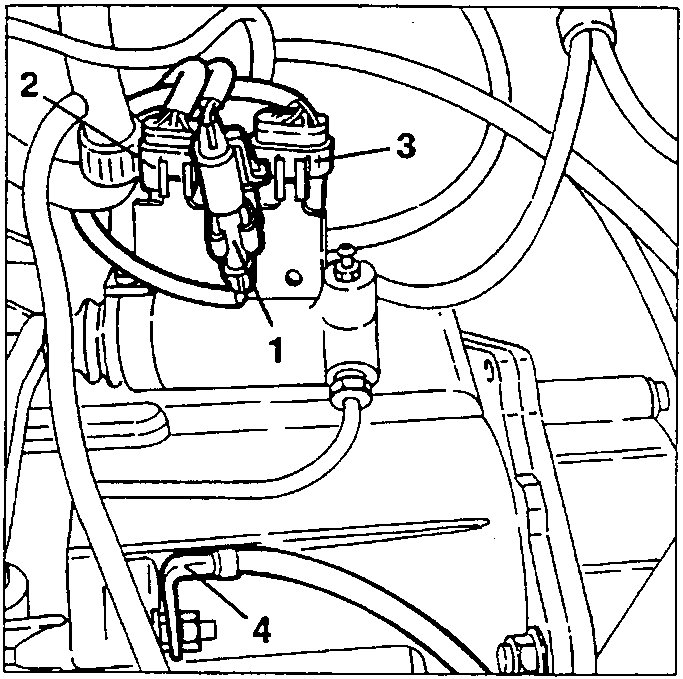

1. Disconnect the electrical connection of the starter motor.
2. Disconnect the electrical connection of the tachometric sensor.
3. Disconnect the electrical connection of the injection system.
4. Disconnect the earth cable from the gearbox cover.

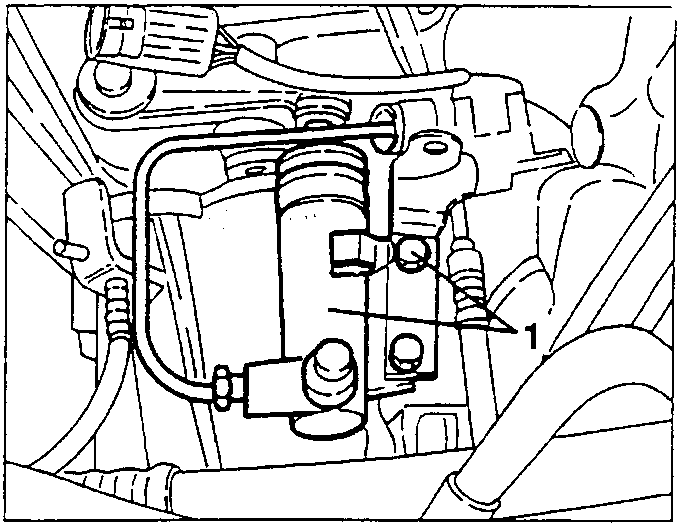

1. Slacken the fastening screws, then move the clutch control cylinder without disconnecting the pipes.

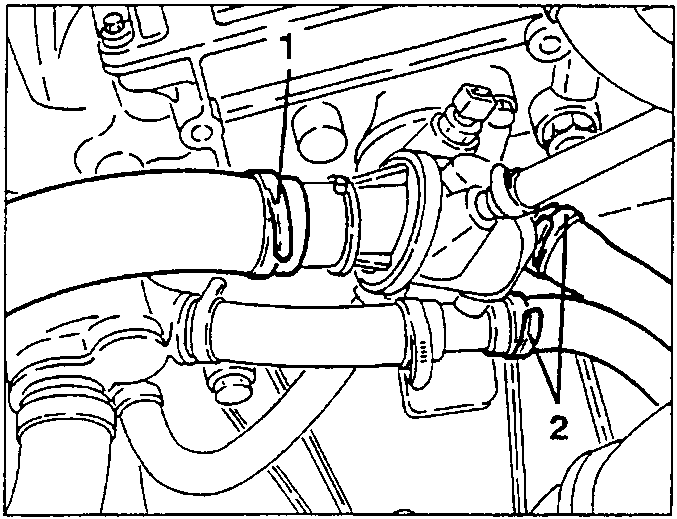

1. Disconnect the coolant fluid delivery and return pipes from the thermostatic cup to the climate control system heater and release them from the bracket.
2. Disconnect the coolant fluid delivery pipe to the radiator from the thermostatic cup.

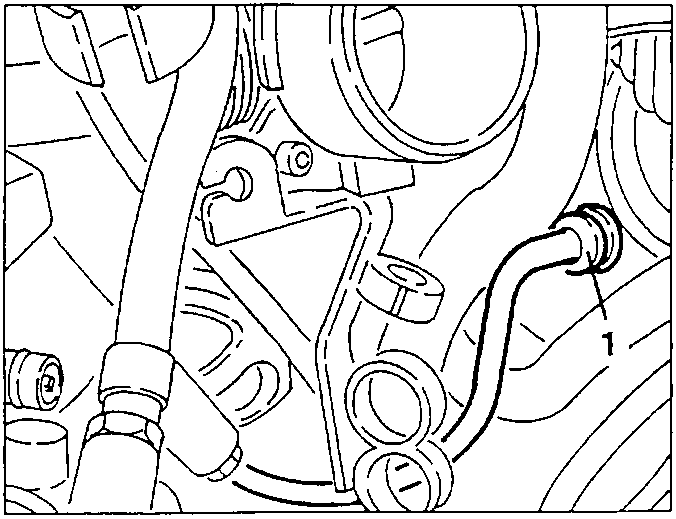

1. Disconnect the vacuum takeoff pipe from the servobrake.
