Removal/Refitting (1970 T. SPARK 16V)
EngineGeneral description · page 2 of 8

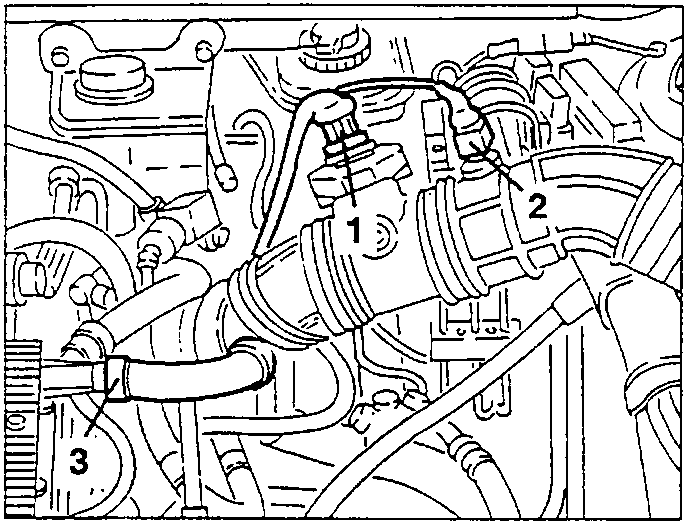

  1. Disconnect the electrical connection from the air-flow meter.
  2. Disconnect the electrical connection from the intake air temperature sensor (NTC).
  3. Slacken the fastening clamp and disconnect the oil recirculation pipe from the cylinder head.
Engine bay showing air-flow meter, intake air temperature sensor, and oil recirculation pipe connections

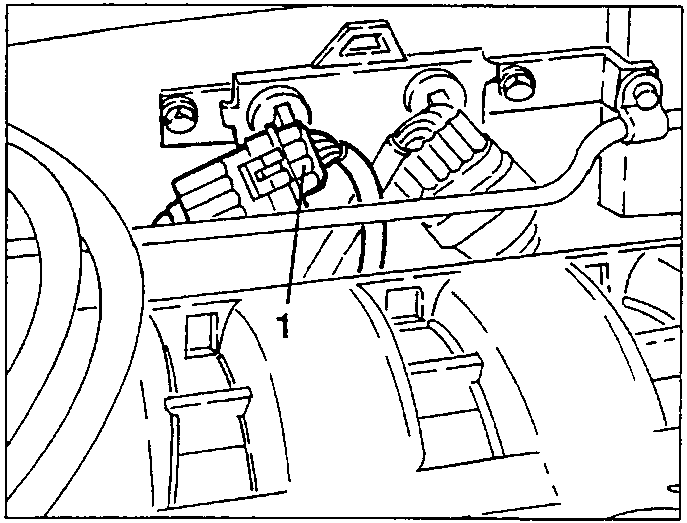

  1. Disconnect the electrical connection of the lambda probe.
Close-up of lambda probe electrical connector

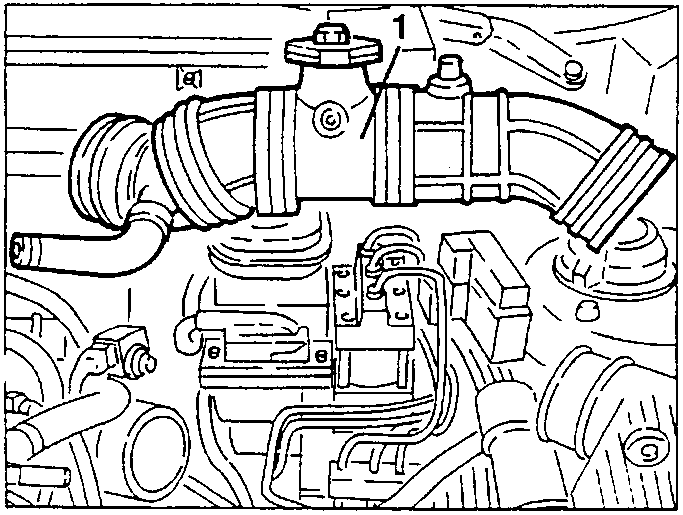

  1. Slacken the fastening clamps and remove the corrugated sleeve complete.
Engine bay showing corrugated sleeve connections

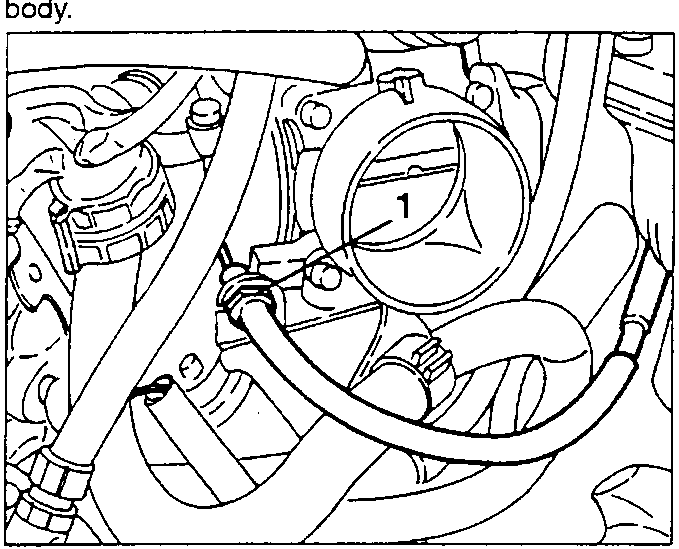

  1. Disconnect the accelerator cable from the throttle body.
Throttle body with accelerator cable connection

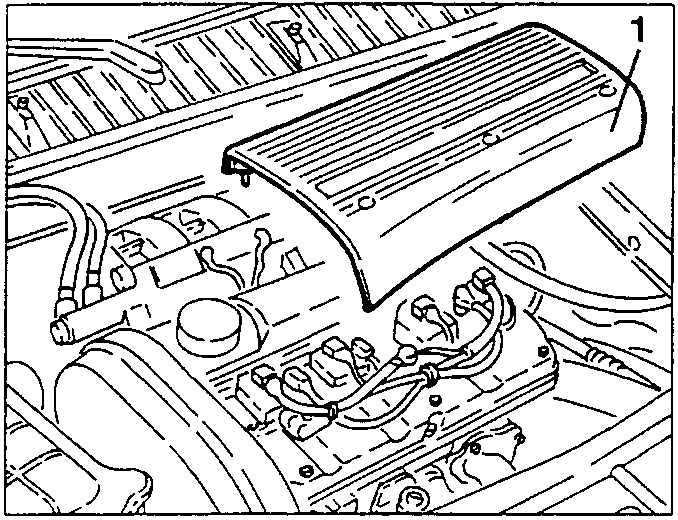

  1. Slacken the fastening screws and remove the ignition coils cover.
Ignition coils cover removal

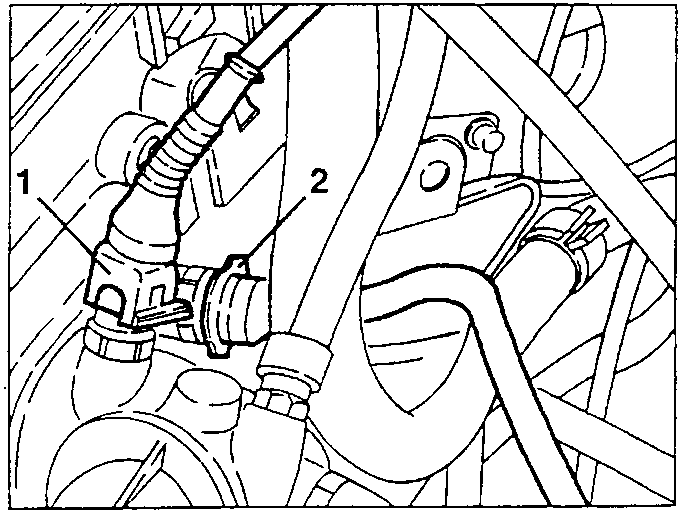

  1. Disconnect the electrical connection from the engine coolant fluid temperature sensor (NTC).
  2. Disconnect the electrical connection from the engine coolant temperature warning light transmitter, then move aside the wiring.
Engine coolant sensor and warning light transmitter connections
