Removal/Refitting (1970 T. SPARK 16V)
EngineGeneral description · page 4 of 8

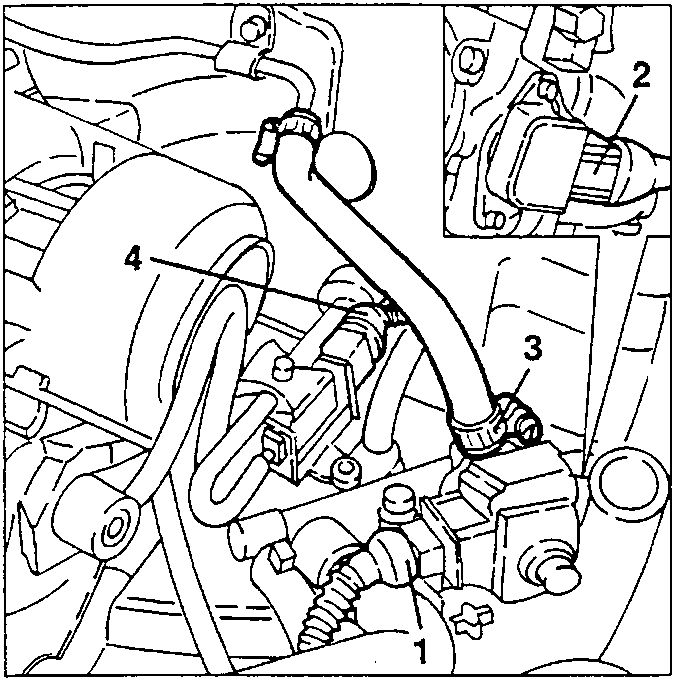

  1. Disconnect the electrical connection from the constant idle speed actuator.
  2. Disconnect the electrical connection from the throttle potentiometer.
  3. Disconnect the the coolant delivery pipe to the header tank from the throttle body.
  4. Disconnect the electrical connection from the E.G.R. modulation solenoid valve.
Engine bay showing connections and components labeled 1, 2, 3, 4

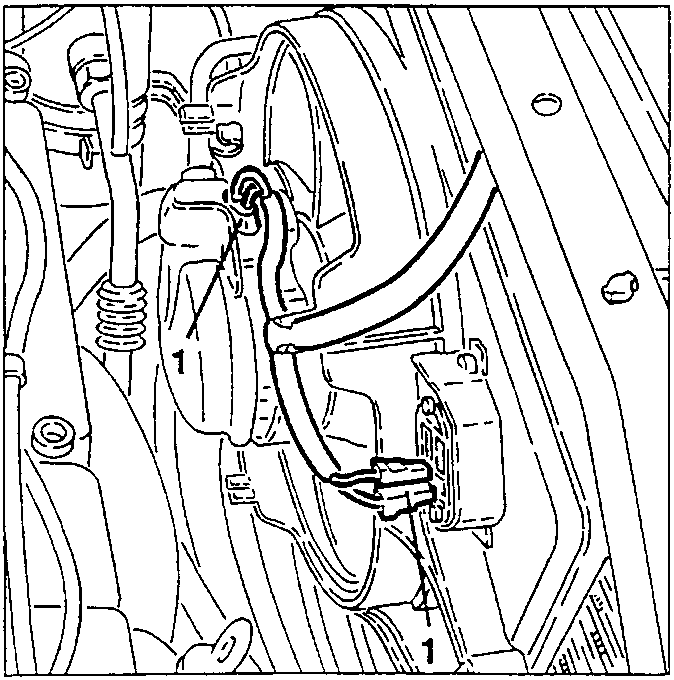

  1. Disconnect the electrical connections from the cooling fan.
Close-up of cooling fan electrical connection labeled 1

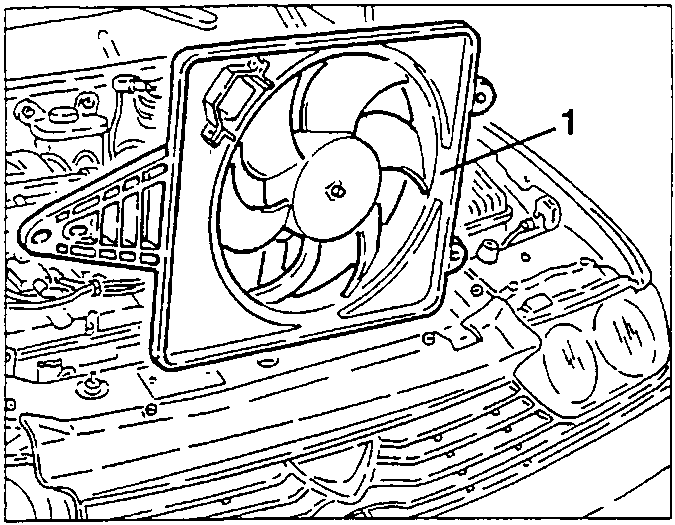

  1. Slacken the fastening screws and remove the cooling fan.
Engine bay showing air conditioning compressor and fan labeled 1

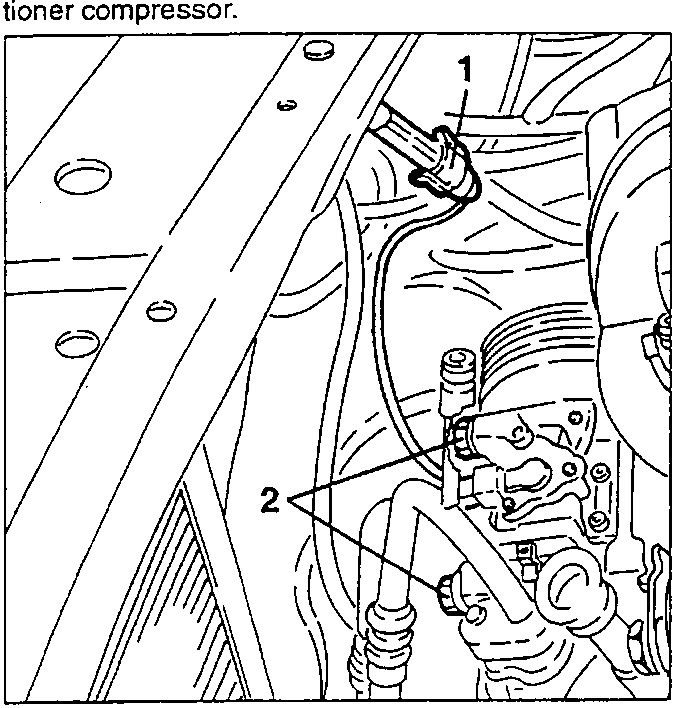

  1. Disconnect the electrical connection supplying the conditioner compressor.
  2. Slacken the two upper screws fastening the conditioner compressor.
Close-up of conditioner compressor connections labeled 1, 2

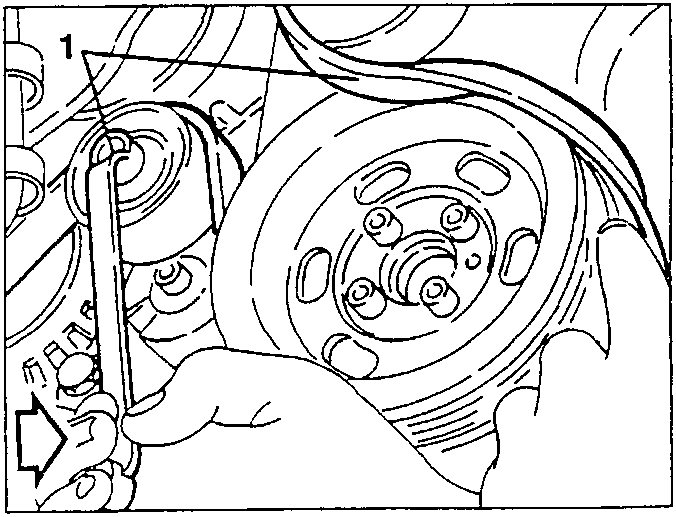

  1. Raise the car and working as illustrated on the guide pulley, loosen the tension of the auxiliary components drive belt and remove it.
Close-up of auxiliary components drive belt being loosened labeled 1
