Heating and ventilation - T. Spark 16V engine › Dis-assembly
Heating and ventilationDis-assembly
  • Disconnect the electrical connections of the climate control unit.
  1. Move aside the floor mat, slacken the two fastening screws and remove the control unit cover.

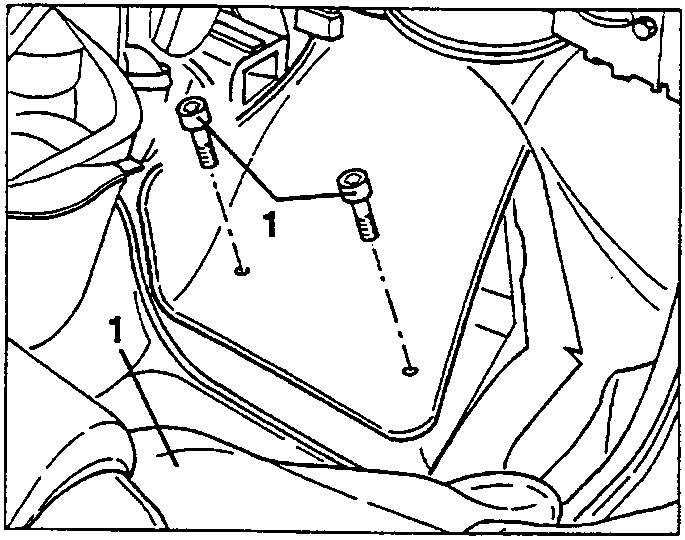

Floor area with the two control unit cover fastening screws marked 1
  1. Slacken the three right-hand screws fastening the climate control unit.

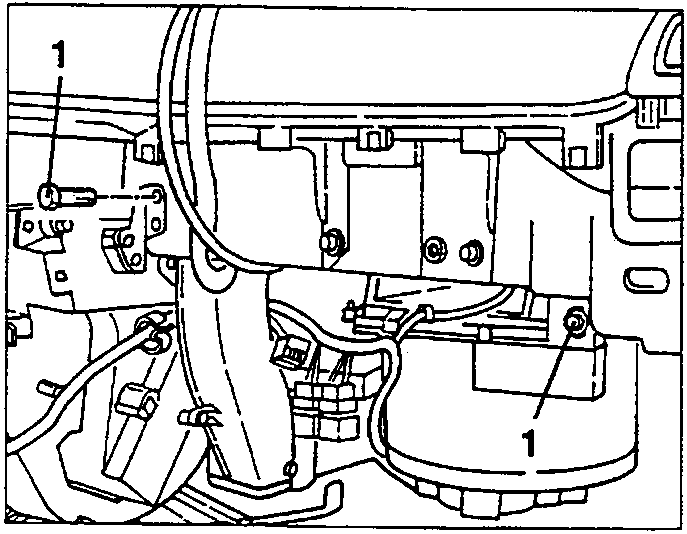

Right-hand fastening screws of the climate control unit marked 1
  1. Slacken the screw fastening the left-hand side of the climate control unit.

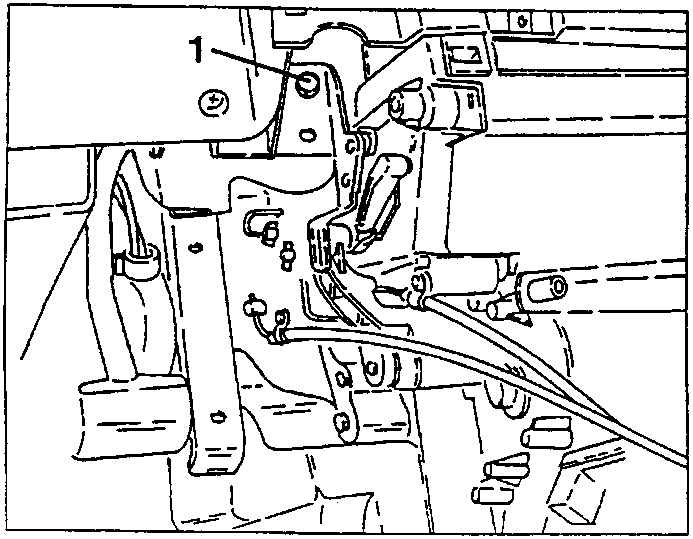

Left-hand side fastening screw of the climate control unit marked 1
  1. Remove the climate control unit.

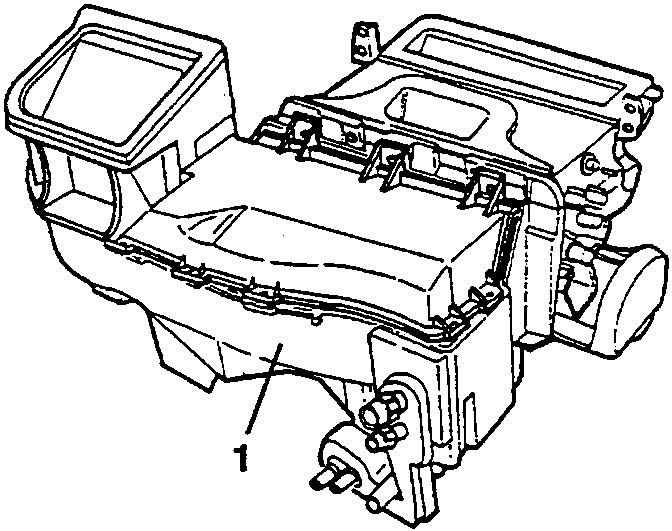

The climate control unit removed, with a connection marked 1

[symbol] Re-assemble the climate control unit reversing the sequence followed for removal and observing the instructions below.

  • Coat the mouth of the heater, water drain and coolant fluid pipes with vaseline.
  • Assemble the climate control unit taking care to correctly insert the above-mentioned pipes in their holes.
  1. Using a dowel positioned as illustrated, centre the position of the unit before fastening it.

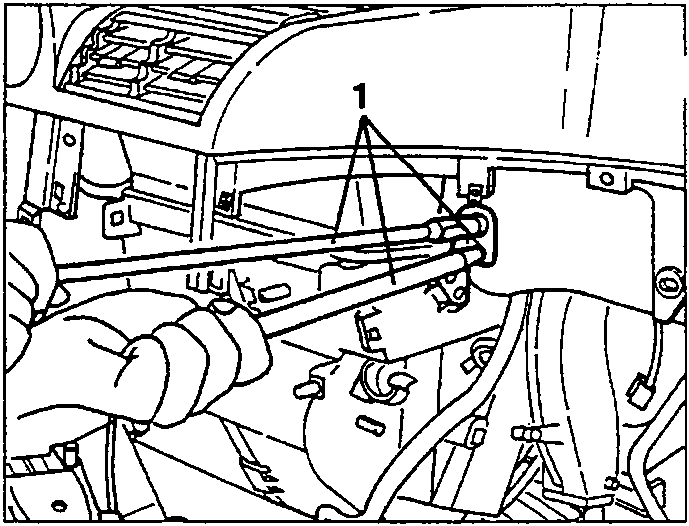

Centring the climate control unit with a dowel, marked 1

DIS-ASSEMBLY

  • Proceed as described for the Turbodiesel version.
