Checks and inspections

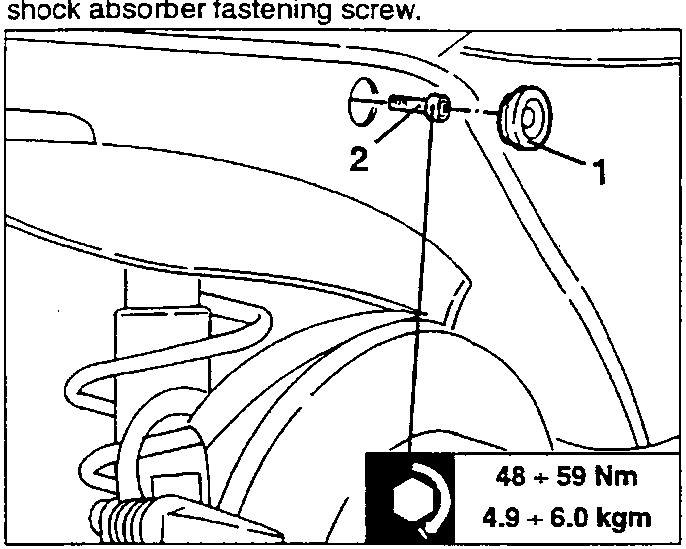

1. Remove the protective cap covering the access hole containing the upper shock absorber fastening screw.
2. Working through the wheel arch unscrew the upper shock absorber fastening screw.

48 ÷ 59 Nm
4.9 ÷ 6.0 kgm

NOTE: As the body is boxed around the area affected by the operation, pay particular attention not to drop the screw inside the boxed section.

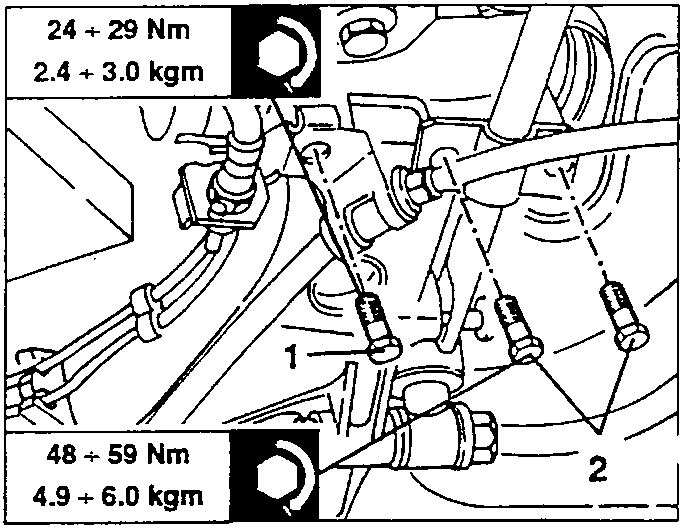

1. Slacken the fastening screw of the handbrake cable and brake hose support bracket.
2. Slacken the screws fastening the stabilizer bar on both sides of the suspension.

24 ÷ 29 Nm
2.4 ÷ 3.0 kgm

48 ÷ 59 Nm
4.9 ÷ 6.0 kgm

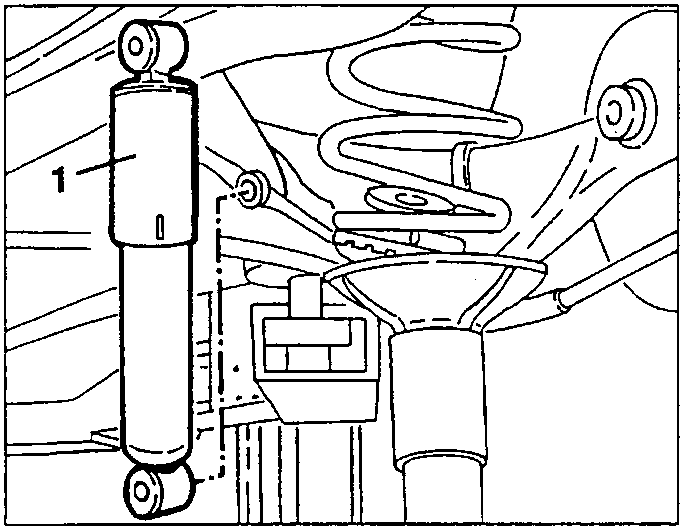

1. Remove the shock absorber.

CHECKS AND INSPECTIONS

• Check that the shock absorber is working properly and does not leak, when necessary, always replace the whole shock absorber.

HELICAL SPRING

REMOVAL/REFITTING

• Set the car on a lift.
• Remove the wheel on the side concerned.

1. Place a hydraulic jack under the longitudinal arm and preload the spring.

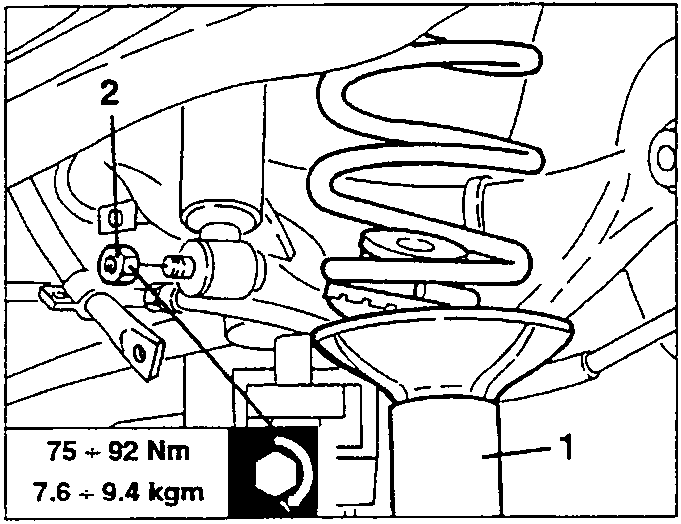

2. Slacken the shock absorber fastening bolt.

75 ÷ 92 Nm
7.6 ÷ 9.4 kgm

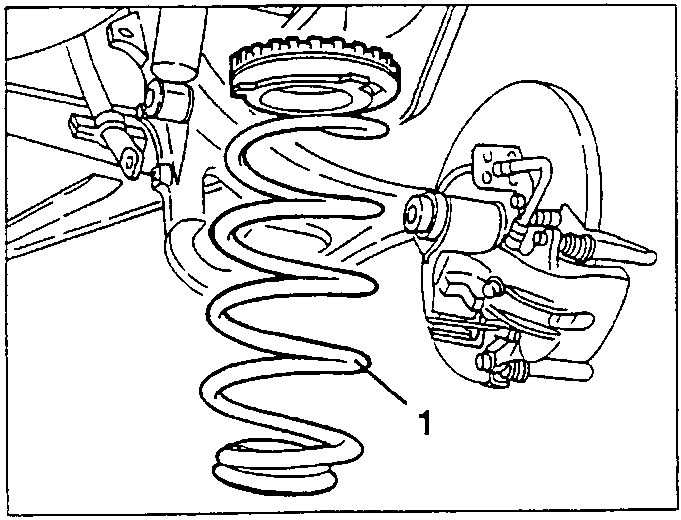

1. Lower the hydraulic jack and remove the spring complete with rebound rubbers.
