Stabiliser bar

STABILISER BAR

REMOVING/REFITTING

• Set the car on a lift.
• Remove the fuel tank (see GROUP 10).

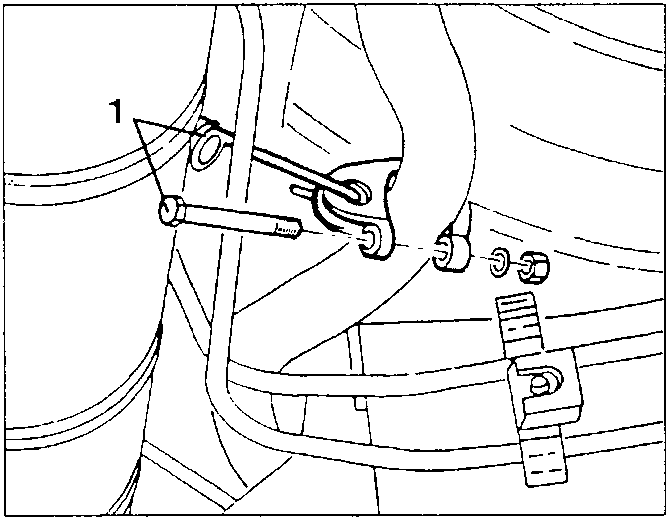

1. Slacken the bolt and disconnect the braking load proportioning valve spring from the stabiliser bar.

• Slacken the two nuts fastening the first exhaust silencer guard.
• Slacken the screw fastening the exhaust pipe rear support, then lower it as required.

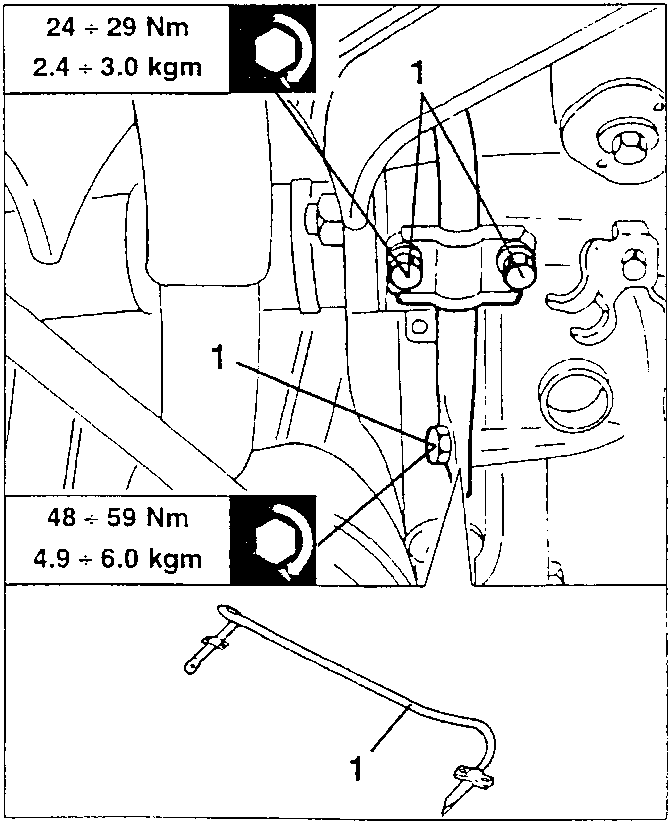

1. Slacken the three screws per side fastening the stabiliser bar, then remove it.

24 ÷ 29 Nm
2.4 ÷ 3.0 kgm

48 ÷ 59 Nm
4.9 ÷ 6.0 kgm

When refitting adjust the braking load proportioning valve (see GROUP 33).

LONGITUDINAL ARM

REMOVING/REFITTING

• Remove the the wheel hub (see specific paragraph).

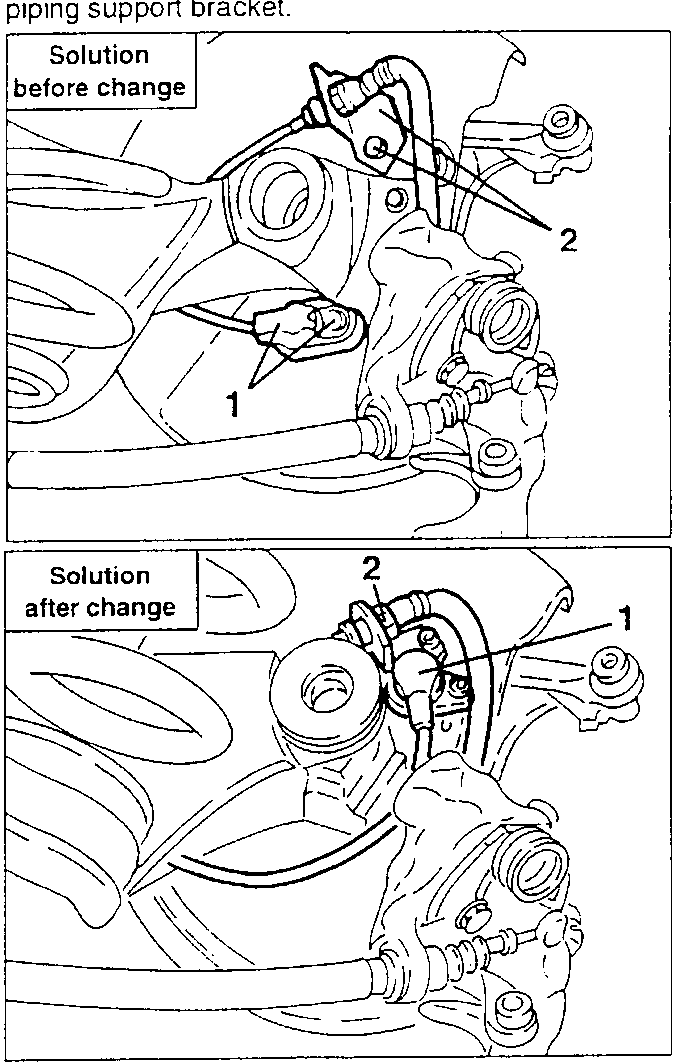

1. Slacken the fastening screw and remove the A.B.S, inductive sensor.
2. Slacken the fastening screw and remove the brake piping support bracket.

Solution before change

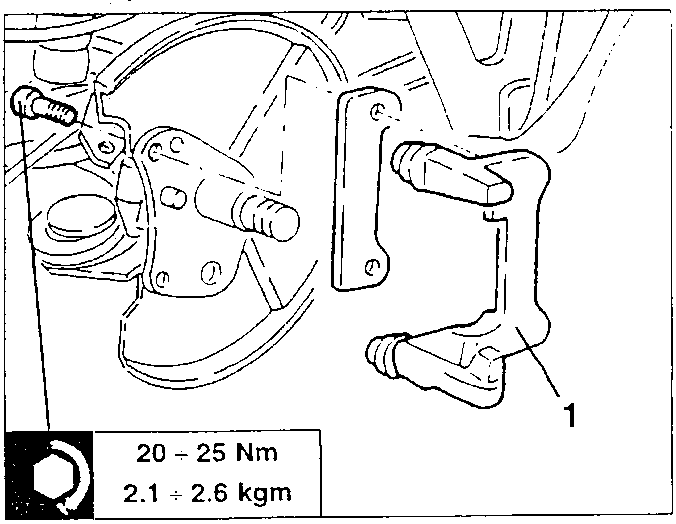

1. Slacken the two fastening screws and remove the brake caliper support and retrieve the spacer.

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm
