Stabiliser bar (page 2 of 2)

Solution after change

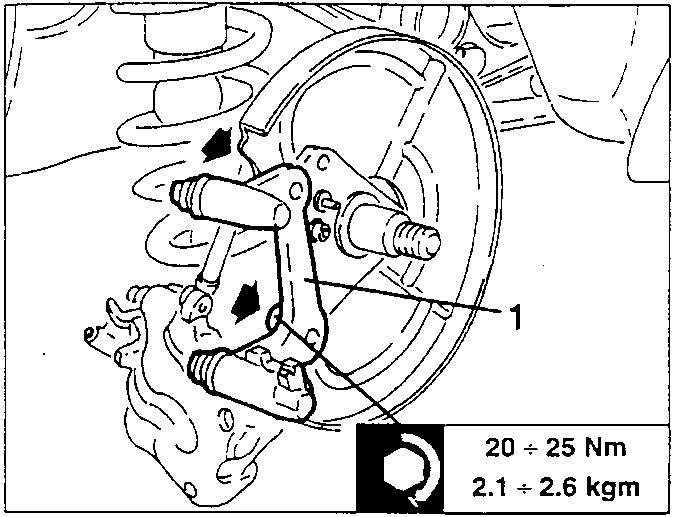

1. Slacken the two fastening screws and remove the brake caliper support.

20 ÷ 25 Nm
2.1 ÷ 2.6 kgm

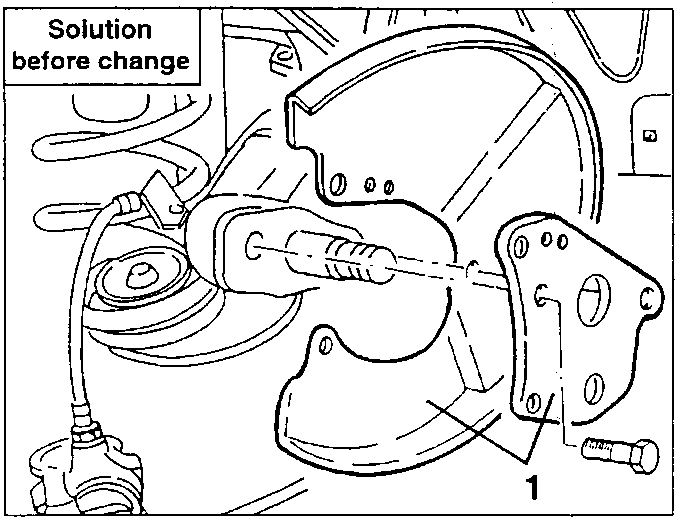

1. Slacken the two fastening screws and remove the brake disk guard and stiffener plate.

Solution before change

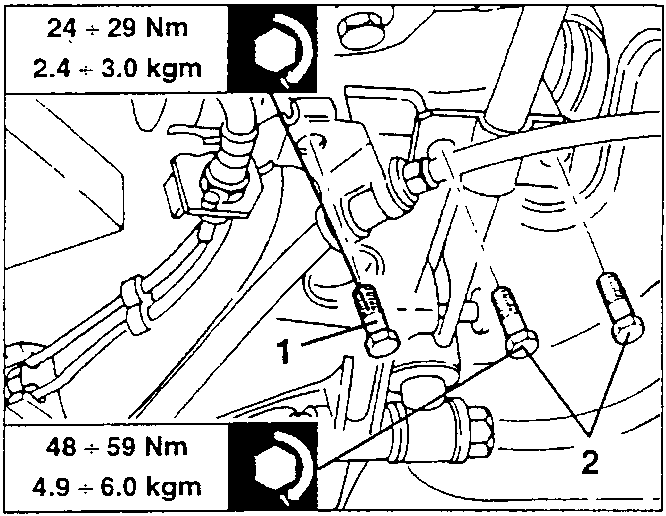

1. Slacken the screw fastening the handbrake cable support bracket, brake pipe and A.B.S. sensor cable.

24 ÷ 29 Nm
2.4 ÷ 3.0 kgm

2. Slacken the three screws per side fastening the stabiliser bar.

48 ÷ 59 Nm
4.9 ÷ 6.0 kgm

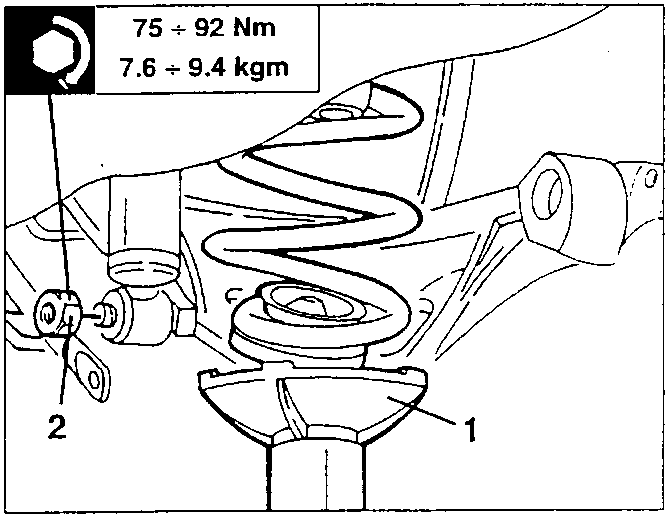

1. Set a hydraulic jack under the longitudinal arm of the suspension and preload the spring.

75 ÷ 92 Nm
7.6 ÷ 9.4 kgm

2. Slacken the shock absorber lower fastening bolt, lower the hydraulic jack and remove the spring.

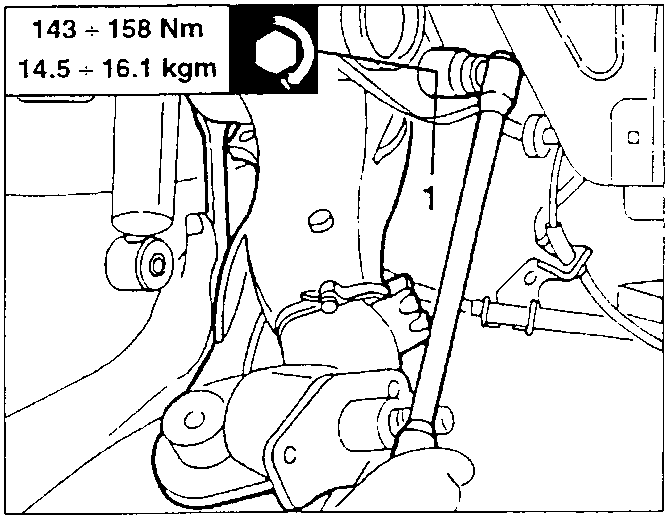

1. Slacken the fastening bolt and remove the longitudinal arm.

143 ÷ 158 Nm
14.5 ÷ 16.1 kgm

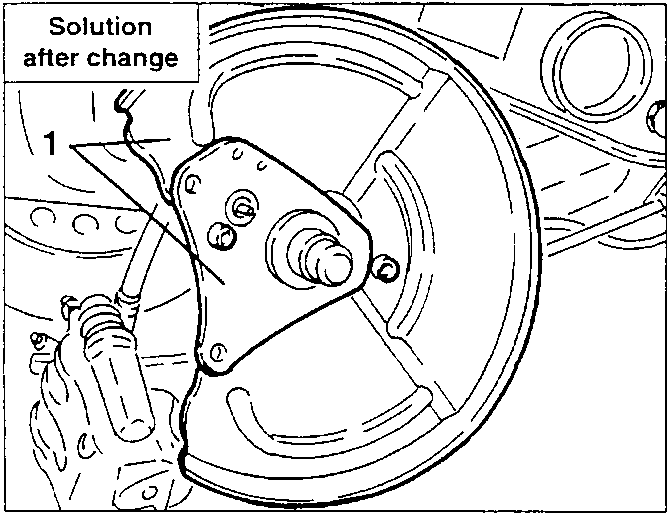

1. Slacken the two fastening screws and remove the brake disk guard and stiffener plate.

Solution after change
