Introduction - MISCELLANEOUS BODYWORK

SPECIFICATIONS:

The car is fitted with insulating panels to reduce mechanical noise and insulate the passenger compartment against noise deriving from rolling and the external environment.

The luggage compartment base houses a spare wheel with tool kit. These are secured in a container which is fastened inside the rim by a device.

The spare wheel is covered by a sound-absorbent preformed cover. This is turn is covered by the carpet that lines the luggage compartment floor.

VARIOUS BODY INSULATION PANELS

The insulation panels are made out of sound-absorbent material secured by bosses or bonded to the body.

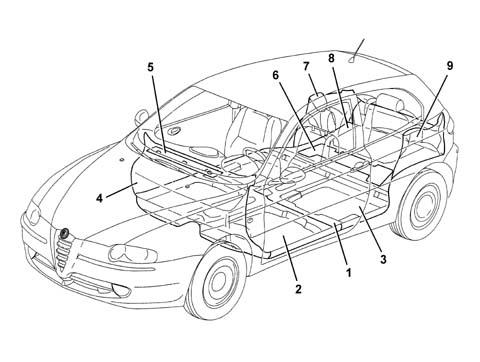

View of assembly

1 - Floor carpet

2 - Front footboard insulation

3 - Rear footboard insulation

4 - Front facia insulation

5 - Upper facia insulation

6 - Rear underseat insulation

7 - Right side trim

8 - Load platform

9 - Left side trim
