Connectors and pin-outsQ40 Driver's Head Bag

Q40 Driver's Head Bag

04/01 to 06/02, up to 03/01

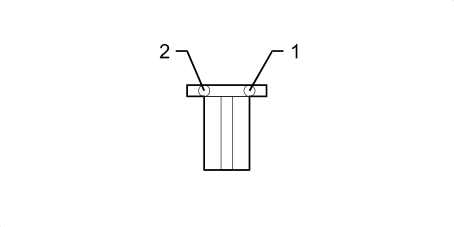

Q40 Driver's Head Bag
WiringColour
ConnectorsGIALLO
PinCableDestination
Sec.ColourNodeConnect.Pin
1HBM60B22
2HVM60B21

All versions

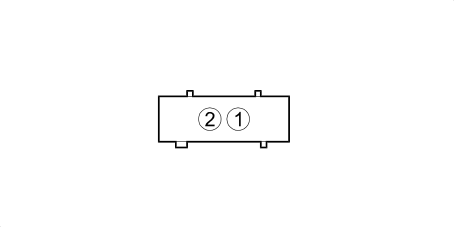

Q40 Driver's Head Bag
WiringColour
ConnectorsGIALLO
PinCableDestination
Sec.ColourNodeConnect.Pin
1BNM60B7
2BLM60B8

10/03 to 01/04

Q40 Driver's Head Bag
WiringColour
ConnectorsGIALLO
PinCableDestination
Sec.ColourNodeConnect.Pin
1BNM60B7
2BLM60B8
