Fuel system - check delivery pressure

Operation 0510C10 · Check systems

1.6 TS, 2.0 TS

1. Connect the equipment to the fuel manifold bleed valve and discharge the fuel pressure.

2. Disconnect the fuel supply pipe from the distribution manifold.

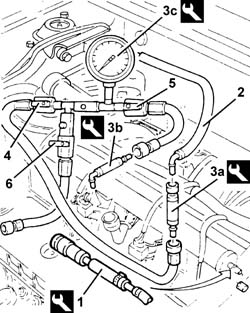

3. Fit the tools (3a) and (3b) on the tool (3c).

Connect the equipment thus obtained to the fuel supply pipe and fuel manifold.

4. Open the ball valve.

5. Open the ball valve.

6. Close the ball valve.

Start the engine and, at idle speed, check that the fuel pressure is within the specified values.

Turn off the engine.

Disconnect the tools from the fuel manifold and fuel supply pipe.

Connect the fuel supply pipe to the fuel manifold.
