Car radio and car telephone

Description 5570T

RADIO SYSTEM WITH CASSETTE PLAYER

RADIO SPECIFICATIONS

The main technical specification of the radio are:

• Tuner 2IC with SHARX function and Hicut adjustment (reduction of interference)
• integrated CC player
• CC interface with ASCI-BUS for CD-Changer
• Integrated display
• CAN interface
• Telephone input
• Preparation for remote control
• Soft-Mute function

CAN bus functions:

• On control (for switching off logic)
• External display interface, see instrument panel connector DOT matrix display
• Speed volume control
• Anti-theft code
• Lighting control

Electrical specifications:

• Operating voltage: from 10 to 16 V
• Nominal supply voltage: 13.5 V
• Minimum memory supply voltage: 5 V
• Operating voltage limit: 18 V for 1 hour; 24 V for 1 min
• Max. current absorption: 10A
• Stand by current: < 2 mA
• Stand by current 10 secs after first connection: 30 mA
• Output channels: 4
• Audio power 4x40 watt

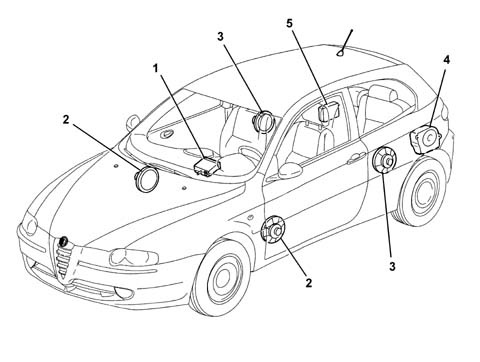

COMPOSITION OF RADIO SYSTEM

The mid level radio system consists of a radio with a CC cassette player interfaced with mid/high level speakers and has a radio aerial or, if there is preparation for a radio phone, it has a dual function aerial.

It can operate a CD-changer, if fitted, and can be operated by outside controls.

Front section

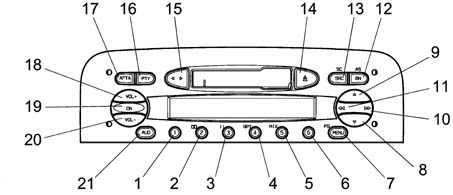

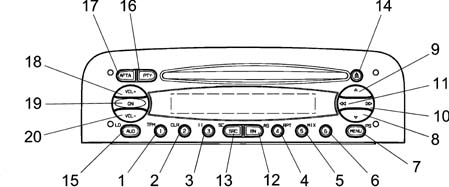

The diagram below illustrates the location of the controls on the front section.

The controls are described below.

Radio with cc pin out

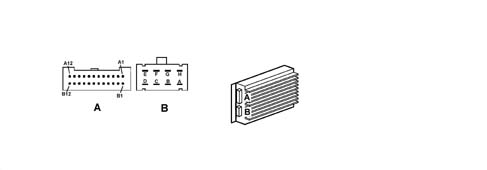

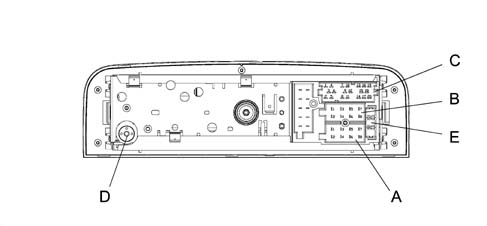

The diagram below shows the rear view of the radio and the location of the connectors.

CONNECTOR A

CONNECTOR B

CONNECTOR C

CONNECTOR D

Aerial

CONNECTOR E

10 A fuse

Labels

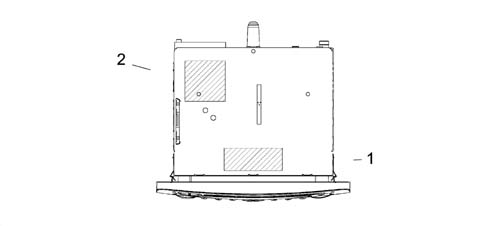

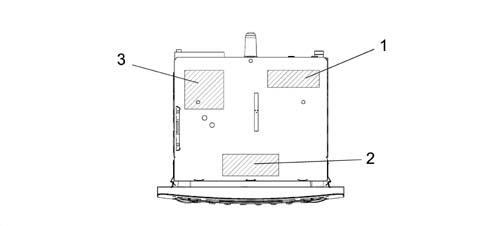

There are 3 labels on the cover of the radio:

• Label with K7 - and ALFA product number (65x19 mm)
• 36 pin connector pin out details (50x54 mm)
• Dolby label

Every radio is supplied with:

• Radio passport with the serial number and code

1 - Dolby label

2 - ALFA product number label

3 - Connections label

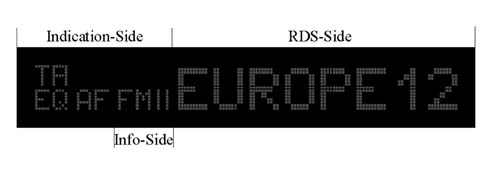

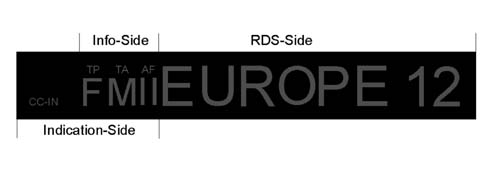

Lcd

Indications side:

• Side for fixed state symbols (CC-in, RPT, TP, DOLBY, ...)

Information side:

• Side for frequency band, audio mode settings, CD track, ...
• 3 digits

RDS side:

• Side for frequency, name of programme, ...
• 8 digits
• Segment with 1 column for displaying CD times
• Segment with 1 point for displaying frequencies

Negative transflective LCD

Example of screen in Tuner mode

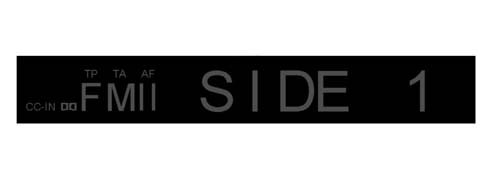

Example of screen in CC mode

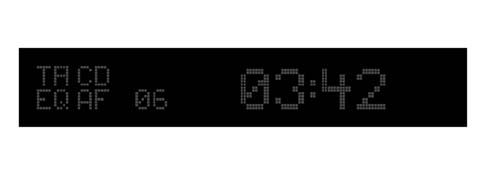

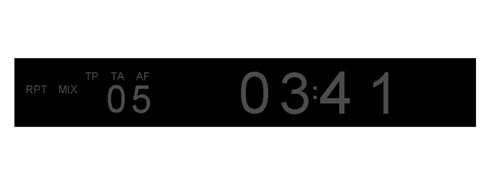

Example of screen in CDC mode

OPERATION OF MID RADIO SYSTEM

Main functions

The equipment is switched on using the on button

The equipment is supplied by pressing the ON button for more than 20 msec. The display responds immediately (within 1 sec., last source indication), the audio can be heard within 2.5 secs.

To switch the equipment off, press the ON button for more than 1 sec.

On/off logic, hour mode

It switches off automatically 20 minutes after the ignition has been switched off. The radio can be switched on, for a futher 20 minutes, after it has been switched off automatically, by pressing the On button.

Roger beep signal

Frequency: 2kHz, approx: 150ms.

Acoustic signal volume:

• Listening volume < 30: auditory signal volume = 30 (fixed auditory signal volume)
• Listening volume > 30: acoustic signal volume parallel to listening volume

Last status

After the radio has been switched off / on, it continues with the same settings, if the volume level was above 30, then the equipment will resume at level 30.

Cc eject

To eject the cassette, press the eject button (only if the radio is on). The cassette will be ejected and the source listened to before the cassette was played will be heard.

Switching source

To access and change source, press the SRC button briefly.

the CDC source is only available is a CDC is connected

After each change of source, the new source is displayed for 2.5 secs:

_ _ T U N E R _ (RDS side)

_ _ _ C C _ _ _ (RDS side)

C D _ C H A N G E R (RDS side)

Whilst the message is displayed, the last source is reproduced.

If the SRC button is pressed and there is no cassette inserted and no CD-Changer connected, the following is displayed for 2. 5 secs

_NO C D _ (RDS side)

Alternative frequency search

To activate / deactivate the search for alternative frequencies for the station selected, press the AF/TA button for a whilte (1 sec., acoustic signal follows). The RDS name will still be shown on the display (if available) and the 'AF symbol will appear on the information side if the AF function is activated.

If the radio is in AM mode when the AF/TA button is pressed, the Tuner mode will move to the FM 1 band for the last station selected.

Setting pre-defined by the Manufacturer: AF on

Traffic information

To activate / deactivate the traffic information function,press the AF/TA button briefly (<1 sec).

If the traffic information function is activated, but the radio station selected does not broadcast traffic information, an auditory signal (beep) will be produced every 30 secs.

If the broadcaster is on the AM band and the AF/TA button is pressed briefly (<1 sec), the tuner will tune into the last FM station listened to. If the station selected does not broadcast traffic news, the search will start and an auditory signal will be produced

If the source activated is CC or CDC, telephone or mute (volume 0) and the AF/TA button is pressed briefly (< 1 sec.), the traffic information function is activated and the traffic messages will be transmitted. If the last source was AM, the tuner will switch to FM1 at the last broadcaster selected.

If the station selected does not broadcast traffic information, the search will commence

Traffic information volume:

• Listening volume < 30: Traffic information volume = 30 (fixed volume)
• Listening volume 30: Traffic information volume equal to the listening volume +1

If the vehicle leaves the area covered by the radio station tuned into, the description of what happens is given below:

• Tuner mode: a warning signal is activated every 30 seconds
• CC or CDC mode, telephone activate, or mute function activate: a tuning search is launched (there is no visual or auditory information)

If the AF/TA button is pressed briefly (<1 sec) during the broadcast of a traffic bulletin, the bulleting will no longer be transmitted, even if the traffic information function (TA) continues to be activated.

If a traffic bulletin is transmitted, the following will be shown on the display:

- I N F O _ T R A (RDS side)

Whilst the outer display will continue to show the last indication (frqeuency, name, CD time)

By pressing the AF/TA button briefly (<1sec), whilst a traffic message is being broadcast this ------ is interrupted and the traffic information function continues to be activated

General information on traffic news:

• The audio function can be activated during a traffic bulletin using the 'AUD button
• There are no separate audio values, this means that the audio will be adopted even after the traffic bulletin.
• Changing the volume during a traffic bulletin will not be confirmed on the display. The value adjusted is only valid for that bulletin.
• During a traffic bulletin it is possible to recall a programme using the preselection buttons and the traffic bulleting will be deactivated
• During a traffic bulletin it is possible to change source using the predefined SRC button (the traffic bulleting will be deactivated).

Setting pre-defined by the Manufacturer: TA off

Pty31

The PTY31 process is similar to that of traffic bulletins, but without the possibility of deactivating it or changing preselected stations.

Mode for europe / south america (n.b.: information not contained in owner's handbook)

The two modes can be activated in sequence by pressing BN and preselection button 1 simultaneously within 5 seconds of switching the radio on. The mode selected will be displayed on the radio fo 2 secs.

Exmaples:

_ E U R O P E _ (RDS side)

S U D _ A M E R (RDS side)

Setting pre-defined by the Manufacturer: EUROPE

Autostore (automatic programming)

Press the BN button for a while (>1sec. followed by auditory signal) to activate the Autostore function (automatic programming). Through this function the radio programmes the six stations with the strongest signal in decreasing order of intensity for signals on the FMT frequency. If the traffic information function is activated, only stations broadcasing traffic information are programmed.

The following information appears on the display during the automatic programming process:

_ A - S T O R E (RDS side)

If the autostore process is activated in CC or CDC mode, or the source is altered, this process will take place without the display of messages and without interrupting the CC or CDC.

Each station is only programmed once

Exception: for regional programmes the second digit of the Pl cannot be taken into consideration during the autostore process so that the same broadcaster could be programmed using different Pl codes.

To interrupt the automatic programming process, press the BN button again (the last station selected before the start of the programming process will be played).

At the end of the Autostore function, the system will automatically activate the 1st station preselected at FMT level. If less than six stations can be received, the preselection buttons remaining free will be represented by four horizontal lines for 2 secs. and the last broadcaster listened to will be reproduced.

_ _ - - - - _ _ (RDS side)

The word 'SEARCH will be shown on the outside display during the autostore process.

General information when the autostore is activated:

• At the start of the autostore function, all the other functions and the menu are disabled;
• Pressing a button with a function relating to the radio (e.g. PTY, >>, <<, preselection buttons) will interrupt the autostore function, the last station listened to before the start of the process will be tuned into and the function associated with the button selected will be carried out;
• If the TA button is pressed during the autostore process, the latter will be interrupted, the TA function will be activated/deactivated and a new autostore process will be initiated.
• The autostore process will not be interrupted by changing source.

Mute function

Press the ON button briefly (<1 sec) to activate/deactivate the Mute function. If the Mute function is activated, the volume will decrease in 800 msec. from the current volume to value 0e and the display will show:

_ _ M U T E _ _

If the Mute function is deactivated, the volume will increase from 0 to the value previously listened to in 800 msec. and the display will show the same information as prior to the activation of the Mute function.

General information when the Mute function is activated:

• Pressing one of the volume buttons deactivates the Mute function and alters the listening volume
• All the functions and the menu can be used
• If a traffic bulletin is received (with the TA activated) or a PTY31 message is received, this will ignore the fact that the Mute function is activated

Soft mute function

The Soft Mute function is activated if one of the 6 preselection buttons or the BN button is used or the ON/OFF button

If one of these buttons is pressed, the volume decreases with a soft mute effect. The ramp is set to be reach volume 0 from the current volume in one sec.

If the button is pressed for:

• <1sec. The moment it is released the volume increases with a soft demute. This ramp is set to reach the current volume from volume 0 in 500 msec.
• = 1 sec. by pressing the button for 1 sec., an auditory signal (station programming) is produced, at the end of the auditory signal, the volume is at the current volume (no soft. Demute)

Outside display mode: (n.b.: function not described in owner's handbook)

It is possible to select between two modes by pressing the BN button and preselection button 2 simultaneously within 5 secs of switching the radio on. The two modes are:

• RDS display: The name RDS for the broadcaster selected (if available) is shown in the outside display
• Frequency display: The frequency of the radio station is always shown on the outside display

The radio shows the mode selected for 2 secs.

Exmaples:

- _NAME _ O N _ (RDS side)

- _NAME _ O F F_ (RDS side)

Setting pre-defined by the Manufacturer: NAME ON

Frequency mode (n.b. this function is not described in the owner's handbook)

In this mode the radio always shows the frequency of the station selected. To activate this mode, press the AUD button for 8 secs and then press preselection button 5. 2 secs and 8 secs after pressing the AUD button, an auditory signal will be produced. After the second auditory signal, press button 5 briefly to enter into the frequency mode.

To exit the frequency mode, switch the radio off and then on again.

Auto switching on

The radio receives the auto switching on signal via the CAN line.

If the radio is on and the engine is off the radio switches off.

If the radio is off and the engine is started up:

• if the radio was on before the engine was started up, it remains on.
• if the radio was off before the engine was started up, it remains off

Name-rds mode (south american market only)

Briefly (<1 sec) pressingthe AF/TA button activates / deactivates the Name-RDS function:

• Name -RDS on: the display shows the name of the broadcaster (if available) instead of the frequency
• Name -RDS off: the display always shows the frequency of the broadcaster

The radio shows the mode selected for 2 secs, e.g.:

_-_RDS_ON_ (RDS side)

_ RDS_OFF_ (RDS side)

If the RDS Name mode is off, then the AF function is also off

Setting pre-defined by the Manufacturer: RDS ON

Audio adjustments

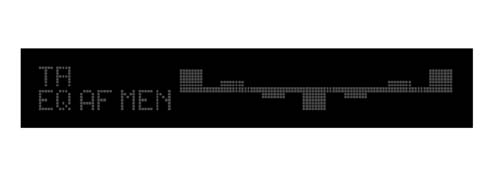

The curves for loudness, bass, treble and 2 2IC parametric equalizers are stored in the EEPROM. The specific sound for the vehicle is always activated and cannot be deactivated.

Volume

The volume can be adjusted in 67 steps from VOL 0 to VOL 66 using the 2 volume buttons VOL + and VOL -.

The volume level will be shown on the display for 4 seconds.

Example:

_ V O L U M E _ _ 2 3_) (RDS side)

The volume display disappears as soon as another function is selected.

If the volume level is changed during a traffic news bulletin or when the telephone is activated, this setting only remains valid for the current traffic bulletin. Later on, the equipment will return to the original level. If the traffic bulletin or the telephone function ends whilst the volume is being altered, the level will continue to change starting from the setting activated before the traffic bulletin or the telephone functino (including the display).

Speed volume control

Information from B-CAN.

Speed control in 10 steps stored in the EEPROM for the radio.

The table below shows the dB increase in relation to the vehicle speed

The speed volume control can be activated / deactivated using the menu in all modes (Tuner, CC, CDC).

Bass, treble, balance and fader

After briefly (<1 sec) pressing the 'AUD button, the current bass setting level is displayed.

Example:

_ _ B A S S _ _ (RDS side)

+ 6 (information side)

The setting is changed using the VOL + and VOL - buttons.

Control range: ± 12 dB in steps of 2 dB

Display: -6...0...+6

No stop at '0'.

If the 'AUD button is pressed a second time, the current treble setting level is displayed.

Example:

. _ T R E B L E _ (RDS side)

- 2 _ (information side)

The setting is changed with the volume disc encoder.

Control range: ± 12 dB in steps of 2 dB

Display: -6...0...+6

No stop at '0'.

By pressing the 'AUD button a third time, the current balance setting level is displayed.

Exmaples:

_ B A L A N C E (RDS side)

_L +_9 (left: 0dB; right: <-20 dB, information side)

_L -_R (left: 0dB; right: 0 dB, information side)

R +_ 9 (left: <-20dB; right: 0 dB, information side)

The setting is changed using buttons ? and ?

The dimming according to the step selected is 1.2, 2.4, 3.6, 6.0, 8.4, 10.8, 14.4, 18.0, 21.6 dB.

No stop at 'L-R.

If the 'AUD button is pressed a fourth time, the current fader level setting is displayed.

Examples:

_ _ F A D E R (RDS side)

F + 9 (rear: < -30 dB; front: 0 dB, information side)

F - R (rear: 0dB; front: 0 dB, information side)

R + 9 (rear: 0dB; front: < -30 dB, information side)

The setting is changed with the volume disc encoder.

The dimming according to the step selected is 1.2, 3.6, 6.0, 8.4, 10.8, 14.6, 19.2, 24.0, 31.2 dB.

No stop in 'F-R.

If the 'AUD function is deactivated, the value adjusted is memorized and the equipment activates the last mode used:

• Automatically 8 secs after the last audio adjustment.
• By initiating an action or by (de-)activating a function which requires the display of new information.
• When a new function or mode is launched (e.g. a T.A. broadcast, a telephone deactivation or when a cassette is inserted)

Setting pre-defined by the Manufacturer: Bass, Treble, Balance, Fader = 0.

Loudness

To activate / deactivate the Loudness function, press the AUD button for more than 1 sec. (an auditory signal is produced). The loudness mode will be shown for 4 secs.

Exmaples:

_ _ L D _ O N _ (RDS side)

_ _ L D _ O F F (RDS side)

The volume display disappears as soon as another function is selected.

The loudness curves are stored in the EEPROM and are adapted for the vehicle during the design stage

Setting pre-defined by the Manufacturer: Loudness off

Lighting adjustment

The radio lighting is controlled via the NBC CAN as set out in the table below, the radio lighting is red for the buttons and the LCD matrix back lighting.

Tuner mode

The receiver is designed to be compatible with the European market and the South American market.

Tuner data summary table

Display

The display shows the name (RDS station) or the frequency (non RDS station) of the station selected and, on the indications side, the frequency level selected.

Exmaples:

E U R O P E _ 1 (RDS side)

_ _1 0 1.9 _ _ (RDS side)

F M 1 (Info side)

F M 2 (Info side)

F M T (Info side)

M W (Info side)

L W _ (Info side)

Switching frequency band

By pressing the BN button briefly (<1 sec.) it is possible to activate the following frequency bands in order: FM 1, FM 2, FM T, MW, LW, FM 1, .... The last station selected on the band will be tuned into.

The 'Info' section of the display shows the new band (see point 5).

If the station selected is programmed, after 2 secs the preselection number will be shown on the 'Info' side for 5 secs.

Example of preselection number:

P 1 (Information side)

Preselection buttons (from 1 to 6)

Preselections:

• 18 x FM (6 x FM 1, 6 x FM 2, 6 x FMT (STORE)
• 6 x MW
• 6 x LW
• 6 x type of programme (PTY in FM mode only)

To recall the desired preselected station, select the desired frequency band and then press the preselection button again briefly (<1 sec.).

The preselectino number (rather than the band) will appear on the display on the information side and the frequency on RDS side for 2 secs before the frequency band and the RDS name (if available) appear.

If it is no longer possible to receive the Pl code on the assigned frequency for a preselection button, the radio will start to search for this Pl on another frequency as soon as the vehicle leaves the area covered by the first frequency.

The following appears on the display:

_ S E A R C H _ (RDS side)

If the Pl memorized cannot be received on any frequency, after having searched the entire band, the radio will tune into the programmed frequency.

By pressing the preselection button for a while (> 1 sec) the station tuned into will be programmed. The system always programmesthe frequency and the Pl code.

The programming process is confirmed by an auditory signal.

Automatic tuning

Press the up / down button (^/v) briefly (<1 sec.) to start the automatic tuning into the next station that can be received in the direction selected. If the button is pressed for longer (>1 sec) the rapid search will start. Once the first station with good reception is tuned into, the tuner will stop for 1 sec (in mute) before the rapid search resumes. When the button is released, the tuner stops at the first station which can be received.

If the traffic information function is activated, the system only searches for stations broadcasing traffic news.

If the PTY function is activated, then the system will only search for PTY stations.

During the search, the display alternately shows the type of the programme and the word SEARCH (every 2 secs).

If the frequency is identical to the frequency programmed during preselection on the same band (FM1, FM2, FMT, MW, LW) the preselection number will appear on the display for 5 secs.

The outer display will show the word SEARCH during the automatic search.

Manual tuning

To start the gradual tuning in the direction selected, press the left / right button (<</>>) briefly (<1 sec). If the button is pressed for longer (>1 sec) then the rapid function is implemented as long as the button remains pressed.

If the PTY function is activated, then it must be deactivated to use this function.

If the AF function is activated, then it must be deactivated in order to use this function.

If the frequency is identical to the frequency programmed on the same band (FM1, FM2, FMT, MW, LW) the preselection number will appear on the display for 5 secs.

Fm / am - scan

Press the SRC button for a while (>1 sec. followed by auditory signal) to start the scan of stations on the current frequency band (FM, MW, LW). Each station found will be played for 10 secs and the name or the frequency will flash on the display. The following will appear on the display during the search (min 2 secs):

_ F M - S C A N (RDS side)

_ A M - S C A N (RDS side)

P T Y - S C A N (RDS side)

If the traffic information function is activated, the system will only search for stations broadcasting traffic news.

If the PTY function is activated, then the system will only search for PTY stations.

At the start of the SCAN, all the other functions and the menu are cancelled.

The word SEARCH will appear on the outer display during the SCAN

Deactivating FM / AM search

• To continue the reproduction of the station currently sought, press the SRC button again. This operation is valid even if the equipment is switched off whilst the FM / AM search is in progress.
• Pressing the up or down button.
• Pressing a preselection button tunes into the programmed station
• Activating the automatic memory
• Activating / deactivating the PTY
• Changing the FM level or the band
• Activating AUD or MENU the current station continues to be reproduced
• If the FM / AM scan finds a station which is broadcasting traffic news and the traffic information function is activated, the search will be aborted.
• Inserting a cassette

If no station is selected, the search function will be deactivated after scanning the frequency band. The reproduction of the station selected previously will be resumed.

Preselection scanning

Press the MENU button for a while (>1 sec) to start the preselection scan on the current frequency band:

• FM: FM1-1, FM1-2, ..., FM1- 6, FM2-1, FM2-2, ... FM2-6, FMT 1, FMT 2, ..., FMT 6
• MW: MW 1, MW 2, ..., MW 6
• LW: LW 1, LW 2, ..., LW 6

Each preselection will be reproduced for 10 secs and the name or the frequency will flash on the display, if the range intensity is a minimum of 25dBV otherwise it will be omitted. The following appears on the display (2 secs) during the time a preselection is changed:

_ _ S C A N _ _ (RDS side)

In the first 2 secs when the new preselection station is being listened to, the current frequency band will be shown on the information side, in the remaining scan time the preselection button number will be shown, also on the information side.

If the traffic information function is activated, the system will only search for stations broadcasting traffic news.

At the start of the SCAN, all the other functions and the menu will be cancelled.

Deactivating preselection station scanning

• By pressing the SRC button, the current station listened to will continue. This operation is valid even if the equipment is switched off whilst the scan is activated.
• Pressing the up or down button.
• Pressing a preselection button
• Activating the automatic memory
• Activating the PTY
• Changing the source
• Changing the FM level or the band
• Activating AUD or MENU the current station continues to be reproduced
• If a station is reached, during the preselection scan, which is broadcasting a traffic news bulletin and the traffic information function is activated, the search will be aborted.
• Inserting a cassette

If no preselection is selected, the reproduction of the station selected will be resumed.

Selecting a pty programme type

To activate the PTY function, press the PTY button briefly (<1 sec). If the PTY function is activated, the 'PTY symbol will appear on the indications side of the display

P T Y (Info side)

and the last type of programme listened to will appear on the RDS side of the display.

Examples of types of programmes:

_ _ _P O P _M_ (RDS side)

_ _ R O C K _M_ (RDS side)

_ W E A T H E R (RDS side)

C H I L D R E N (RDS side)

_ T R A V E L _ (RDS side)

_ H O B B I E S (RDS side)

_ _ J A Z Z _ _ (RDS side)

_ O L D I E S _ (RDS side)

_ _ N E W S _ _ (RDS side)

_ _ S P O R T_ (RDS side)

_ _ _P O P _ _ (RDS side)

_ C U L T U R E (RDS side)

The name of the station or the frequency will be displayed after 2 secs.

To change the PTY type, press the << / >> buttons or one of the 6 preselection buttons. If the display shows the frequency of the name of the broadcaster, pressing the << / >> buttons displays the current type of programme.

To memorize the current type of programme on one of the 6 preselection buttons, press the preselection button for a while (>1 sec). - The programming is confirmed by an auditory signal.

To search for a station with this programme, see 'Automatic tuning and FM/AM scan'. If no station is available with this type of programme, the system will produce an auditory signal, the station selected previously will be reproduced and the following will appear on the display for 2 secs:

_ N O - P T Y _ (RDS side)

To deactivate the PTY function, press the PTY button again (<1 sec).

Whilst a PTY message appears on the display, the outer display continues to show the latest information (frequency, broadcaster name, CD time)

Setting pre-defined by the Manufacturer: PTY off.

Check on station type of pty programme

Press the PTY button for a while (> 1sec, followed by auditory signal) to activate the type of programme check. After the auditory signal, the display will show the type of programme offered by the station currently being played. If the current station has not PTY code then the following will appear on the display:

_ N O - P T Y _ (RDS side)

After 5 secs the RDS name or the frequency of the station tuned into will appear on the display.

Transmission scrolling

It is possible to receive different programmes on the same network and carry out scrolling (FM only)

For example: NDR1,NDR2,NDR3,NDR4,NJOI

To activate this function, press AF briefly (<1 sec) to activate the AF function.

Then the user can begin scrolling using the >>/<< buttons.

the broadcaster should have been received at least once

Menu mode

Menu button

To activate the menu function, press the MENU button briefly (1 sec). The following appears on the display:

_ _ M E N U _ _ (RDS side)

After 2 secs, the following appears on the display:

M E N (Information side)

_ R E G - O N _ (RDS side with menu function first)

To exit the Menu function, press the MENU button again.

Function selection

Press the up / down (^/v) button to change the menu function to be altered. The following functions can be used:

• Activating/deactivating the regional alternative frequency function (Regional)
• Setting the CDC display (only if a CD-Changer is connected)
• Tuner sensitivy adjustment
• Activating/deactivating the speed volume control
• Activating/deactivating the radio control function
• Telephone volume
• Hicut on/off

The current status of the function selected appears on the display (see the points which follow).

Regional function

If this function is selected, the current setting, out of 2 possiblities, will appear on the display:

_ R E G - O N _ (RDS side)

_ R E G - O F F (RDS side)

Use the << / >> buttons to change this function.

Setting pre-defined by the Manufacturer: REG-off

Cdc data display function

This function can only be selected if a CD-Changer is connected. The following appears on the display:

C D C - D I S P (RDS side)

Use the << / >> buttons to change this function. The current setting, out of 2 possibilities, appears on the display:

_ _ T I M E _ _ (RDS side)

_ _ C D - N R _ (RDS side)

Setting pre-defined by the Manufacturer: Time

Adjustment of tuner sensitivity

If this function is selected, the current setting, out of the 2 possibilities, appears on the display:

_ S E N S - D X (RDS side)

_ S E N S - L O (RDS side)

Use the << / >> buttons to change this function.

Setting pre-defined by the Manufacturer: SENS-DX

Speed volume control function

If this function is selected, the display will show the current setting from the 2 possibilities:

_ S V C - O N (RDS side)

_ S V C - O F F (RDS side)

Use the << / >> buttons to change this function.

Setting pre-defined by the Manufacturer: SVC-OFF.

Radio monitor function

The customer can use this function to activate or deactivate the radio monitor function If the function is not activated, the customer does not hear anything when the cassette is winding forward/rewinding or in the MSS mode. If the function is activated, on the other hand, the customer will hear the last station selected in the radio mode.

If this function is selected, the current setting, out of 2 possiblities, will appear on the display:

_ R M - O N _ _ (RDS side)

_ R M - O F F _ (RDS side)

Use the << / >> buttons to change the function.

Setting pre-defined by the Manufacturer: RM-OFF.

Telephone adjustment

With this function the customer can activate (setting 1 - 66) or deactivate (setting off) the telephone audio exclusion function. If the audio deactivation function is activated, the customer can select an initial volume for the telephone. The volume can be adjusted in 66 steps from VOL1 to VOL66 using the VOL + and VOL - buttons.

If this function is selected, the following appears on the display:

_ _ P H O N E _ (RDS side)

To activate this function, press the << / >> buttons. The display will show the last setting.

Examples:

_ _ _ O F F _ _ (RDS side)

_ _ _ P H O N E _2 _ (RDS side)

_ _ _ P H O N E _23 _ (RDS side)

Setting pre-defined by the Manufacturer: OFF.

Hicut adjustment

The customer can use this function to activate or deactivate the Hicut function (dynamic reduction of treble in accordance with RF signal).

If this function is activated, one of 2 possibiiltes is shown on the display, according to the current status:

H I C U T _ O N (RDS side)

N O _ H I C U T (RDS side)

To change the status, use the <</>> buttons.

Setting pre-defined by the Manufacturer: Hicut OFF.

Cc mode

Cc player

The NRR has a cassette player with the following specifications:

• Electronic reverse
• Cylinder release (PRR)
• Motorized loading
• Motorized ejection

Activation of cc mode

To activate the CC mode:

• Insert a cassette (if the radio is off, the radio comes on in cassette mode)
• Press the SRC button until the CC mode is activated (only if there is already a cassette in the CC player)

If a cassette is inserted the 'CC-IN symbol will appear on the information side of the display and the system will change source and activate the CC reproduction of side 1 of the cassette (the side of the cassette with the label legible when the cassette is inserted).

If the CC reproduction mode is activated, one of the following two possibilities will appear on the display:

_ S I D E - A _ (RDS side)

_ S I D E - B _ (RDS side)

Changing direction of tape reproduction

The direction the tape is played in is changed automatically at the end of the side or manually by pressing the reverse button (<->).

The display will change as a result.

Dolby b noise reduction

To activate / deactivate the noise reduction (DOLBY B), press the special button 2 and the following will appear on the display for 2 secs:

_ _ DOLBY_B_ (RDS side)

_NR_OFF__ (RDS side)

If the DOLBY function is activated, the 'DOBLY symbol will appear on the information side of the display.

Tape equalizer

The equalizing of the tape is always CR02 and cannot be switched.

Mss

Press the ^ button to check the MSS selection forwards (maximum of 9 titles) and the v button to check the MSS selection in the opposite direction. Keep the button pressed to continue the MSS selection. When the MSS modes are activated, the following appears on the display:

- Number of titles to be omitted:

_ 0 5 (Information side)

- MSS direction

_ M S S _ F F_ (RDS side)

_ M S S _ F R _ (RDS side)

If the MSS is activated, the fast forward or rewind stops as soon as the system detects the position of the tape not recorded or at the end of the tape.

The MSS search is interrupted in the following cases:

• When the source is change
• When the cassette is ejected.
• In the case of reversal
• When an action is initiated activating/deactivating a function which requires the display of new information
• When the radio is switched off
• The TA, Tel-mut and PTY31 functions cancel the MSS function. After the message, the equipment returns to the reproduction mode
• When the << / >> button is pressed, the reproduction mode is started

Fast forward and fast rewind

To start the fast forward of the tape, press the << button and the >> button. The direction selected will appear on the display:

_ F O R W A R D (RDS side)

_ R E W I N D _ (RDS side)

The fast forward/rewind function is interrupted in the following cases:

• When the source is change
• When the cassette is ejected.
• In the case of reversal
• When an action is initiated activating/deactivating a function which requires the display of new information
• When the radio is switched off
• The TA, Tel-mute and PTY31 functions cancel the fast forward/rewind function. After the message, the equipment moves on to the reproduction mode.
• Pressing the ^ / v button starts the reproduction mode

Pause function

Press the preselection button 3 to pause the cassette. The display shows:

_ _ P A U S E _ (RDS side)

To remove the pause function, press button 3 again

The pause function will be cancelled by changing source.

Scan function

The SCAN function is only available in play mode

When changing from one track to another the display will show (for a min. of 2 secs):

_ _ S C A N _ _ (RDS side)

Each title on the cassette will be reproduced for 10 secs whilst the track is played and the display will show SCAN

The SCAN order is:

• From the track reproduced to the end of the side
• Change of side and side scan
• Changing side again and side scan The function will be deactivated at the end of the side

To deactivate the scan:

• Press the SRC button again to continue listening to the track currently being played. This takes place even if a CC is being played
• Activating the Pause function:
• Pressing a button for searching in 4 directions
• Pressing the reverse button
• Activating the AUD button
• If the TA function is activated and the station selected is being broadcast, the scan will be interrupted
• Activating the menu

Cdc mode

Specifications

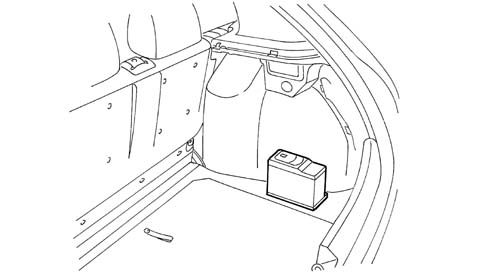

The CDC (CD Changer) is available as an option and is fitted in the luggage compartment on the right hand side and interfaces with the NRR via the special bridge

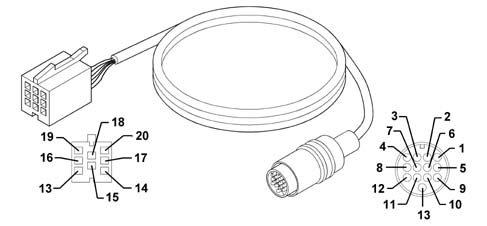

Components

CDC A08 (CD- Changer for 10 discs)

Operation

ACTIVATION OF CDC MODE

to activate the CDC mode:

Press the SRC button until the CDC is activated

DISPLAY

If it is activated in CDC reproduction mode, the following will appear on the display:

Example of track information:

_ 0 5_ (Information side)

Example of time information if this function is selected from the menu:

_ _0 3:4 2 _ _ (RDS side)

Example of CD number information for CDC mode if this function is selected from the menu:

_ _ C D - 0 4 _ (RDS side)

CD ERROR

The following 4 errors are possible

If the changer is not inserted then the display will show

_ _ N O _ C D _ (RDS side)

Until the user changes source.

If the CD selected is not legible (CD not present in the selected position or CD inserted the wrong way)

After the CD number has been displayed, the display will show the following for 2 secs:

_ _ N O _ C D _ (RDS side)

After this period, the next CD is selected. After all the CDs have been selected and no CDs are available, 'NO CD will appear on the display until the user changes source.

If there is a reading error, the following will appear on the display for 2 secs:

C D - E R R O R (RDS side)

After this period the next CD is selected. After all the CDs have been selected and no CDs are available, 'NO CD will appear on the display until the user changes source.

The CD is a CD-ROM

The next CD is selected without any information on the display.

TRACK SELECTION FORWARD/BACKWARDS

In the CDC mode, press the ^ button to select the next track and the v button to select the previous CD track. Keep the button pressed for continuous track selection (1 sec.).

If the v button is pressed whlst the track is played for more than 3 secs, the track will begin again.

CD SELECTION

Press the << button to select the previous CD and the >> button to select the next CD.

If the time display mode is activated (CDC display function) then the display mode is replaced by the CD number mode. 2 secs after the last time the button is pressed the display mode returns to the time display mode.

TRACK REWIND/FORWARD

Press the << button for rewinding and the >> button for forwarding the track selected by 1 sec. Keep it pressed (>2 secs) for the rapid function.

If the number display mode is activated (CDC display function) then the display mode will change to the time display mode. 2 secs after having pressed the display mode button, it will return to the number display mode.

SCAN FUNCTION

Each CD track is played for 10 secs, whilst the track is being played, the display will alternately show CDC selected information (CD-Name, time or number) and the word SCAN for 2 secs each.

_ _ S C A N _ _ (RDS side)

If the scan is activated, the repeat and mix functions are deactivated.

The search order is:

• From the track reproduced to the last track on the CD
• Chaging the CD and playing the CD from beginning to end (and so on for all the CDs in the changer)

Deactivation of CD search:

• Press the SRC button again to continue playing the track currently being listened to. This is also valid if the equipment is switched off whilst the CD search is activated
• Pressing the up or down button again causes a move to the next track
• Pressing a preselection button (3-5 CDC)
• Pressing the SRC button
• Activating AUD
• If the traffic information function is activated and the station currently tuned into is transmitting a bulletin, the search will be aborted
• Activating the MENU

If no track is selected, the track which was played previously will be resumed.

PAUSE FUNCTION

Press preselection button 3 to activate the pause mode for reproducing a CD or CDC. The following appears on the display:

_ _ P A U S E _ (RDS side)

To resume reproduction, press preselection button 3 again.

After changing source, the pause function is deactivated.

REPEAT FUNCTION

Press preselection button 4 to repeatedly play the track currently selected. The following information appears on the display for 2 secs:

_ R E P E A T _ (RDS side)

To deactivate the repeat function, press the preselection button 4 again. The following information appears on the display for 2 secs:

_ R P T - O F F (RDS side)

If the repeat function is activated, the 'RPT symbol will appear on the information side of the display and the scan and mix functions will be deactivated. After having carried out the track selected, the display will still show 'REPEAT for 2 secs.

After a change of source, the repeat function is deactivated.

Setting pre-defined by the Manufacturer: REPEAT-OFF.

MIX FUNCTION

Press preselection button 5 to activate the CD / CDC mix function. A new track is played and the following information appears on the display for 2 secs:

_ M I X - O N _ (RDS side)

To deactivate the mix function, press the preselection button 5 again. The following information appears on the display for 2 secs:

_ M I X - O F F (RDS side)

If the mix function is activated, all the tracks on the current disc will be played in random order and the 'MIX symbol will appear on the information side of the display and the scan and repeat functions will be deactivated. After having carried out the track selected, the display will still show 'MIX-ON for 2 secs.

After a change of source, the mix function is deactivated.

Setting pre-defined by the Manufacturer: CD-MIX-OFF.

Telephone

Specifications

The radio is designed to receive audio signals from an outside source such as a cell phone and inputs to mute the source

Standards supplied:

• Motorola standard portable
• Telephone audio deactivtion: mute deactivation activated < 2V
• Telephone audio level: max 15.4Vampl. second 10.9Veff
• input circuit: differential amplifier

To prevent an earth current, the negative telephone terminal (-) (or the telephone ground) should be connected to the connectors input.

Operation

TELEPHONE AUDIO INPUT

As soon as the telephone mute function is activated, the radio audio is connected to the telephone input.

The telephone sound always arrives at a fixed volume, which is adjusted in the Menu function, and can be altered during a telephone conversation. With the excpetion of the volume, ON and TA buttons, all the other buttons do not work whilst the telephone mute function is activated.

The following appears on the display whilst the telephone mute is activated:

_ _ P H O N E _ (RDS side)

If the telephone mute function is activated, all the functions, with the exception of autostore and search, are cancelled.

During a phone call, the outside display will show the latest information received.

A traffic bulletin or a PTY31 message interrupts the telephone audio, however the traffic bulletin can be deactivated by pressing the TA button. The equipment remains on, if the switching off logic intervenes and at the end of the conversation the equipment switches off automatically.

Remote control

Specifications

The remote control or controls on the steering wheel are buttons on the steering wheel connected directly to the radio via a resistive divider (see steering wheel).

The possible functions are listed in the table below:

Operation

SOURCE BUTTON

Press the source button briefly to access or exit the available sources.

Available sources:

• FM1, FM2, FMT, LW**, MW, CC*, CDC*, FM1 ,...

(*) only available if a CC is inserted or a CDC is connected

(**) not available in South American mode

For further information on changing sources, SEE switching sources with the exception that the tuner source is split into 5 bands. The tuner message only appears on the display if the customer changes source from CC or CDC to FM1. The change from, for example FM1 to FM2, is shown on the Info side

SCAN BUTTON

Press the scan button briefly for the following actions:

- Tuner mode (FM1, FM2, FMT, LW, MW)

Press Scan+ or Scan- to scan the preselections

Scan+ button: 1,2,3,4,5,6

Scan- button: 6,5,4,3,2,1

- CC Mode

In this mode the scan buttons have the same functions as the ^ (Scan +) and v (Scan -) buttons in the MSS function

- CDC Mode

In this mode the scan buttons have the same functions as the ^ (Scan +) and v (Scan -) buttons in the track selection function

SPECIFICATIONS OF THE RADIO SYSTEM WITH CD PLAYER

RADIO SPECIFICATIONS

The main technical specification of the radio are:

• 2IC tuner with SHARX function
• Equalizer with seven (7) bands
• Integrated CD player
• CDC interface with BUS ASCI CD-Changer
• Integrated display
• CAN interface
• Telephone input
• BOSE speaker active control
• Preparation for remote control
• 30 CD title memory
• TPM memory (Track Program Memory) for 50 CDs with 10 tracks each
• Soft-Mute function

CAN bus functions:

• On control (for switching off logic)
• Outside display, see instrument panel connector display on DOT matrix
• Speed volume control
• Anti-theft code
• Lighting control

Electrical specifications:

• Operating voltage: from 10 to 16 V
• Nominal supply voltage: 13.5 V
• Minimum memory supply voltage: 5 V
• Operating voltage limit: 18 V for 1 hour; 24 V for 1 min
• Max. current absorption: 10A
• Stand by current: < 2 mA
• Stand by current 10 secs after first connection: 30 mA
• Output channes: 4
• Audio power 4x40 W

COMPOSITION OF THE RADIO SYSTEM

The high level radio system is composed of a radio with a CD (compact disc) player which interfaces with the high level/HI-FI BOSE speakers and has a radio aerial or, if there is preparation for a radio phone, a dual function aerial.

It can operate a CD-Changer, if fitted, and can be operated through outside controls.

Front section

The diagram below illustrates the location of the controls on the front section.

The controls are described below.

Radio with cd pin out

The diagram below shows the rear view of the radio and the location of the connectors.

CONNECTOR A

CONNECTOR B

CONNECTOR C

CONNECTOR D

Aerial

CONNECTOR E

10 A fuse

Labels

There are 3 labels on the cover of the radio:

• Label with K7 - and ALFA product number (65x19 mm)
• 36 pin connector pin out details (50x54 mm)
• Laser warning

Every radio is supplied with:

• Radio passport with the serial number and code

1 - Alfa product number label

2 - Pin out connections label

Dot matix display

Indications side:

• Side for fixed state information (AF, TA, TP, ...)

Information side:

• Side for display of frequency band, audio settings, CD track ...

RDS side:

• Side for display of frequency, programme name, graphics ...

Example of screen in tuner mode:

Example of screen in CD/CDC mode:

Example of screen for graphics equalizer:

OPERATION OF RADIO SYSTEM WITH CD PLAYER

Main functions

The equipment is switched on using the on button

The equipment is supplied by pressing the ON button for more than 20 msec. The display responds immediately (within 1 sec., last source indication), the audio can be heard within 2.5 secs.

To switch the equipment off, press the ON button for longer than 1 second.

On/off logic, hour mode

Automatic switching off 20 minutes after the ignition has been switched off. The radio can be switched on, for a futher 20 minutes, after it has been switched off automatically, by pressing the On button.

Roger beep signal

Frequency: 2kHz, approx: 150ms.

Auditory signal volume:

• Listening volume < 30: auditory signal volume = 30 (fixed auditory signal volume)
• Listening volume 30: auditory signal volume paralle to the listening volume

Last status

After switching the radio on / off, it continues to operate with the following settings. If the volume level was above 30 steps, the equipment will resume playing at level 30.

Cd eject

To eject the disc, press the eject button ? (only if the radio is on) The disc will be ejected and the source listened to prior to playing the CD will be heard.

If the CD is not removed from the radio, the radio will recharge it 30 secs later remaining in tuner mode.

If the user reinserts the CD ejected from the radio without having removed it first, the radio will remain in tuner mode

Switching source

To access and change available sources, press the SRC button.

At each change of source, the new source is displayed for 2.5 secs:

_ _ _ _ T U N E R _ _ _ (RDS side)

_ _ _ _ C D _ _ _ _ (RDS side)

_ C D - C H A N G E R _ (RDS side)

Whilst the message is displayed, the last source is reproduced.

If no CDs are inserted or the CD CHANGER Is not connected, the following is displayed:

_ _N O C D _ _ (RDS side)

Alternative frequency search

To activate / deactivate the alternative frequency search for the station selected, press the AF/TA button for a while (> 1sec). The RDS name will still be shown on the display (if available) and the 'AF symbol will appear on the information side if the AF function is activated.

If the radio is in AM mode when the AF/TA button is pressed, the tuner mode will move on to the FM1 at the last station selected.

Setting pre-defined by the Manufacturer: AF on

Traffic information

To activate / deactivate the traffic information function,press the AF/TA button briefly (<1 sec).

If the traffic information function is activated, but the radio station selected does not broadcast traffic information, an auditory signal (beep) will be produced every 30 secs.

If the broadcaster is on the AM band and the AF/TA button is pressed briefly (<1 sec), the tuner will tune into the last FM station listened to. If the station selected does not broadcast traffic information, the search will commence and an auditory signal will be produced.

If the source activated is CD or CDC or the telephone or mute functions (volume 0) are activated and the AF/TA button is pressed briefly (<1 sec), the traffic information function will be activated and traffic bulletins will be transmitted. If the last source selected was the AM radio, the tuner will switch to FM1 for the last broadcaster selected. If the station selected does not broadcast traffic information, the search will commence

Traffic information volume:

• Listening volume < 30: Traffic information volume = 30 (fixed volume)
• Listening volume 30: Traffic information volume equal to the listening volume +1

If the vehicle leaves the area covered by the radio station tuned into, the description of what happens is given below:

• Tuner Mode: an auditory signal is produced every 30 secs
• CD or CDC Mode or telephone or mute function activated: a tuning search is launched (there is no visual or auditory information)

If the AF/TA button is pressed briefly (<1 sec) during the broadcast of a traffic bulletin, the bulleting will no longer be transmitted, even if the traffic information function (TA) continues to be activated.

If a traffic bulletin is transmitted, the following will be shown on the display:

_I N F O _ T R A_ (RDS side)

Whilst a traffic bulletin is in progress, the outside display will show the latest information received.

General information on traffic news:

• The audio function can be activated during a traffic bulletin using the 'AUD button
• There are no separate audio values, this means that the audio will be adopted even after the traffic bulletin.
• Changing the volume during a traffic bulletin will not be confirmed on the display. The value adjusted is only valid for that bulletin.
• During a traffic bulletin it is possible to recall a programme using the preselection buttons (the traffic bulletin will only be deactivated if in radio mode).
• It is possible to change source during a traffic bulletin using the SRC button (the traffic bulletin will be deactivated).

Setting pre-defined by the Manufacturer: TA off

Pty31

The PTY31 process is similar to the traffic information function, but there is no possibility of deactivating it.

Mode for europe / south america (n.b. function not described in owner's handbook)

The customer can activate the two modes, in order, by pressing the BN button and the preselection button 1 simultaneously whilst the radio is on. The mode selected will be shown on the radio for 2 seconds.

Exmaples:

_ _ _ E U R O P E _ _ _ (Information side)

_ S U D _ A M E R _ _ _ (Information side)

Setting pre-defined by the Manufacturer: EUROPE

Autostore (automatic programming)

Press the BN button for a whilst ( >1 sec, followed by auditory signal) to activate the Autostore function. With this function the radio programmes the six stations with the strongest signal in decreasing order of intensity for the signal on the FMT frequency band. If the traffic information function is activated, only stations broadcasing traffic information are programmed.

The following information appears on the display during the automatic programming process:

_ A - S T O R E (RDS side)

If the autostore process is activated in CD or CDC mode or the source is changed, this process will take place in the background.

Each station is only programmed once

Exception: for regional programmes the second digit of the Pl cannot be taken into consideration during the autostore process, so that the same broadcater could be programmed with 2 different Pl codes

To interrupt the automatic programming process, press the BN button again (the last station selected before the start of the programming process will be played).

At the end of the Autostore function, the system will automatically activate the 1st station preselected at FMT level. If less than six stations can be received, the preselection buttons remaining free will be represented by four horizontal lines for 2 secs and the last broadcaster listened to will be reproduced.

_ _- - - - _ _ (RDS side)

The word 'SEARCH will be shown on the outside display during the autostore process.

General information when the autostore is activated:

• At the start of the autostore function, all the other functions and the menu are disabled;
• Pressing a button with a function relating to the radio (e.g. PTY, >>, <<, preselection buttons) will interrupt the autostore function, the last station listened to before the start of the process will be tuned into and the function associated with the button selected will be carried out;
• If the TA button is pressed during the autostore process, the latter will be interrupted, the TA function will be activated/deactivated and a new autostore process will be initiated.
• The autostore process will not be interrupted by changing source.

Mute function

Press the ON button briefly (<1 sec) to activate/deactivate the Mute function. If the Mute function is activated, the volume will decrease in 800 msec. from the current volume to value 0e and the display will show:

- _ M U T E _ _

If the Mute function is deactivated, the volume will increase from 0 to the value previously listened to in 800 msec. and the display will show the same information as prior to the activation of the Mute function.

General information when the Mute function is activated:

• Pressing one of the volume buttons deactivates the Mute function and alters the listening volume
• All the functions and the menu can be used
• If a traffic bulletin is received (with the TA activated) or a PTY31 message is received, this will ignore the fact that the Mute function is activated

Soft mute function

The Soft Mute function is activated if one of the 6 preselection buttons is used

If one of these buttons is pressed, the volume decreases with a soft mute effect. The ramp is set to reach volume 0 from the current volume in one second

If the button is pressed for;

<1sec. the moment it is released the volume will increase with a soft demute This ramp is set to reach the current volume from 0 in 500 msec.

pressing the button for a second, an auditory signal is produced (station programming). At the end of the auditory signal, the volume is the current volume (no soft demute).

Outside display mode (n.b. function not described in the owner's handbook)

It is possible to select between two modes by pressing the BN button and preselection button 2 simultaneously within 5 secs of switching the radio on. The two modes are:

• RDS display: (RDS-name on, NAME-on) The RDS name of the broadcaster selected (if available) is shown on the outside display in place of the frequency
• Frequency display: (RDS-name off, NAME-off) The outside display always shows the frequency of the radio station

The radio shows the mode selected for 2 secs.

Exmaples:

- N A M E _ O N _ (RDS side)

- N A M E _ O F F (RDS side)

Setting pre-defined by the Manufacturer: NAME-ON

Frequency mode (n.b. function not described in the owner's handbook)

In this mode the radio always shows the frequency of the station selected. To activate this mode, press the AUD button for 8 secs and then press preselection button 5. 2 secs and 8 secs after pressing the AUD button, an auditory signal will be produced. After the second auditory signal, press button 5 briefly (an auditory signal will be produced) to enter the frequency mode.

To exit the frequency mode, switch the radio off and then on again.

Auto switching on

The radio receives the switching on signal via the B-CAN line

If the radio is on and the engine is switched off, the radio switches off.

If the radio is off and the engine is started up:

• If the radio was on before the engine was started, it remains on
• If the radio was off before the engine was started up

Name-rds mode (south american market only)

Briefly (<1 sec) pressingthe AF/TA button activates / deactivates the Name-RDS function:

• Name -RDS on: the display shows the name of the broadcaster (if available) instead of the frequency
• Name -RDS off: the display always shows the frequency of the broadcaster

The radio shows the mode selected for 2 secs, e.g.:

_-_RDS_ON_ (RDS side)

_ RDS_OFF_ (RDS side)

If the Name-RDS mode is off, then the AF function is also off

Setting pre-defined by the Manufacturer: RDS ON

Audio adjustments

The 7 band graphic equalizer depends on the hardware the loudness, bass, treble and 2IC 2 band parameteric equalizer (for the specific car sound) are memorized in the EEPROM

If 'BOSE amplifier is connected to the radio, all the audio curves depend on the 'BOSE specifications

Volume

The volume can be adjusted in 67 steps from VOL 0 to VOL 66 using the VOL + and VOL - buttons.

The volume level appears on the display for 4 seconds.

Example:

_ _ V O L _ 2 3 _ (Information side)

The volume screen disappears as soon as another function is selected.

If the volume level is changed during a traffic news bulletin, then this setting only remains valid for the current traffic bulletin. Later on, the equipment will return to the original level. If the traffic news bulletin ends whilst the volume is being changed, then the level will continue to change starting from the setting activated prior to the transmission of the traffic bulletin (including the display information).

Speed volume control

Information from bus CAN.

Volume controlled in 10 steps stored in the EEPROM

The table below shows the dB increase in relation to the vehicle speed

The speed volume control can be activated / deactivated via the menu in all modes (tuner, CD, CDC).

Bass, treble, balance and fader

After briefly (<1 sec) pressing the 'AUD button, the current bass setting level is displayed.

Example:

_ _ _B A S S _ _ (RDS side)

_ + 6_ _ (Information side)

The setting is changed using the ^ and v buttons.

Control range: ± 12 dB in steps of 2 dB

Display: -6...0...+6

No stop at '0'.

If the 'AUD button is pressed a second time, the current treble setting level is displayed.

Example:

_ _ T R E B L E_ _ (RDS side)

_ - 2 _(Information side)

The setting is changed using the ^ and v buttons.

Control range: ± 12 dB in steps of 2 dB

Display: -6...0...+6

No stop at '0'.

By pressing the 'AUD button a third time, the current balance setting level is displayed.

Examples:

_ B A L A N C E _ (RDS side)

_ L + 9_ (left: 0dB, right: <-20 dB information side)_

_ L - R_ (left: 0dB, right: 0 dB information side)

_ R + 9_ (left: <-20dB, right: 0 dB information side)

The setting is changed using the ^ and v buttons.

The dimming according to the step selected is 1.2, 2.4, 3.6, 6.0, 8.4, 10.8, 14.4, 18.0, 21.6 dB.

No stop at 'L=R.

If the 'AUD button is pressed for a fourth time, the current fader setting level is displayed.

Exmaples:

_ F A D E R _ (RDS side)

_ F + 9 _ (rear: < -30 dB, front: 0 dB information side)

_ F - R _ (rear: 0dB, front: 0 dB information side)

_ R + 9 _ (rear: 0dB, front: < -30 dB information side)

The setting is changed using the ^ and v buttons.

The dimming according to the step selected is 1.2, 3.6, 6.0, 8.4, 10.8, 14.6, 19.2, 24.0, 31.2 dB.

No stop at 'F=R.

If the 'AUD function is deactivated, the value adjusted is memorized and the equipment activates the last mode used:

• Automatically 8 secs after the last audio adjustment.
• By initiating an action or by (de-)activating a function which requires the display of new information.
• When a new function or mode is launched (for example a TA broadcast, a telephone mute or when a CD is inserted)

If a BOSE amplifier is connected to the radio, the bass and treble function is reduced to conform with the BOSE specifications.

Setting pre-defined by the Manufacturer: Bass, Treble, Balance, Fader= 0.

Loudness

This function is only available if the BOSE amplifier is not connected to the radio. If an amplifier is connected to the radio, the loudness will be fixed according to the BOSE specifications.

To activate / deactivate the loudness function, press the 'AUD button for more than a second. The Loudness mode will appear on the display for 4 seconds.

Examples:

_ _ L D_ O N _ (RDS side)

_ L D_ O F F _ (RDS side)

The volume screen disappears as soon as another function is selected.

The loudness curves are stored in the EEPROM.

Setting pre-defined by the Manufacturer: Loudness off.

Lighting adjustment

The radio lighting is controlled via the NBC CAN as illustrated in the table below; the radio lighting is red for the buttons and the LCD matrix backlight.

Tuner mode

Note: The receiver is designed to be compatible with the European market and the South American market.

Display

The name (RDS station) or the frequency (non RDS station) of the station selected appears on the display and the frequency level selected appears on the indications side.

Exmaples:

E U R O P E _ 1 (RDS side)

_ _ 1 0 1.9 _ _ (RDS side)

F M 1 (Information side)

F M 2 (Information side)

F M T (Information side)

M W _ (Information side)

L W _ (Information side)

Switching frequency band

By pressing the BN button briefly (<1 sec.) it is possible to activate the following frequency bands in order: FM 1, FM 2, FM T, MW, LW, FM 1, .... The last station selected on the band will be tuned into.

The new frequency band will be shown on the information side of the display

If the station is programmed, 2 seconds later the station number will be displayed on the information side for 5 secs.

Example:

_ P 1_ (Information side)

Preselection buttons (from 1 to 6)

Preselections:

• 18 x FM (6 x FM 1, 6 x FM 2, 6 x FMT (STORE))
• 6 x MW
• 6 x LW
• 6 x type of PTY programme (FM mode only)

To recall the desired preselected station, select the desired frequency band and then press the preselection button again briefly (<1 sec.).

The preselection number will appear on the display (rather than the band, e.g. FM2) on the information side and the frequency will appear on the RDS side for 2 secs before the frequency band and the name of the RDS appear (if available0.

If it is no longer possible to receive the Pl code on the assigned frequency for a preselection button, the radio will start to search for this Pl on another frequency as soon as the vehicle leaves the area covered by the first frequency.

The following appears on the display:

_ S E A R C H _ (RDS side)

If the Pl memorized cannot be received on any frequency, after having searched the entire band, the radio will tune into the programmed frequency.

The station tuned into will be programmed by pressing the preselection button for a while ( =1 sec). The system always programmesthe frequency and the Pl code.

The programming process is confirmed by an auditory signal.

Automatic tuning

Press the up / down button (^/v) briefly (<1 sec.) to start the automatic tuning into the next station that can be received in the direction selected. If the button is pressed for longer (>1 sec) the rapid search will start. Once the first station with good reception is tuned into, the tuner will stop for 1 sec (in mute) before the rapid search continues. When the button is released, the tuner stops at the first station which can be received.

If the traffic information function is activated, the system only searches for stations broadcasing traffic news.

If the PTY function is activated, then the system will only search for PTY stations.

During the search, the display alternately shows the type of the programme and the word SEARCH (every 2 secs).

If the frequency is identical to the frequency programmed during preselection on the same band (FM1, FM2, FMT, MW, LW) the preselection number will appear on the display for 5 secs.

The outer display will show the word SEARCH during the automatic search.

Manual tuning

To start the gradual tuning in the direction selected, press the left / right button (<</>>) briefly (<1 sec). If the button is pressed for longer (>1 sec) then the rapid function is carried out as long as it is pressed.

If the PTY function is activated, then it must be deactivated to use this function.

If the AF function is activated, then it must be deactivatd to use this function.

If the frequency is identical to the preselection frequency programmed on the same band (FM1, FM2, FMT, MW, LW) then the preselection number will appear on the display for 5 secs.

Fm / am - scan

Press the SRC button for a while (>1 sec. followed by auditory signal) to start the scan of stations on the current frequency band (FM, MW, LW). Each station found will be played for 10 secs and the name or the frequency will flash on the display. The following will appear on the display during the search (min 2 secs):

_ F M - S C A N (RDS side)

_ A M - S C A N (RDS side)

P T Y - S C A N (RDS side)

If the traffic information function is activated, the system will only search for stations broadcasting traffic news.

If the PTY function is activated, then the system will only search for PTY stations.

At the start of the SCAN, all the other functions and the menu are cancelled.

The word SEARCH will appear on the outer display during the SCAN

Deactivating FM / AM search

• To continue the reproduction of the station currently sought, press the SRC button again. This operation is valid even if the equipment is switched off whilst the FM / AM search is in progress.
• Pressing the up or down button.
• Pressing a preselection button tunes into the programmed station
• Activating the automatic memory
• Activating / deactivating the PTY
• Changing the FM level or the band
• Activating AUD or MENU the current station continues to be reproduced
• If the FM / AM scan finds a station which is broadcasting traffic news and the traffic information function is activated, the search will be aborted.
• Inserting a CD

If no station is selected, the search function will be deactivated after scanning the frequency band. The reproduction of the station selection previously will be resume

Preselection scanning

Press the MENU button for a while (>1 sec) to start the preselection scanning on the current frequency band:

• FM: FM1- 1, FM1- 2, ..., FM1- 6, FM2- 1, FM2- 2, ... FM2- 6, FMT1, FMT2,..., FMT6
• MW: MW 1, MW 2, ..., MW 6
• LW: LW 1, LW 2, ..., LW 6

Each preselection will be reproduced for 10 secs and the name or the frequency will flash on the display, if the range intensity is a minimum of 25dBV otherwise it will be omitted. The following appears on the display (2 secs) during the time a preselection is changed:

_ _ S C A N _ _ (RDS side)

In the first 2 secs during which a preselection station is reproduced, the information side shows the current frequency band and in the remaining time the preselection number is shown on the information side.

If the traffic information function is activated, the system will only search for stations broadcasting traffic news.

All the other functions and the menu will be cancelled at the start of the search.

Deactivating preselection station scanning

• By pressing the SRC button the radio station currently listened will continue. This operation is valid even if the equipment is switched off whilst the scan is activated.
• Pressing the up or down button.
• Pressing a preselection button
• Activating the automatic memory
• Activating the PTY
• Changing the source
• Changing the FM level or the band
• Activating AUD or MENU the current station continues to be reproduced
• If a station is reached, during the preselection scan, which is broadcasting a traffic news bulletin and the traffic information function is activated, the search will be aborted.
• Inserting a CD

If no preselection is selected, the reproduction of the station selected will be resumed.

Selecting a pty programme type

To activate the PTY function, press the PTY button briefly (<1 sec). If the PTY function is activated, the 'PTY symbol will appear on the indications side of the display

P T Y (information side)

and the last type of programme listened to will appear on the RDS side of the display.

Examples of types of programmes:

_ _ _P O P _ _M_ (RDS side)

_ _ R O C K _ M_ (RDS side)

_ W E A T H E R_ (RDS side)

C H I L D R E N_ (RDS side)

_ T R A V E L_ (RDS side)

_ H O B B I E S_ (RDS side)

_ _ J A Z Z _ _ (RDS side)

_ O L D I E S _ (RDS side)

_ _ N E W S _ _ (RDS side)

_ _P O P _ _ (RDS side)

_ _ S P O R T _ (RDS side)

_ C U L T U R E (RDS side)

The name of the station or the frequency is displayed after 2 secs.

To change the PTY type, press the << / >> buttons or one of the 6 preselection buttons. If the display shows the frequency of the name of the broadcaster, pressing the << / >> buttons displays the current type of programme.

To memorize the current type of programme on one of the 6 preselection buttons, press the preselection button for a while (>1 sec).

The programming is confirmed by an auditory signal.

To search for a station with this programme, see 'Automatic tuning and FM/AM scan'. If no station is available with this type of programme, the system will produce an auditory signal, the station selected previously will be reproduced and the following will appear on the display:

_ N O - P T Y _ (RDS side)

To deactivate the PTY function, press the PTY button again (<1 sec).

Whilst a PTY message appears on the display, the outer display continues to show the latest information (frequency, broadcaster name, CD time)

Setting pre-defined by the Manufacturer: PTY off.

Check on station type of pty programme

Press the PTY button for a while (>1 sec) to activate the check on the type of programme. After the auditory signal, the display will show the type of programme offered by the station currently being played. If the current station has not PTY code then the following will appear on the display:

_ N O - P T Y _ (RDS side)

After 5 secs the RDS name or the frequency of the station tuned into will appear on the display.

Transmission scrolling

It is possible to receive different programmes on the same network and carry out scrolling (FM only)

For example: NDR1,NDR2,NDR3,NDR4,N-JOY

To activate this function, press the AF button briefly (>1 sec) to activate the AF function.

Then the user can begin scrolling using the >>/<< buttons.

the broadcaster should have been received at least once

Menu

Menu button

To activate the menu function, press the MENU button quickly (1 sec). The following appears on the display:

_ _ _ _ M E N U _ _ _ _ (RDS side)

After 2 secs, the following appears on the display:

M E N U (indications side)

_ E Q - O F F _ (RDS side with menu function first)

To exit the Menu function, press the MENU button again.

Function selection

Press the up / down (^/v) button to change the menu function to be altered. The following functions can be used:

• Activating / deactivating equalizer
• Equalizer settings (only if the equalizer is activated)
• Activating/deactivating alternative frequency regional function
• CD display setting
• CDC display setting (only if a CD-Changer is connected)
• Tuner sensitivy adjustment
• Activating/deactivating speed volume control
• Allocation of names to CDs (only if CD mode is activated)
• Telephone adjustment
• Hicut on/off

The current status of the function selected appears on the display (see the points which follow).

Equalizer activation (on) / deactivation (off)

This function is only possible if no BOSE amplifier is connected to the radio

With this function the user can activate or deactivate the integrated equalizer. If this function is not activated, the user can alter the audio settings only by changing the bass and treble. If an equalizer is activated, more settings can be exploited to alter the acoustic curves:

• PRESET: specific sound for the vehicle
• USER: specific sound for the vehicle plus 7 band equalizer which can be set by the user
• Rock Curve: fixed audio for rock tracks
• Jazz Curve: fixed audio for jazz tracks
• Classic Curve: audio for classic tracks

If this function is selected, one of the last three possibilities appears on the display (last setting):

_ P R E S E T _ (RDS side)

_ U S E R _ (RDS side)

_ R O C K _ (RDS side)

_ J A Z Z _ (RDS side)

_ C L A S S I C _ (RDS side)

To change this function, use the << / >> buttons. If one of the equalizers is activated, the 'EQ symbol appears on the indication side of the display.

Setting pre-defined by the Manufacturer: PRESET

User equalizer setting

It is only possible to select this function if one of the equalizers has been activated.

The last equalizer used appears on the display:

_ E Q _ S E T _ (RDS side)

To change the equalizer settings, press the << / >> button. A bar chart with 7 bars appears on the display. Each bar represents a frequency for the left channel and the right channel. The following frequencies can be selected using the << / >> button (the bar selected last starts to flash):

• 1.bar: 64Hz
• 2.bars: 160Hz
• 3.bars: 400Hz
• 4.bars: 1000Hz
• 5.bars: 2500Hz
• 6.bars: 6250Hz
• 7.bars: 15625Hz

To change the gain in the frequency selected, press the ^/v button. The gain can be changed from -6dB to +6dB in steps of 2dB (7 steps).

To memorize these settings, press the MENU button again. The following will appear on the display:

_ E Q _ S E T_ (RDS side)

Setting pre-defined by the Manufacturer: all gains from 0dB.

Regional function

If this function is selected one of the possibilities which is the current setting will appear on the display:

_ R E G - O N _ (RDS side)

_ R E G - O F F (RDS side)

Use the << / >> buttons to change this function.

Setting pre-defined by the Manufacturer: REG-off

Cd information display function

If this function is selected, the following appears on the display:

_ C D - D I S P _ (RDS side)

Use the << / >> buttons to change this function. The current setting, which represents one of two possibilities, appears on the display:

_ _ T I M E _ _ (RDS side)

_ _N A M E _ (RDS side)

Setting pre-defined by the Manufacturer: Time

Cdc display function

This function can only be selected if a CD-Changer is connected. The following appears on the display:

C D C - D I S P_ (RDS side)

Use the << / >> buttons to change this function. The current setting, which represents one of two possibilities, appears on the display:

_ _ T I M E _ _ (RDS side)

_ _ C D - N R _ (RDS side)

Setting pre-defined by the Manufacturer: Time

Adjustment of tuner sensitivity

If this function is selected, one of the two possibilities, which is the current setting, appears on the display:

_ S E N S - D X (RDS side)

_ S E N S - L O (RDS side)

Use the << / >> buttons to change this function.

Setting pre-defined by the Manufacturer: SENS-DX

Speed volume control function

If this function is selected, one of the two possibilities, which is the current setting, will appear on the display:

_ S V C - O N _ (RDS side)

_ S V C - O F F _ (RDS side)

Use the << / >> buttons to change this function.

Setting pre-defined by the Manufacturer: SVC-OFF.

Cd naming function

This function can only be selected if a CD is inserted. The following appears on the display:

_ C D - N A M E _ (RDS side)

Use the << / >> buttons to activate this function. If the CD already has a name, then this appears on the display.

Example:

_ M A D O N N A _ (RDS side)

If the CD does not have a name, eight dashes appear:

_- - - - - - - -_ (RDS side)

If no memory is availble for a new name, the first name in the memory will be displayed.

To change the name or to give the new CD a name, press the <</>> button. Press << or >> again to select the position of the letter to be changed. Use the ^/v button to select/alter the letter. Press the MENU button again to memorize the name. The following appears on the display:

_ C D - N A M E (RDS side)

To cancel a CD name entered, press button 2 (CRL) for 2 seconds after having activated the CD-name function

O N E _ C L R (RDS side)

After which the CD-name mode appears again.

To cancel all the names, press preselection button 2 (CLR) for 8 seconds after having activated the CD-name function. An acoustic signal is produced between 2 and 8 seconds and the following appears on the display for 2 seconds:

A L L _ C L R (RDS side)

After which the CD-name mode appears again.

Telephone adjustment

In this function the customer can activate (setting 1 - 66) or deactivate (off setting) the telephone audio mute function

If the telephone mute function is activated, the user can select an initial telephone volume. The volume can be adjusted in 66 steps from VOL1 to VOL66 using the VOL+ and VOL - buttons

If this function is selected, the following appears on the display:

_ _ P H O N E _ (RDS side)

To activate this function, press the << / >> buttons. The display shows the last setting. The current setting is one of four possibilities:

_ _ _ O F F _ _ _ (RDS side)

_ _ P H O N E _ 2 _ (RDS side)

_ _ P H O N E _ 23 _ (RDS side)

Setting pre-defined by the Manufacturer: OFF.

Hicut adjustment

The customer can use this function to activate or deactivate the Hicut function (dynamic reduction of treble in accordance with RF signal).

If this function is activated, one of 2 possibiiltes is shown on the display, according to the current status:

_ H I C U T _ O N (RDS side)

_ N O _ H I C U T (RDS side)

To change the status, use the <</>> buttons.

Setting pre-defined by the Manufacturer: Hicut OFF.

Cd / cdc mode

The nrr with cd has a cd integrated with the radio and the possibiilty of 1 cd-changer (see mid level radio)

CDC A08 (CD- Changer for 10 discs)

The integrated CD player has the following functions:

• Motorized loading
• Motorized ejection

Activation of the cd / cdc mode

Activation of the CD mode:

• Insert a CD (if the radio is off, it comes on
• Press the SRC button until the CD mode is activated (only if a CD is inserted)

If a CD is inserted, the indications side of the display will show the 'CD symbol and the system will change source and activate the reproduction of the CD.

Activation of the CDC mode:

• Press the SRC button until the CDC mode is activated (only if a CDC with at least one CD is connected).

Display

If the CD or CDC mode is activated, the following will appear on the display:

Example of track information:

_ 0 5_ (information side)

Example of time information if this function has been selected from the menu:

_ _ 0 3:4 2 _ _ (RDS side)

Example of information for CD name function for CD mode if this function has been selected from the menu:

_ _ M A D O N N A (RDS side)

Example of CD number information for CDC mode if this function has been selected from the menu:

_ _ C D _ 0 4 _ (RDS side)

If the CD name mode is selected and no CD name has been memorized, the time information will appear on the display.

Integrated cd error

If the CD played in the integrated CD player is not legible, then the following message will appear on the display for 2 secs:

C D - E R R O R (RDS side)

After which:

• The CD will be ejected
• the source will be changed to the source listened to before the CD mode selection

Cd-changer error:

The following 4 errors are possible

If the changer is not inserted then the display will show

_ _ N O _ C D _ (RDS side)

Until the user changes source.

If the CD selected is not legible (CD not present in the selected position or CD inserted the wrong way)

After the CD number has been displayed, the display will show the following for 2 secs:

_ _ N O _ C D _ (RDS side)

After this period, the next CD is selected. After all the CDs have been selected and no CDs are available, 'NO CD will appear on the display until the user changes source.

If there is a reading error, the following will appear on the display for 2 secs:

C D - E R R O R (RDS side)

After this period the next CD is selected. After all the CDs have been selected and no CDs are available, 'NO CD will appear on the display until the user changes source.

The CD is a CD-ROM

The next CD is selected without any information on the display.

Track selection forward/backwards

In CD/CDC mode, press the ^ button to select the next track and the v button to select the track on the previous CD. Keep the button pressed for continuous track selection (>1 sec).

If the v button is pressed whilst the track is playing for more than 3 secs. (depending on the CD-Changer), the track will start again.

Track rewinding/forwarding (in cd mode only)

Press the << button to rewind and the >> button to forward the track selected. For the rapid function, keep the button pressed (5 secs).

If the name display mode is activated, the display mode moves onto the time display. Two seconds after the button is pressed for the last time, the display mode returns to the name display mode.

Cd selection (for cdc mode only)

Press the << button to select the previous CD and the >> button to select the next CD.

If the time display mode is activated (CDC display function) the display mode moves on to the CD number display mode. Two seconds after the button is last pressed the display mode returns to the time display mode.

Track rewinding/forwarding (only for cdc mode)

Press the << button for rewinding and the >> button for forwarding the track selected by 1 sec. Keep it pressed (5 secs) for the rapid function.

If the number display mode is activated (CDC display function) the display mode moves onto the time display. Two seconds after pressing the button, the display mode returns to the name display mode.

Scan function

Pressing the SRC button for a while (>1 sec) starts the search function.

Each CD track is played for 10 secs, whilst the track is reproduced, the display alternately shows the CDC selected (CD-NAME, time or number) and the word SCAN for 2 secs each:

_ _ S C A N _ _ (RDS side)

If the SCAN function is activated, the Repeat and Mix functions are deactivated.

The search order is:

CD Mode:

• From the track reproduced to the last track on the CD
• at the end of the CD it returns to the first track on the CD (and so on until the user interrupts the function)

CDC Mode:

• From the track reproduced to the last track on the CD
• Changing the CD and playing the CD from the beginning to the end (and so on for all the CDs in the changer and until the user interrupts the function)

Deactivation of CD search:

• Press the SRC button again to continue the reproduction of the track currently sought. This is also valid even if the equipment is switched off whilst the CD search is activated:
• Pressing the up or down button (if they are pressed simultaneously, the track will be omitted).
• Pressing a preselection button (mode 1-5 DC, mode 3-5 CDC)
• Pressing the SRC button
• Activating AUD
• If the traffic information function is activated and the station currently tuned into is broadcasing a traffic bulletin, the search will be aborted
• Activating the MENU

Tpm

Quickly (<1 sec) pressthe preselection button to activte the TPM function (Track Program Memory). If the function is activated, the following will appear on the indications side of the display for 2 secs:

_T P M_O N_ (RDS side)

If no track has been programmed, the TPM function cannot be activated.

After having played a track, the display will show 'TPM ON again for 2 seconds

To programme tracks, select the desired track and press preselection button 1 for = 1 sec., an auditory signal will be produced and the following will appear on the display:

_ S T O R E D _ (RDS side)

Repeat this procedure for all the tracks.

Note: only between 1 and 40 tracks can be memorized

To cancel a single TPM track, select the track by pressing the ^/V buttons whilst the TPM function is activated. Then press preselection button 2 (CLR) for 2 secs. The TPM function will be deactivated. An auditory signal is produced and the following appears on the display:

_ T R _ C L R _ (RDS side)

To cancel the TPM function for a CD, insert the desired CD and activate the TPM function. Then press preselection button 2 (CLR) for 4 secs. An auditory signal is produced after 2 secs and 4 secs, the TPM function is deactivated and the following appears on the display:

_ C D _ C L R _ (RDS side)

To cancel the TPM function for all CDs, activate the TPM function and then press button 2 (CLR) for 8 secs (TPM on or off). An auditory signal is produced after 2 secs, 4 secs and 8 secs and the TPM function is deactivated and the following appears on the display:

_ T P M _ C L R (RDS side)

Pause function

Press preselection button 3 to activate the pause mode for reproducing a CD or CDC. The following appears on the display:

_ _ - P A U S E _ _ (RDS side)

To resume reproduction, press preselection button 3 again.

The pause function is off after a change of source.

Repeat function

Press preselection button 4 to repeatedly play the track currently selected. The following information appears on the display for 2 secs:

_ R E P E A T _ (RDS side)

To deactivate the repeat function, press the preselection button 4 again. The following information appears on the display for 2 secs:

_ R E P _ O F F _ (Information side)

If the repeat function is activated, the Scan and Mix functions are deactivated.

After playing the track selected, 'REPEAT will appear again on the display for 2 seconds.

After a change of source, the repeat function is deactivated.

Setting pre-defined by the Manufacturer: REPEAT-OFF.

Mix function

Press preselection button 5 to activate the CD / CDC mix function. A new track is played and the following information appears on the display for 2 secs:

_ M I X - O N _ _ (RDS side)

To deactivate the mix function, press the preselection button 5 again. The following information appears on the display for 2 secs:

_ M I X - O F F _ (RDS side)

If the mix function is activated, all the tracks on the current disc are played in random order

After being played, the words 'MIX ON are displayed again for 2 seconds

If the mix function is activated, the repeat and scan functions are deactivated.

After a change of source, the mix function is deactivated.

Setting pre-defined by the Manufacturer: CD-MIX-OFF.

Telephone

Specifications

The radio is designed to receive audio signals from an outside source such as a cell phone and inputs to mute the source

Standards supplied:

• Motorola standard portable
• Telephone audio deactivtion: mute deactivation activated < 2V
• Telephone audio level: max 15.4Vampl. second 10.9Veff
• input circuit: differential amplifier

To prevent an earth current, the negative telephone terminal (-) (or the telephone ground) should be connected to the connectors input.

Operation

TELEPHONE AUDIO INPUT

As soon as the telephone mute function is activated, the radio audio is connected to the telephone input.

The telephone sound always arrives at a fixed volume which is adjusted in the Menu function; it can be altered during a telephone conversation. With the exception of the volume disc encoder, ON or TA, all the other buttons do not work whilst the telephone mute is activated.

The following appears on the display whilst the telephone mute is activated:

_ _ P H O N E _ (RDS side)

During the SCAN the outer display shows the latest information received (frequency, name, broadcaster)

If the telephone mute function is activated, all the functions are cancelled.

A traffic bulletin or a PTY31 message interrupts the telephone audio, however the traffic bulletin can be deactivated by pressing the TA button. The equipment remains on, if the switching off logic intervenes.

At the end of the conversation, the equipment switches off automatically.

Bose

If a BOSE amplifier is connected to the radio, different limitations exist:

• No specific setting is available for the equalizer
• The loudness if fixed according to the BOSE specifications
• The bass and treble function is reduced according to the BOSE specifications

If a BOSE amplifier is connected to the radio, the radio receives a 12 V supply at Pin A2 of the connector block

See 'BOSE paragraph

Remote control

Specifications

The remote control or controls on the steering wheel are buttons on the steering wheel connected directly to the radio via a resistive divider (see steering wheel).

The possible functions are listed in the table below:

Operation

SOURCE BUTTON

Press the source button briefly to access or exit the available sources.

Available sources: FM1, FM2, FMT, LW**, MW, CD*, CDC*, FM1,...

(*) only available if a CD is inserted or a CDC is connected

(**) only available in South American mode

The tuner message will only appear on the display if the customer changes the source from CD or CDC to FMI. The change from, for example FM1 to FM2, is shown on the Info side

SCAN BUTTON

Press the scan button briefly for the following actions:

- Tuner mode (FMI, FMII, FMT, LW, MW)

Press Scan+ or Scan- to scan the preselections

Scan+ button: 1,2,3,4,5,6

Scan- button: 6,5,4,3,2,1

- CD/CDC Mode

In this way the Scan buttons have the same functions as the ^ button (Scan +) and v button (Scan -) in the track selection function

RADIO ANTI-THEFT FUNCTION (VALID FOR THE TWO RADIO MODELS)

Specifications:

The radio is fitted with an anti-theft system by connecting the radio at the B-CAN network with the body computer connector.

When the radio is fitted on a 147 vehicle, it is connected to the body computer connector which asks for the radio code, this code, supplied by the radio manufacturer, is entered using the number keys, the NBC memorizes this code and checks it each time the radio is switched on.

When the radio is reconnected to an ALFA 147 CAN network at a later stage, the radio and the car compare both codes and displays (internal and external) displaying:

_ C A N C H E C K _ (RDS side)

If the codes are the same, the equipment will work.

If the codes are not the same, or the radio is connected for the first time, the equipment will notify the user to enter the code following the code insertion procedure.

During the code insertion procedure, 'CAN CHECK will appear on the outer display.

If the radio is connected to a vehicle without a 147 CAN network, it will not work.

Code insertion procedure

Type of code: 4 digits from '1111' to '6666' (64 = 1296 combinations). 0,7,8,9 are not used

After connecting the radio to an ALFA 147 for the first time, the following appears on the display:

_ _ C O D E _ _ (RDS side)

For 2 secs and then:

_ _- - - - _ _ (RDS side)

the first digit is selected by selecting the button corresponding to the station (1-6). After which digits 2 to 4 are selected in the same way.

If the four digits are not entered within 20 seconds, the word 'CED will appear again on the display for 2 seconds and then '----'. This type of time out is not considered as having entered the incorrect code.

The radio will start to play after the fourth digit is entered.

If an incorrect code is entered, the radio will produce an auditory signal; the following information will appear on the display:

_ _ C O D E _ _ (RDS side)

For 2 secs and then:

_ _ - - - - _ _ (RDS side)

advising the user to enter another code.

Each time the user enters an invalid code, the waiting time increases (1 min, 2 min, 4 min, 8 min, 16 min, 30 min, 1h, 2h, 4h, 8h, 16h, 24h) until a maximum time of 24h.

The waiting time is displayed as follows:

_ _ W A I T_ _ (RDS side)

After which it is possible to start the code insertion procedure again.

REPAIRABILITY

Radios fitted on the 147 which need repairing should be diagnosed by the workshop operator following the instructions in the diagnosis, and, if necessary, they should be removed from the dashboard using the special tools and sent to the Bosch service centre. as the network will be notified shortly.

COMPONENTS

Front / rear tweeter speakers

Specifications

The electrical specifications are:

• band 4000/20000 Hz
• resonance frequency 2000±300 Hz
• nominal impedance 8 OHM
• RMS power 20 W
• max power 30 W
• sensitivity 1W/1mt 85±2 db

Components

Location

• Front tweeters in door handle trim, rear tweeters in rear panel trim

Type

• The tweeter speaker is designed to enhance the treble and is made with a polycarbonate membrane, the moving coil support is made from copper + insulation and the magnetic assembly is in ferrite.

Connector pin out:

Pin 1 positive pole

Pin 2 negative pole

Front woofer speaker

Specifications

Its electrical specifiations are:

• band 80/8000 Hz
• resonance frequency 65±Hz
• nominal impedance 4 Ohm
• RSM power 20 W
• MAX power 40 W
• sensitivity 1W/1mt 90±2 db

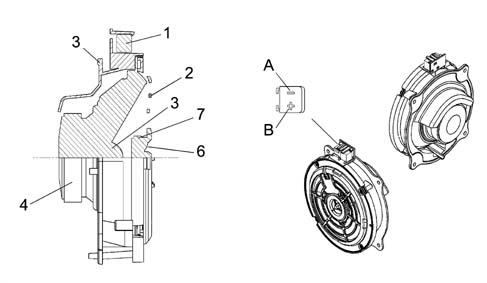

Components

Location

• The front woofers are fitted in the lower part of the doors

Type

• The woofer speaker is designed to enhance the bass and is made from a treated paper membrane, with a treated cloth centering device, a treated paper dust cover and an aluminium/paper moving coil support

Connector pin out

Pin 1 positive pole

Pin 2 negative pole

Rear woofer speaker

Specifications

Its electrical specifiations are:

• band 80/6300 Hz
• resonance frequency 65±Hz
• nominal impedance 4 Ohm
• RSM power 20 W
• MAX power 40 W
• sensitivity 1W/1mt 90±2 db

Components

Location

• The rear woofers are fitted in the rear panels, in the lower area

Type

• The woofer speaker is designed to enhance the bass and it is made from a treated paper membrane, a treated cloth centering device, a treated paper dust cover and an aluminium/paper moving coil support.

Connector pin out

Pin 1 positive pole

Pin 2 negative pole

Recommendations for fitting speakers

In order not to damage the speakers, some precautions should be taken when they are fitted and moved.

Recommended operations:

• Stack the speakers on one another when unpacking
• Place the speakers near metal parts In the case of very small parts, these could get into the gap and produce noises
• Twist the terminals once the electrical connection is fitted
• Rest on the speaker membrane during the fitting stages
• Perforate the speaker membrane with a screwdriver during the fitting stages
• Touch the cone (warning: it is one of the most delicate parts)
• Never let the speaker come into contact with solvents

Recommended operations:

• Always handle the speaker using the plastic structure without touching the membrane and other moving parts
• Discard speakers which been subject to impacts and visually inspect that there are no distortions
• Remove any protection before fitting them on the vehicle.

Aerial for model without preparation for radio telephone

Specifications

The electrical specifications of the support are:

• Operating voltage 10/16 V
• Operating temperature -30/to+80 ° C
• FM band 87.5-108 MHz
• AM band 0.15-1..7 Mhz

Components

The aerial is fitted on the rear part of the roof and consists of: aerial, aerial support with amplifier and an aerial lead.

1 - Lead for aerial amplifier

2 - Aerial lead

3 - Aerial base with amplifier

4 - Aerial

Aerial for model with preparation for radio telephone

Specifications

The electrical specifications of the support are:

• Operating voltage 10 - 16V
• Operating temperature from -30 to +80° C
• FM band from 87.5 to 108 MHz
• AM band from 0.15 to 1.17 MHz
• Radio phone section
• Telephone band section 1800 MHz (D.C.S.)
• Frequency band from 1719 to 1880 MHz
• Rated impedance 50 Ohm
• Telephone band section 900 MHz (GSM ETACS)
• Frequency band from 880 to 960 MHz
• Rated impedance 50 Ohm

Components

The aerial is fitted on the rear part of the roof and consists of: aerial, aerial support with amplifier, aerial lead and telephone lead.

1 - Lead for aerial amplifier

2 - Aerial lead

3 - Aerial base with amplifier

4 - Aerial

5 - Telephone lead

Cdc system

Specifications

Function

A special changer makes it possible to load up to 10 discs which are then selected using the radio controls.

The changer only works if it contains at least one CD: the CDs should be inserted correctly and the flap should be properly closed.

Components

Location

The cd-changer is fitted in the luggage compartment, in the area of the right wheel arch

It is connected to the radio via a special lead

For any repairs to the CDC, follow the same procedure as for the radio tbd

Cd changer lead

Specifications

Connector 1 (20 pin) ISO radio side:

• Pin 13 asci bus CDC>RO
• Pin 14 asci bus RO<CDC
• Pin 15+12 permanent
• Pin 16+12Vswitched
• Pin 17digital earth
• Pin 18audio earth
• Pin 19 CDC left audio
• Pin 20 CDC right audio

Connector 2 (13 pin) multipolar rapid attachment CDC side:

• Pin 3 +12 permanent
• Pin 4 +12Vswitched
• Pin 6 audio earth
• Pin 8 CDC right audio
• Pin 10 asci bus CDC>RO
• Pin 12 CDC left audio
• Pin 13 asci bus RO<CDC
• Connection to outer screening
• Digital earth coming from the radio
• Pin 2 connector screening
• Cable screening

Sub-woofer box with integrated amplifier

See 'BOSE

BOSE system

BOSE SYSETM

GLOSSARY

Tweeter

Speaker for the reproduction of high frequency sounds

Mid-range

Speaker for the reproduction of mid frequency sounds (neither high nor low).

Wide-range

Speaker for the reproduction of sounds in a wide frequency range

Woofer

Speaker for the reproduction of very low frequency sounds: prevents the onset of vibrations caused by these frequencies.

SPECIFICATIONS:

A sophisticated 'Bose' HI FI system with special speakers and an outside amplifier is available on request.

Operation

The system has been developed ad hoc for the vehicle: the acoustic properties of the passenger compartment have been carefully studied so that the amplifier and the speakers are perfectly suited to the vehicle: the sound is excellent throughout the passenger compartment.

In addition, the system blends in perfectly with the aesthetics of the vehicle, without taking up extra space.

The system is installed in the vehicle directly in production, without any operations afterwards: the cables are incorporated in the vehicle wiring.

It is therefore advisable not to modify the original system in any way (e.g. graphic equalizers, additional sub-woofers, extra amplifiers).

In addition, the system components (amplifier and speakers) should not be repaired individually, but can only be replaced with new components.

Performance

The Bose system guarantees the highest quality sound, with crystal clear high notes and deep, rich low tones.

With the following specifications:

• Volume compensation, through the 'active' Bose equalizing
• High/low tone control, from + 6dB to - 12 dB
• Fader control, through the Bose 'spatial' fader

Optimum frequency response, according to graphics given below:

• Output distorsion < 2%, with all controls at maximum
• Dynamic output range > 112 dB
• Cassette reproduction interference reduction, with Dolby type B NR

COMPOSITION

Unlike the system fitted as standard, the Bose systme includes:

• front/rear speakers coaxial type specifications
• rear woofer speaker
• high power amplifier

The other components (radio, aerial, etc.) are the same as those on the system fitted as standard.

Location

The diagram below illustrates the location of the components.

1 - Radio

2 - Front door speakers

3 - Rear speakers

4 - Rear woofer speaker

5 - Amplifier

COMPONENT DESCRIPTION

FRONT SPEAKERS

Specifcations

The speaker for the HI FI systems which are matched with BOSE systems have coaxial specifications, i.e. a single container houses a mid-range and a tweeter. The speaker has one single supply connector.

Composition

Location

The front speakers are located in the lower partof the doors.

Type

The high fidelity BOSE speakers are composed of a magnetic ferrite core for both the mide range speakers and the tweeter, in addition, the mid range speakers have a treated paper membrane and textile material. The moving coil support is made from aluminium.

The tweeters have a plastic membrane and a support for fitting co-axially on the mid- range.

1 - Two way audio template

2 - Tweeter support

3 - Drip tray

4 - Midrange magnetic assembly

5 - Midrange

6 - Tweeter

7 - Tweeter magnetic assembly

A - Negative

B - Positive

REAR SPEAKERS

Specifcations

See front speakers.

Location

The rear speakers are located in the rear panel.

REAR WOOFER SPEAKER

Specifcations

This is a high fidelity woofer speaker with a special bass box incorporated which diffuses the sound in an optimum manner preventing vibrations and interference.

Composition

Location

It is located on the left side of the rear parcel shelf

AMPLIFIER

Specifcations

It is a 5 channel, hifi amplifier with 200W power, 4 analogue amplifiers and a 100W class D impulse amplifier.

The amplifier has 4 stereo channels for the speakers in the front and rear doors and a mono channel for the rear woofer.

The amplifier is equipped with a built in equalizer and compressor.

The high resolution equalizer is specially calibrated in the vehicle passenger compartment because it takes into account the vehicle absorption and reflection surfaces (seats, windows, dashboard, door panels) and the position of the speakers and the passengers.

The 'two stage' technology allows high power with compact dimensions and reduced heat emission compared with a traditional linear amplifier.

The amplifier is fitted with:

• an integrated signal processor, which actively adapts the bass;
• an active equalizer, with automatic electronic balancing of all outputs
• an integrated compressor which minimizes distortions

Composition

Location

It is located in the rear compartment on the left hand side.

from 02/04 · BOSE system

Starting from January 2004, a new 5000 series amplifier will be fitted with the same specifications as the previous one but with more advanced technological solutions.

AMPLIFIER CONNECTION PIN OUT

connector A

connector B
