Vacuum air circuit

Description 1048A

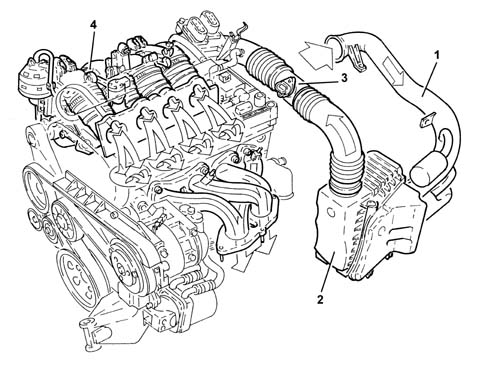

1.6 TS · 103 CV

OPERATION

On this version the air filter casing contains a Venturi which has the function of speeding up the air flow in order to ensure optimum cylinder filling (volumetric efficiency).

1- Cold air intake with resonators

2 - Complete air filter

3 - Air flow meter Characteristic of working principle 1056 PETROL INJECTION SYSTEM

4 - Intake manifold Characteristic of working principle 1072 INLET AND EXHAUST MANIFOLDS

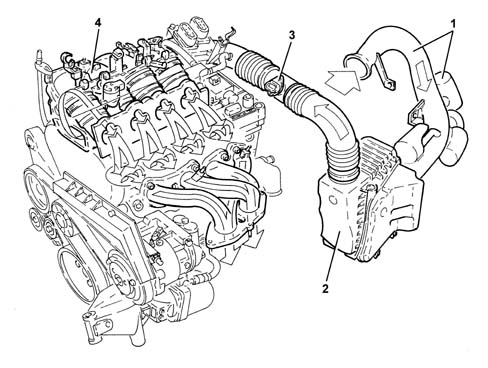

1.6 TS · 120 CV

OPERATION

On this version the air filter casing contains a Venturi which has the function of speeding up the flow of air in order to ensure optimum filling of the cylinders (volumetric efficiency).

1- Cold air intake with resonator

2 - Complete air filter

3 - Air flow meter Characteristic of working principle 1056 PETROL INJECTION SYSTEM

4 - Intake manifold Characteristic of working principle 1072 INLET AND EXHAUST MANIFOLDS

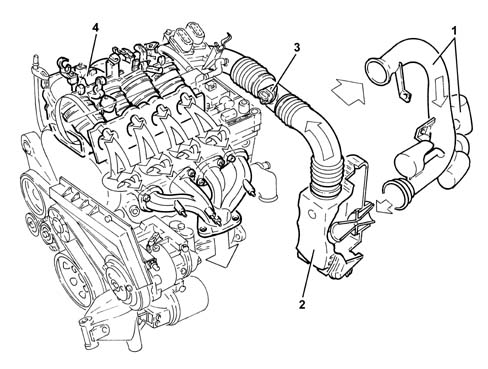

2.0 TS

OPERATION

On this version the air filter casing contains a Venturi which has the function of speeding up the flow of air in order to ensure optimum filling of the cylinders (volumetric efficiency).

1- Cold air intake with resonator

2 - Complete air filter

3 - Air flow meter Characteristic of working principle 1056 PETROL INJECTION SYSTEM

4 - Intake manifold Characteristic of working principle 1072 INLET AND EXHAUST MANIFOLDS
