EngineCrank case and components

Crank case and components

Description 1012A

1.6 TS

CONSTRUCTION FEATURES

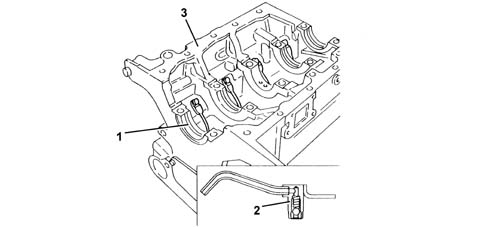

Crank case and components

1 - Bearing supports

2 - Jets

3 - Cylinder block/crankcase

2.0 TS

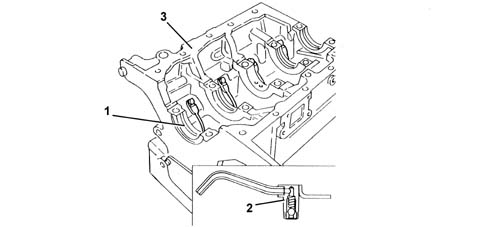

Crank case and components

1 - Bearing supports

2 - Jets

3 - Cylinder block/crankcase
