3-door version
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Vehicle dimensions › 3-door version
Specifications3-door version

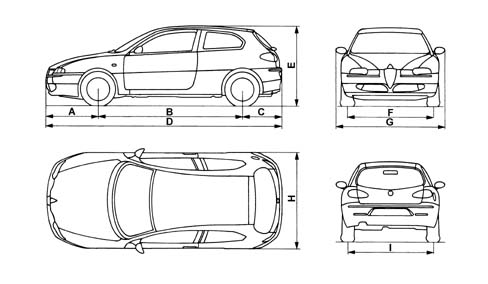

3-DOOR VERSION
The height refers to an unladen vehicle. Luggage compartment capacity (VDA stanadards): 280 dm3
| 1.6 T. SPARK 105 CV | 1.6 T. SPARK 120 CV | 2.0 T. SPARK | 1.9 JTD | |
|---|---|---|---|---|
| A (mm) | 921 | 921 | 921 | 921 |
| B (mm) | 2546 | 2546 | 2546 | 2546 |
| C (mm) | 703 | 703 | 703 | 703 |
| D (mm) | 4170 | 4170 | 4170 | 4170 |
| E (mm) | 1442 (a) - (b) | 1442 (a) - (b) | 1421 (c) | 1442 (a) - (b) |
| F (mm) | 1518 (a) 1509 (b) | 1518 (a) 1509 (b) | 1509 (c) | 1518 (a) 1509 (b) |
| G (mm) | 1892 | 1892 | 1892 | 1892 |
| H (mm) | 1729 | 1729 | 1729 | 1729 |
| I (mm) | 1502 (a) 1494 (b) | 1502 (a) 1494 (b) | 1494 (c) | 1502 (a) 1494 (b) |
(a) - 185/65 R15' tyre
(b) - 195/60 R15' tyre
(c) - 205/55 R16' tyre
The height refers to an unladen vehicle. Luggage compartment capacity (VDA stanadards): 280 dm3
| 1.6 T. SPARK 105 CV | 1.6 T. SPARK 120 CV | 2.0 T. SPARK | 1.9 JTD | |
|---|---|---|---|---|
| A (mm) | 921 | 921 | 921 | 921 |
| B (mm) | 2546 | 2546 | 2546 | 2546 |
| C (mm) | 703 | 703 | 703 | 703 |
| D (mm) | 4170 | 4170 | 4170 | 4170 |
| E (mm) | 1442 (a) - (b) | 1442 (a) - (b) | 1421 (c) | 1442 (a) - (b) |
| F (mm) | 1518 (a) 1509 (b) | 1518 (a) 1509 (b) | 1509 (c) | 1518 (a) 1509 (b) |
| G (mm) | 1892 | 1892 | 1892 | 1892 |
| H (mm) | 1729 | 1729 | 1729 | 1729 |
| I (mm) | 1502 (a) 1494 (b) | 1502 (a) 1494 (b) | 1494 (c) | 1502 (a) 1494 (b) |
(a) - 185/65 R15' tyre
(b) - 195/60 R15' tyre
(c) - 205/55 R16' tyre
