Rear window eliminate leaks

Operation 7035B04 · Rear window

After ascertaining the lcoation of the leak, remove one of the internal components covering the rear window edge.

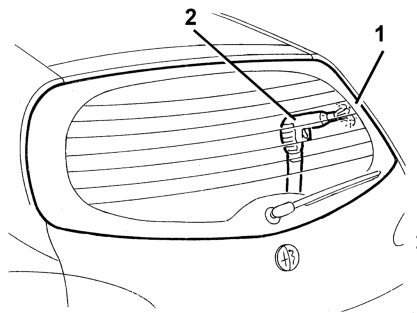

1 Wet with soapy water the external area where the leak occurs.

2 Blow compressed air from inside and identify the point of the leak.

If the leak is small, seal the relevant part from the inside and wait for the sealant to dry. Then repeat the test.

If the leak is large, Refer to op.. 7035B12 Tail-gate window glass (bonded type) - r r, includes cleaning glass edges and housing on tail-gate

Refit the removed parts.
