Windscreen eliminate leaks

Operation 7035A04 · Windscreen

After ascertaining the lcoation of the leak, remove one of the internal components covering the edge of the windscreen.

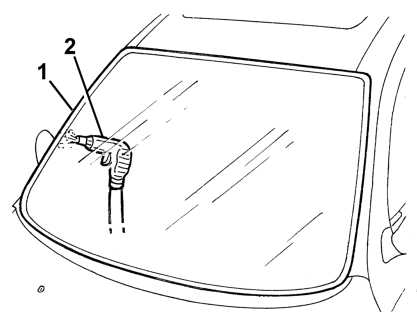

1 Wet with soapy water the external area where the leak occurs.

2 Blow compressed air from inside and identify the point of the leak.

If the leak is small, seal the relevant part from the inside and wait for the sealant to dry. Then repeat the test.

If the leak is large, Refer to op.. 7035A14 Windscreen glass (bonded type) - r+r - includes cleaning edge of glass and body housing .

Refit the removed parts.
